SQUARE D

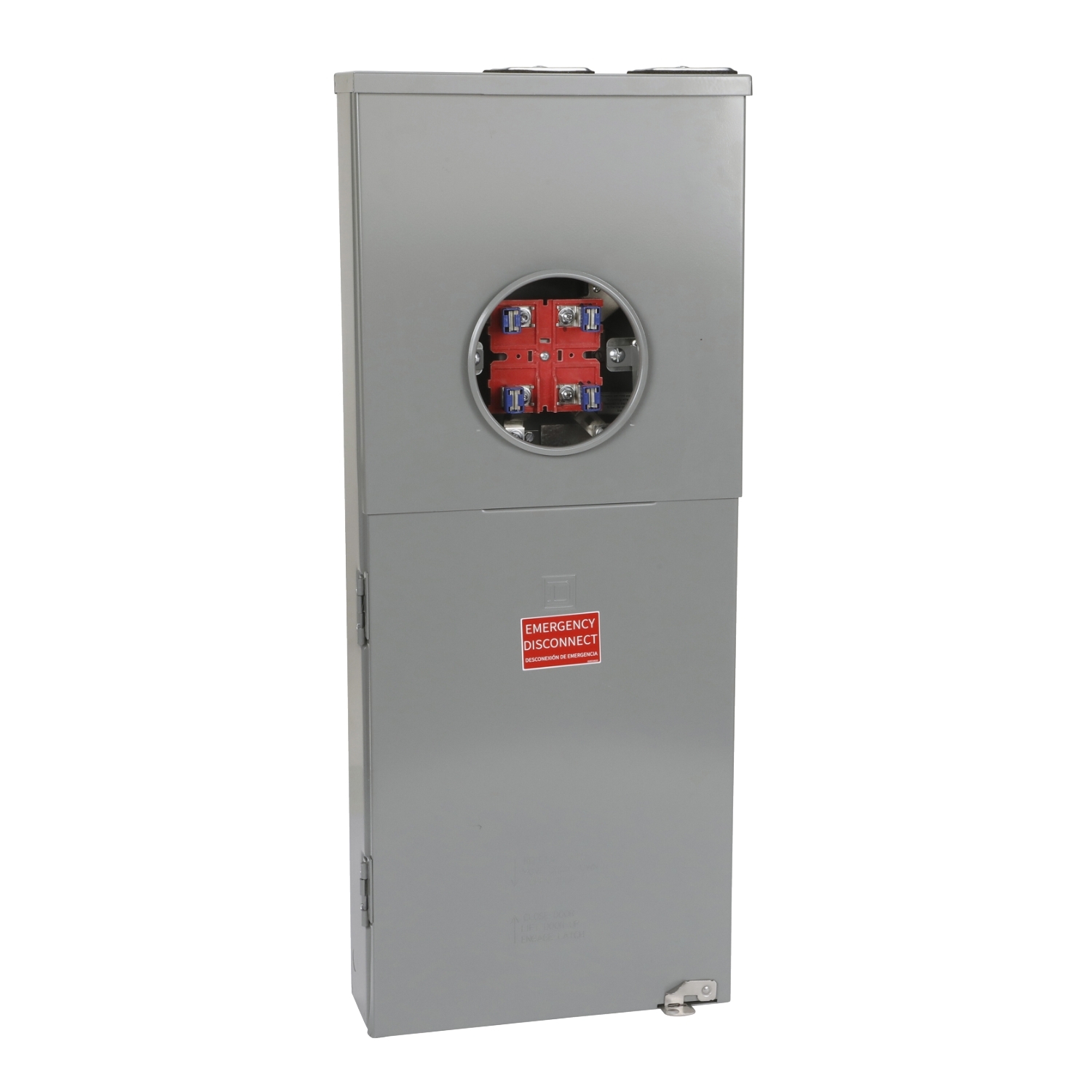

SO2040M200S Homeline, All-in-one CSED, Ringed Socket, No Bypass, OH, 200 Amp, 10 kA, 20 Spaces

MFR:
Schneider Electric
MFR #:
SO2040M200S
UPC:
785901328032
Item #:
221743

Availability

Location Available Qty
Available Available to Order
$1,330.65 each

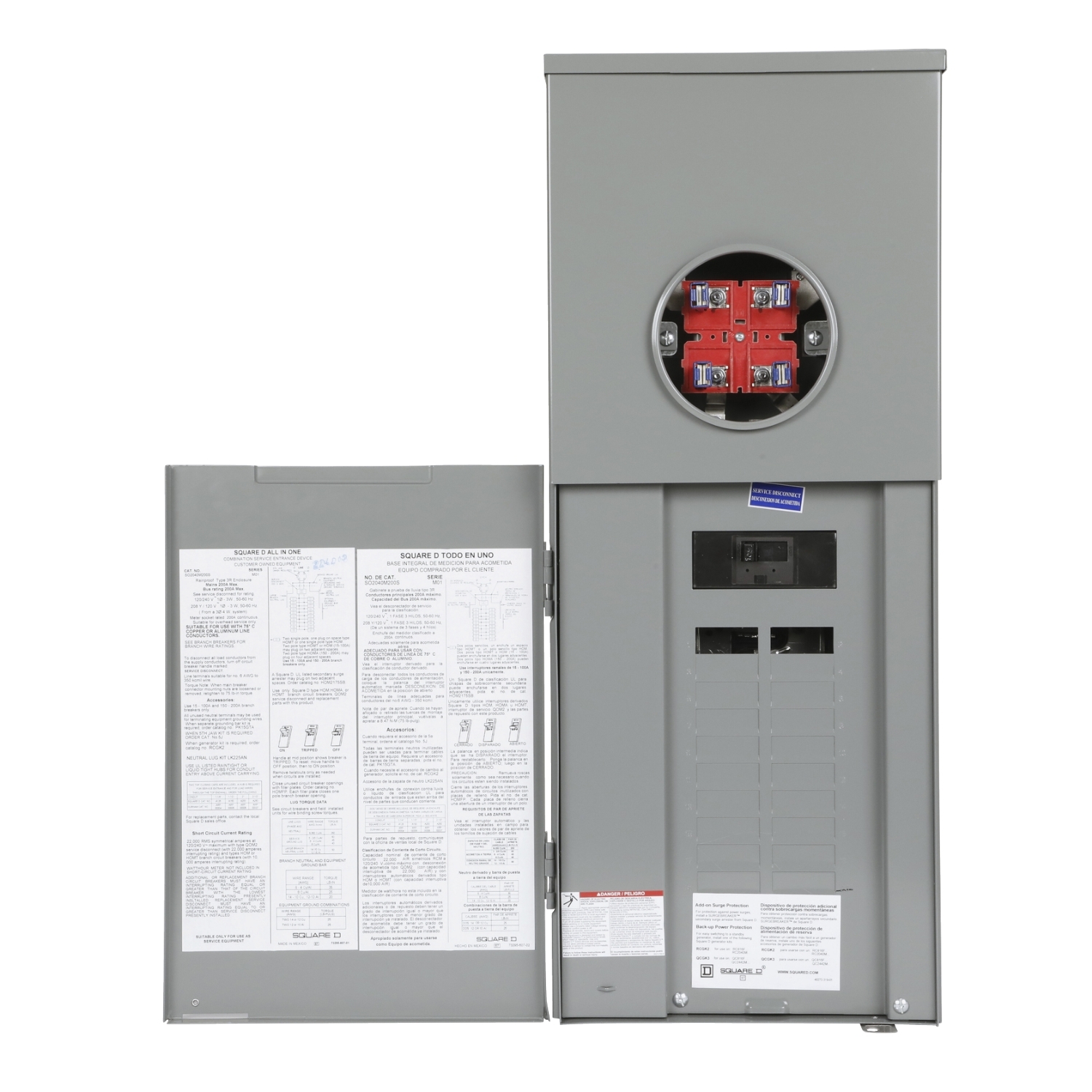

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service. The service disconnect has a QOM2200VH with a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 40.93 inches tall, 18.35 inches wide and 5.32 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.

Manuals and Documentation
Catalog Number SO2040M200S
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Bypass Type No Bypass
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361859&lang=en-us
UPC 785901328032
GTIN 00785901328032
Width 18.35
Width UOM Inch
Height 40.93
Height UOM Inch
Depth 5.32 IN
