BURNDY

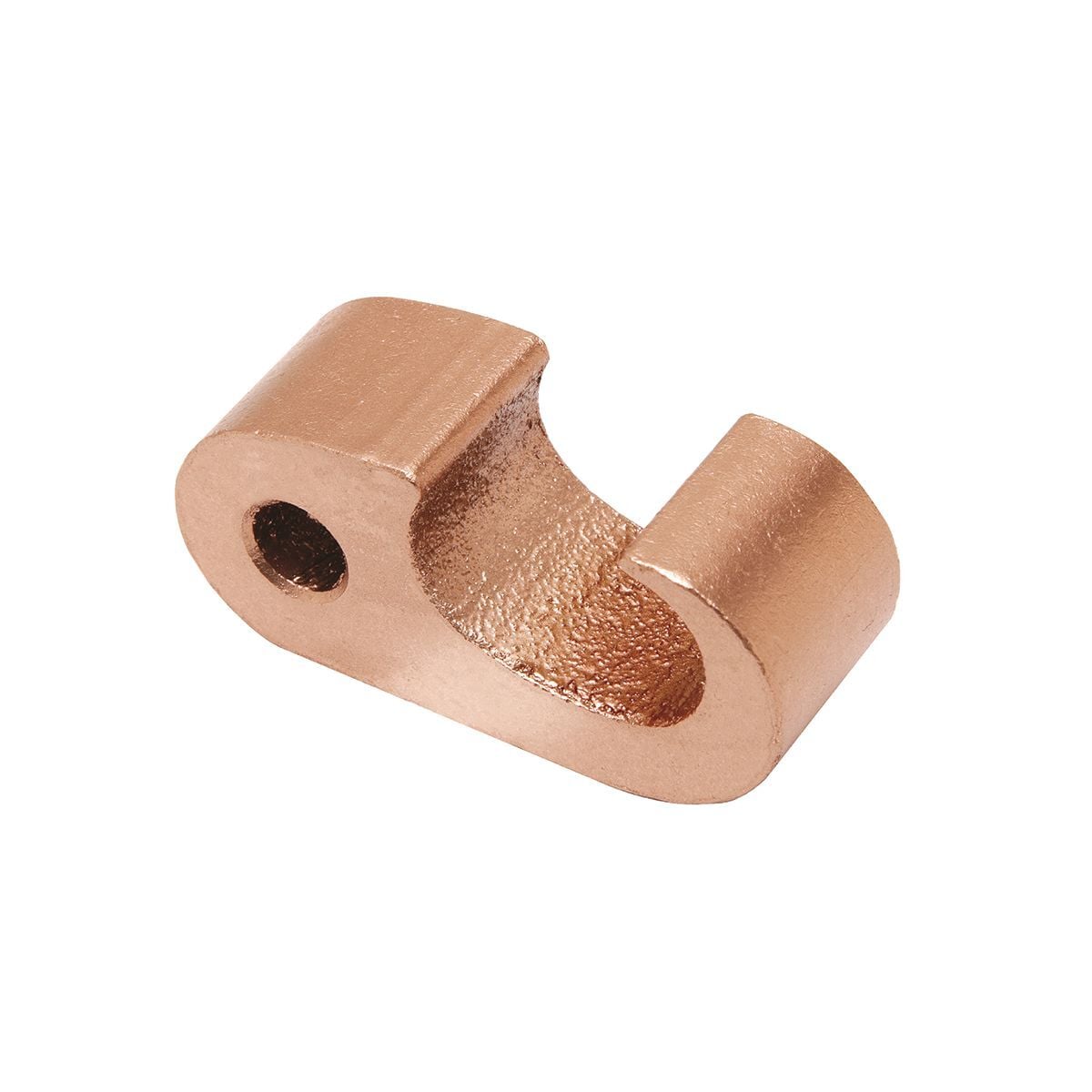

YGHP29C29 Type YGHP-C Mechanical Compression Ground Rod Connector, Figure 6 Shape, 1/0 AWG to 250 kcmil Main/Run, 2/0 AWG to 250 kcmil Tap, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YGHP29C29
UPC:
781810220948
Item #:
21982

Availability

Location Available Qty
Available 2 ea
$94.45 each
Manuals and Documentation
Catalog Number YGHP29C29
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application For Direct Burial In Earth And Concrete
Material Copper
Special Features Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 1/2 - 5/8 IN, Die Index: 997 Element A, Rebar Size: #3 - #4, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U997P Polarized Die, (1), Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (run - Range): 1/0 AWG - 250 KCMIL, Conductor Size (tap Range): 3/0 AWG - 250 KCMIL, Shape: 6
Standard Direct Burial
UPC 781810220948
GTIN 00781810220948
Item Type Taps
Cross Reference Products GGC-4
