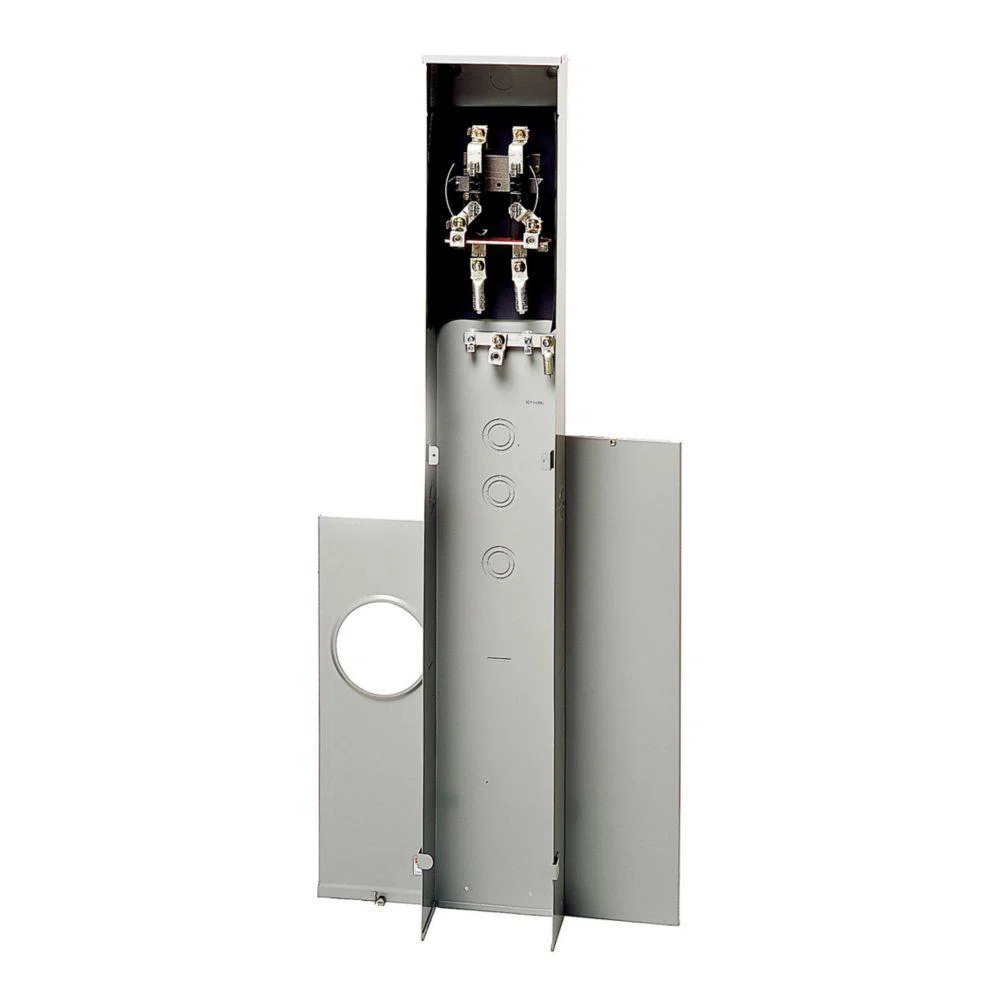

1006388CH 1-Socket 3-Wire Horn bypass Meter Pedestal, 600 V, 200 A, 1 Phase
- MFR:
- Eaton
- MFR #:
- 1006388CH
- UPC:
- 782113685199
- Item #:
- 2193
1006388CH 1-Socket 3-Wire Horn bypass Meter Pedestal, 600 V, 200 A, 1 Phase
- MFR #:
- 1006388CH
- UPC:
- 782113685199
- Item #:
- 2193
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,082.79
each
Eaton is your one-stop shop for the widest range of residential and light commercial electric meter sockets in the industry. These single-socket surface- or flush-mount outdoor enclosures come in two styles, allowing for both easy, cost-saving installation, and for the use of BR- or CH-type branch breakers. The one-piece, die-run electric meter socket enclosures eliminate tampering and extend product life. These are utility approved and can be used for residential meter socket installations, rural service entrances, mobile homes, or for temporary power on construction sites.
Manuals and Documentation
| Manufacturer Part Number | 1006388CH |
| Brand | Cutler-Hammer |
| Manufacturer | Eaton |
| UPC | 782113685199 |
| Country Of Origin | US |
| Amperage Rating | 200 A |
| Dimensions | 4.93 in L x 8.96 in W x 61 in H |
| Type | 1-Socket 3-Wire Horn bypass |
| Voltage Rating | 600 V |
| Cover Type | Ringless |
| Alternative Part Number | 7379624 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 year |
| Standards Approvals | UL Listed |
| Application | Residential Buildings and Facilities, Power Distribution Applications |
| Feed Type | Bottom/Underground |
| Hub Type | Solid Top |
| Number Of Jaws | 4 |
| Phase | 1 |
| Terminal Type | Line/Load |
| Wire Size | 2/0 to 4/0 AWG, 6 AWG to 250 kcmil |
