SQUARE D

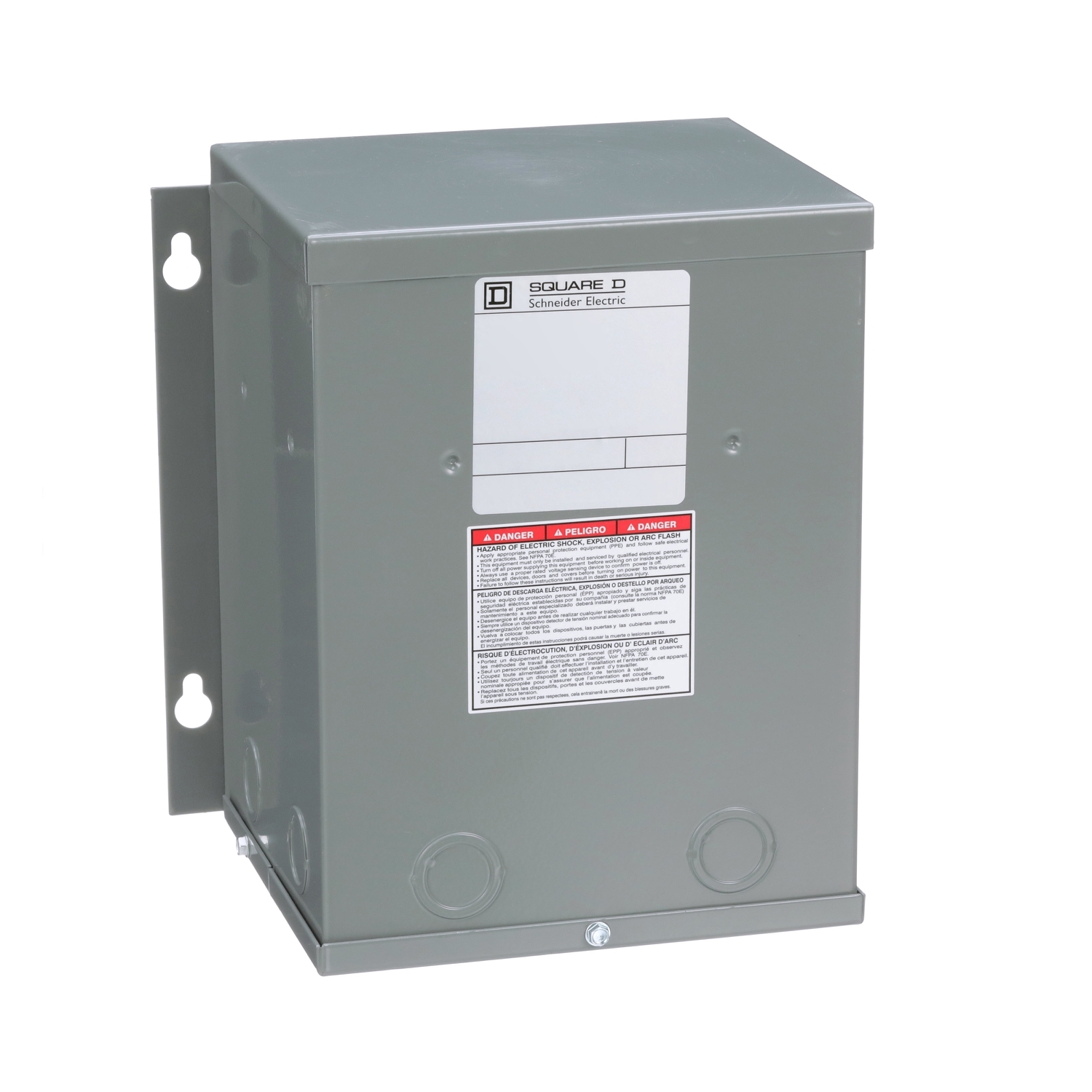

2S82F Dry Sealed Buck and Boost Transformer, 240/480 V AC Primary, 24/48 VAC Secondary, 2 kVA, 60 Hz, 1 Phase

MFR:
Schneider Electric
MFR #:
2S82F
UPC:
785901993506
Item #:
21898

Availability

Location Available Qty
Available Available to Order
$2,881.07 each

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 240 x 480 V and a secondary voltage of 24/48 V. This product have a temperature rise of 115 C. Dimensions for this product are 243 mm (H), 220 mm (W), 167 mm(D), and a weight of 39.1 lb(US).

Manuals and Documentation
Catalog Number 2S82F
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Primary Voltage 240 x 480 V
Secondary Voltage 24/48 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455635&lang=en-us
UPC 785901993506
GTIN 00785901993506
Item Type Buck and Boost Transformer
