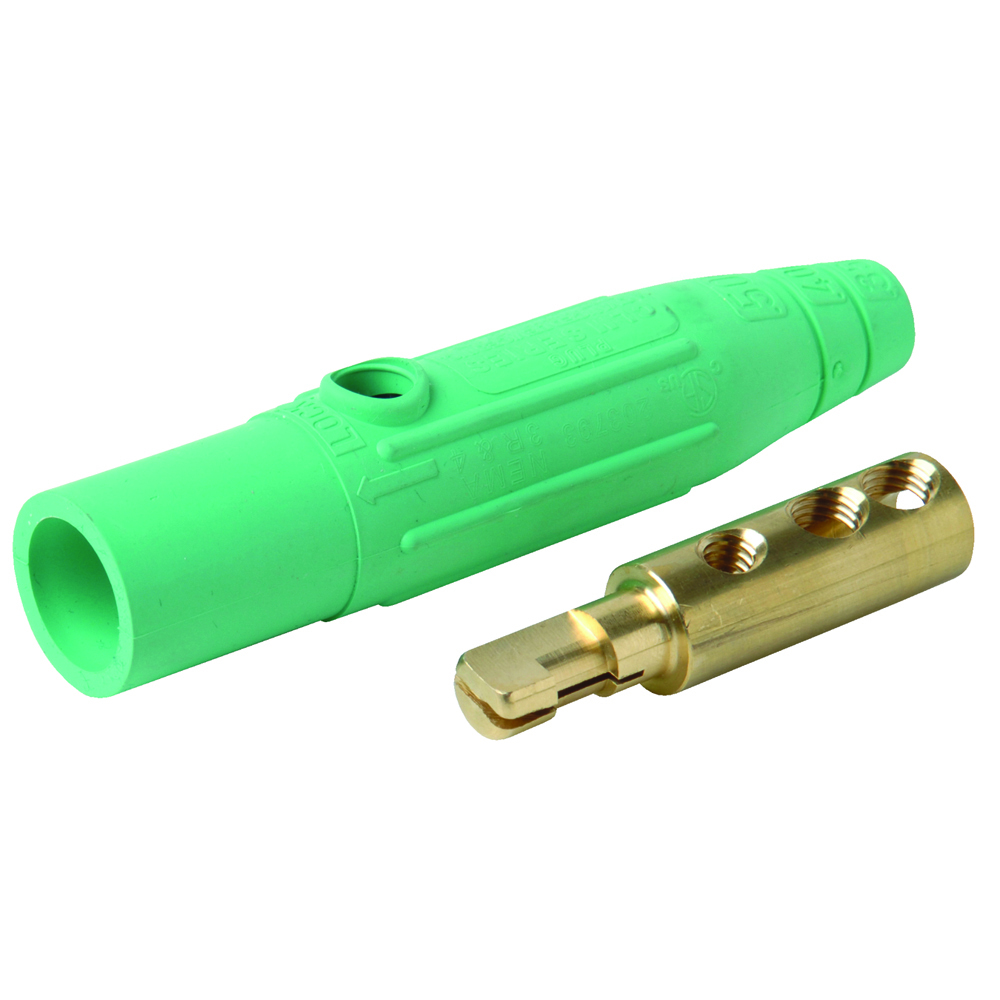

PSM2MG Series 15 In-Line Connectors
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- PSM2MG
- UPC:
- 785007308891
- Item #:
- 218480
PSM2MG Series 15 In-Line Connectors
- MFR #:
- PSM2MG
- UPC:
- 785007308891
- Item #:
- 218480
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$47.48
each
150A 600V MALE CAM TYPE PLUG
| Catalog Number | PSM2MG |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 150 |
| Application | Commercial/Industrial |
| Color | Green |
| Material | Thermoplastic Elastomer |
| Number of Poles | 1 |
| Special Features | Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying." |
| Standard | UL, cCSAus |
| UPC | 785007308891 |
| GTIN | 00785007308891 |
| Item Type | Cam-Type Series 15 In-Line Connector Male |
| Size | 4.3 |
| Environmental Conditions | Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4 |
| Voltage Rating | 600 |
| Wire Size | 8 - 2 AWG |
