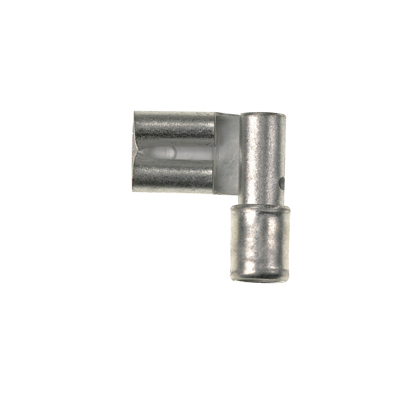

The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.25 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.57 (14.5 mm) long and 0.3 (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.
Manuals and Documentation
- Catalog Number
- DR14-250-C
- Manufacturer
- Panduit
- Brand
- Panduit
- Country of Origin
- Mexico
- Made in USA
- No
- Connection
- Standard
- Finish
- Tin-Plated
- Insulation
- Non-Insulated
- Material
- Brass
- Standard
- UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
- UPC
- 074983827411
- GTIN
- 00074983827411
- Item Type
- Disconnect
- Temperature Rating
- 302 Degrees Fahrenheit (150 Degrees Celsius)
- Voltage Rating
- 600
- Wire Size
- #14 AWG
