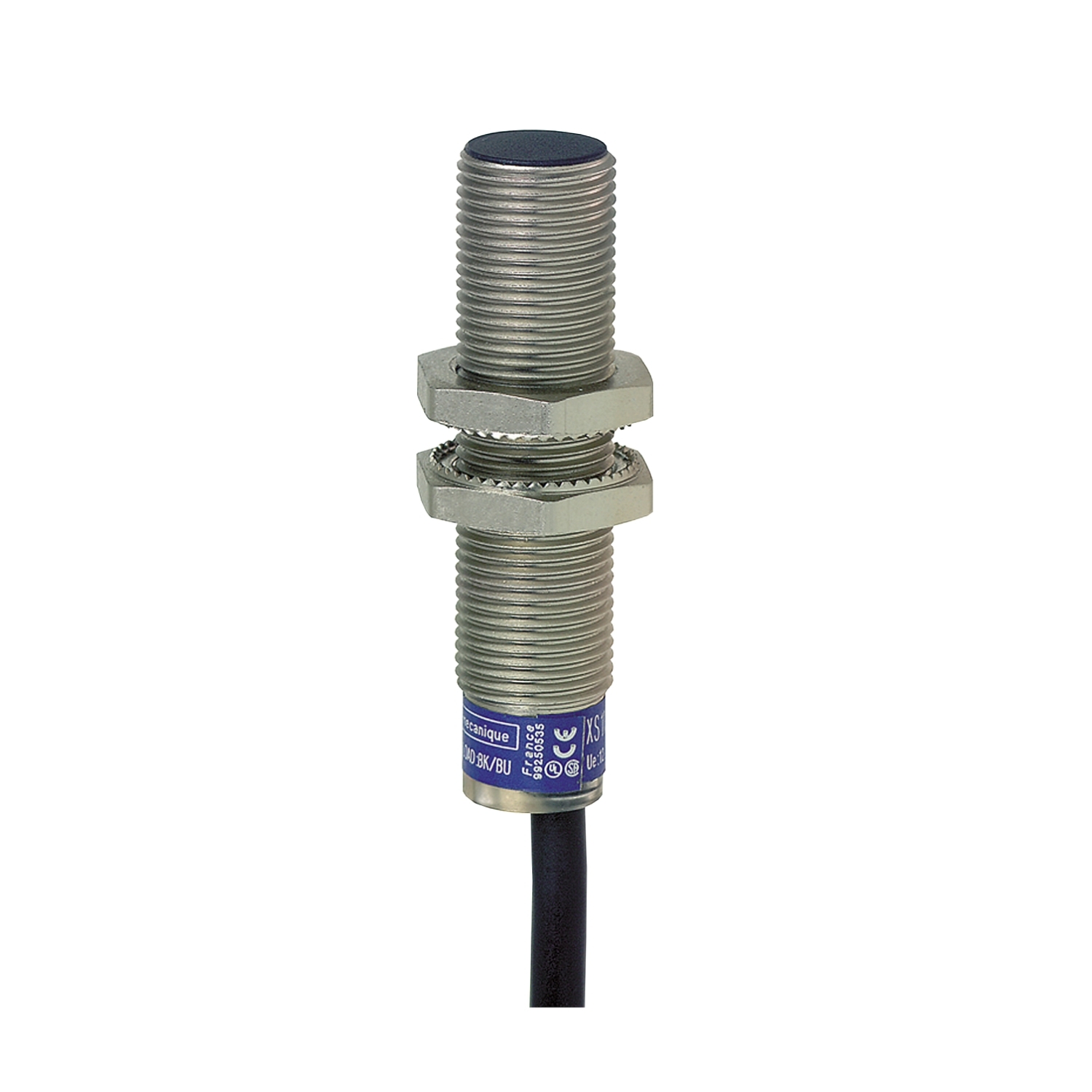

XS1M12AB120 OsiSense XS1 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Analog Output, 1NC Contact, 12 to 24 V DC
- MFR:
- Telemecanique Sensors
- MFR #:
- XS1M12AB120
- UPC:
- 785901721529
- Item #:
- 216188
XS1M12AB120 OsiSense XS1 Series Cylindrical Fixed Form Proximity Sensor, Inductive, Analog Output, 1NC Contact, 12 to 24 V DC
- MFR #:
- XS1M12AB120
- UPC:
- 785901721529
- Item #:
- 216188
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$342.28
each
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. This solid-state sensor is designed for position, displacement and deformation control/monitoring. The operating principle of this sensor is that of a damped oscillator . The degree of damping will depend on the distance of an object from the sensing face. The sensor will sense the distance and produce an output current with a value directly proportional to this distance. It is a sensor with an 4mA to 20mA analogue output signal . Two-wire, DC supply, 12V to 24V. It features a metal case and a 2m long cable. It has a sensing distance of 2mm.
Manuals and Documentation
| Catalog Number | XS1M12AB120 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | - |
| Connector | Cable |
| Enclosure | Nickel Plated Brass |
| Material | Metal |
| Mounting | Flush |
| Sensing Range | > 0...0.1 IN (> 0...2.5 MM) |
| Special Features | IP67 CONFORMING TO IEC 60529,CABLE |
| Standard | IP67 conforming to IEC 60529;CE |
| Supply Voltage | 12...24 V DC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=866306&lang=en-us |
| UPC | 785901721529 |
| GTIN | 03389110154207 |
| Item Type | Inductive proximity sensor;Cylindrical M12 |
| Operating Temperature | -25-70 A Degrees C |
