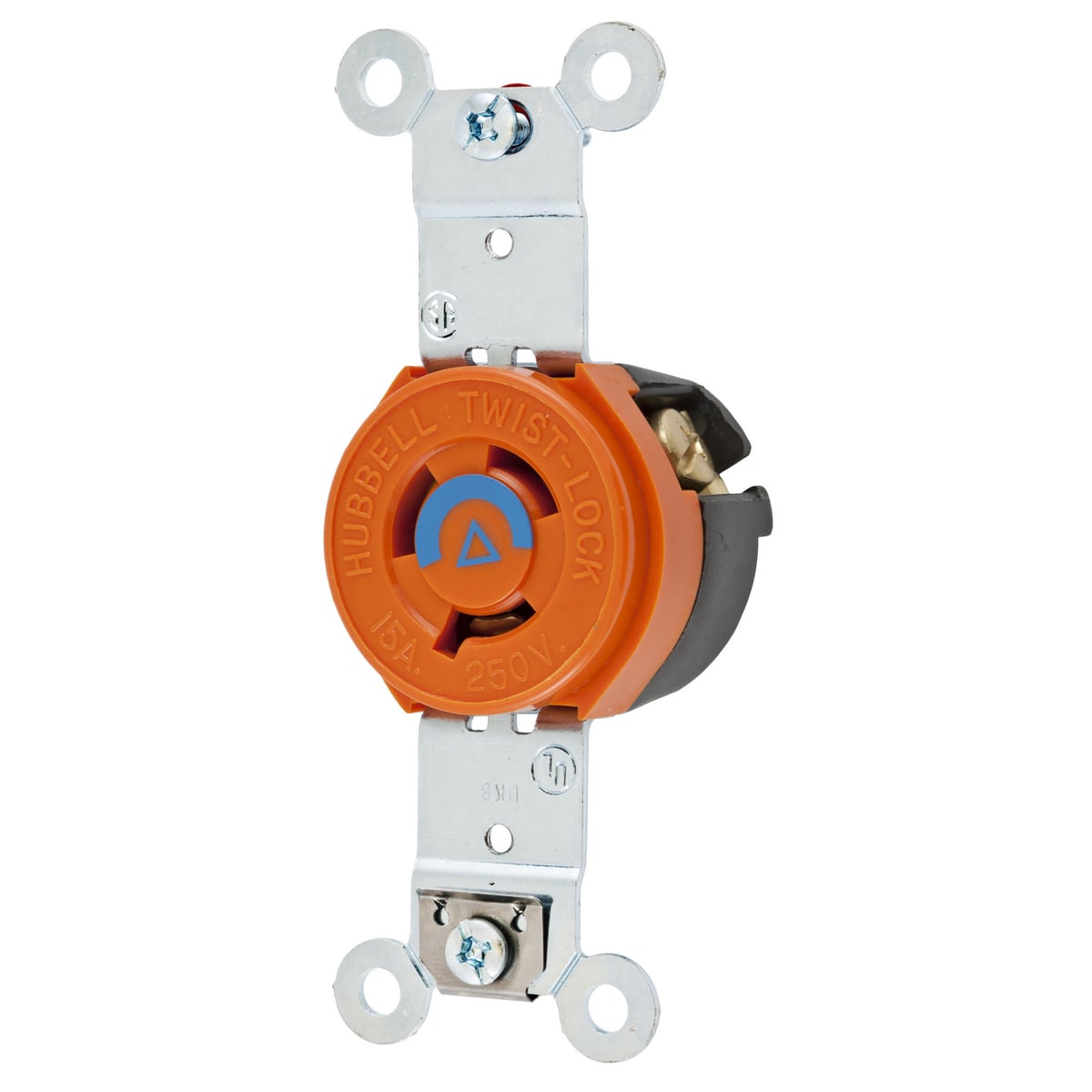

IG4560 1-Phase Flush Grounding Heavy Duty Isolated Ground Single Standard Screw Mount Locking Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Orange
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- IG4560
- UPC:
- 783585777993
- Item #:
- 214013
IG4560 1-Phase Flush Grounding Heavy Duty Isolated Ground Single Standard Screw Mount Locking Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Orange
- MFR #:
- IG4560
- UPC:
- 783585777993
- Item #:
- 214013
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$66.05
each
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than everHubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
Manuals and Documentation
| Catalog Number | IG4560 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Heavy Duty Industrial |
| Color | Orange |
| Connection | Screw Terminals |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire Grounding |
| Phase | 1 |
| Special Features | Isolated Ground |
| Standard | Listed to UL 498 |
| UPC | 783585777993 |
| GTIN | 00783585777993 |
| Item Type | Single Receptacle |
| Size | 3.28 in x 1.53 in x 1.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 250 |
| Wattage | 3,750 W |
| Wire Size | #18 AWG to #10 AWG |
