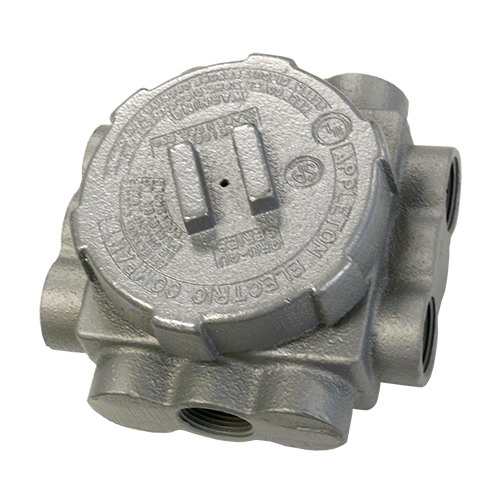

UNILETS; Conduit Outlet Box; 4.880 Inch Width x 3 Inch Depth x 4.880 Inch Height, Malleable Iron, 25 Cubic-Inch
- MFR:
- Appleton Electric
- MFR #:
- GRUJ-3P
- UPC:
- 781381445856
- Item #:
- 212788
UNILETS; Conduit Outlet Box; 4.880 Inch Width x 3 Inch Depth x 4.880 Inch Height, Malleable Iron, 25 Cubic-Inch
- MFR #:
- GRUJ-3P
- UPC:
- 781381445856
- Item #:
- 212788
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$401.42
each
UNILETS GRUJ Outlet Box, Number Of Outlet: 11, Material: Malleable Iron, Size: 3/4 - 1 IN, Cable Entry: (2) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (1) 3/4 IN Hub At Bottom, (4) 1 IN Hub At Back, Cubic Capacity: 25 CU-IN, Knockout
Manuals and Documentation
Features
- Size: 4.880 Inch Width x 3 Inch Depth x 4.880 Inch Height
| Catalog Number | GRUJ-3P |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (2) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (1) 3/4 IN Hub At Bottom, (4) 1 IN Hub At Back |
| Cubic Capacity | 25 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with cover; General purpose wiring; Union hubs permit easy wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance; Furnished with close-up plugs for all but three 3/4 IN hubs |
| Standard | UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381445856 |
| GTIN | 00781381445856 |
| Item Type | GRUJ Outlet Box |
| Length | 6.0000 |
| Length UOM | Inch |
| Width | 7.0000 |
| Width UOM | Inch |
| Height | 4.0000 |
| Height UOM | Inch |
| Weight | 6.220 |
| Weight UOM | Pounds |
| Size | 3/4 - 1 |
