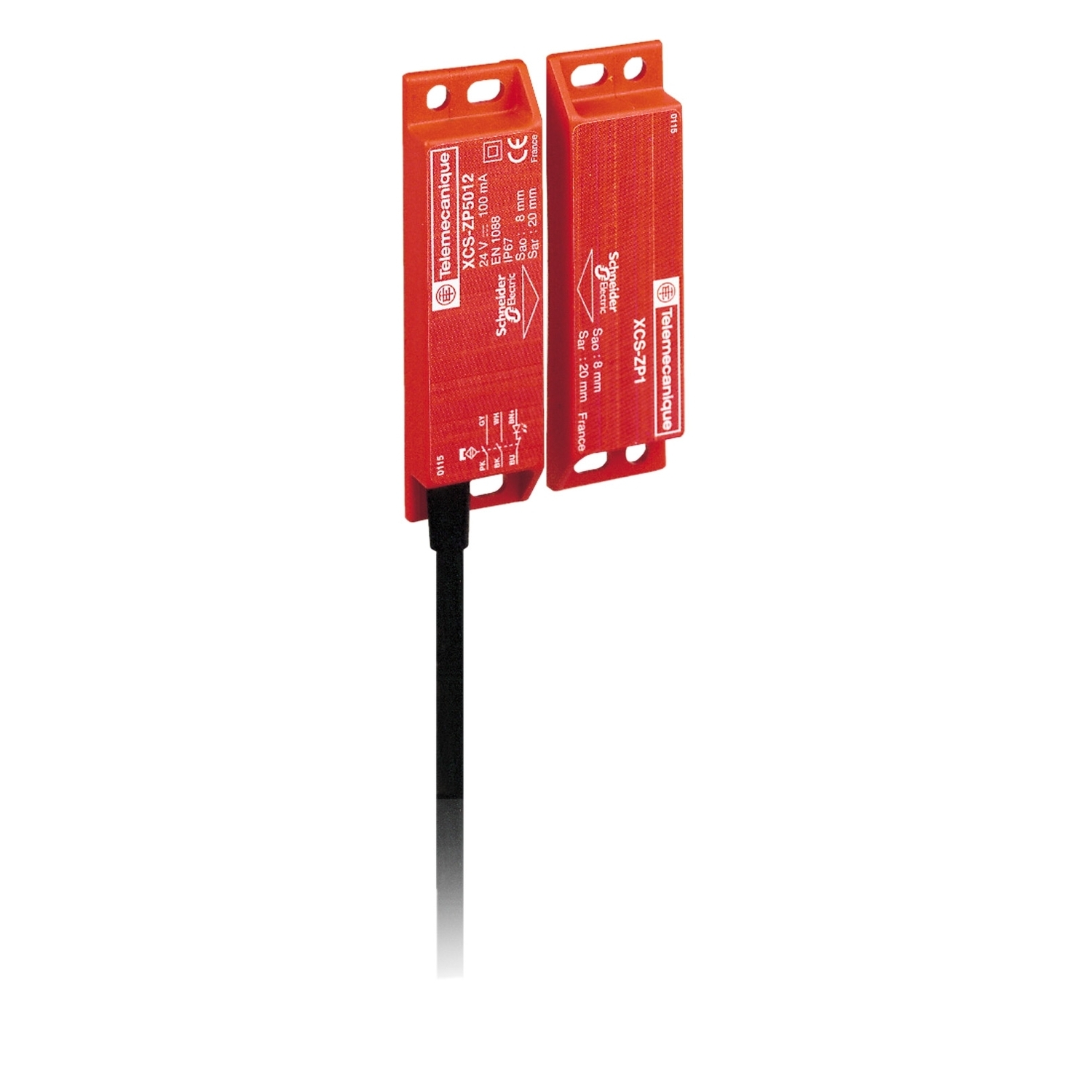

XCSDMP70010 Preventa XCSDMC Compact Rectangular Coded Magnetic Safety Interlock Switch, 24 V DC, 100 mA, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSDMP70010
- UPC:
- 785901942863
- Item #:
- 21270
XCSDMP70010 Preventa XCSDMC Compact Rectangular Coded Magnetic Safety Interlock Switch, 24 V DC, 100 mA, 3 Poles
- MFR #:
- XCSDMP70010
- UPC:
- 785901942863
- Item #:
- 21270
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$180.00
each
The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. This coded magnetic switch is dedicated to detection without contact. 3 approach directions. It features a rectangular plastic boby, and 10m long pre-cabled electrical connection . 3-pole 2 NC + 1 NO (1NC staggered).
Manuals and Documentation
| Catalog Number | XCSDMP70010 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | 1 NC staggered |
| Actuator | NON-CONTACT |
| Amperage Rating | 100 |
| Connection | Pre-cabled |
| Contact Configuration | 2 NC + 1 NO |
| Enclosure | Thermoplastic PBT |
| Special Features | PLASTIC |
| Standard | 10 GN 10-150 HZ)IEC 60068-2-6,30 GN 11 MS IEC 60068-2-27,CSA-UL-BG,EN/ISO 12100-UL 508-EN/IEC 60947-5-1-EN/IEC 60204-1-CSA C22.2 NO 14-ISO 14119,IP66 IEC 60529-IP67 IEC 60529,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859046&lang=en-us |
| UPC | 785901942863 |
| GTIN | 03389110972023 |
| Item Type | Coded magnetic switch |
| Size | 88 x 25 x 13 mm |
| Operating Temperature | -25-85 A Degrees C |
| Voltage Rating | 24 V DC |
