Square D

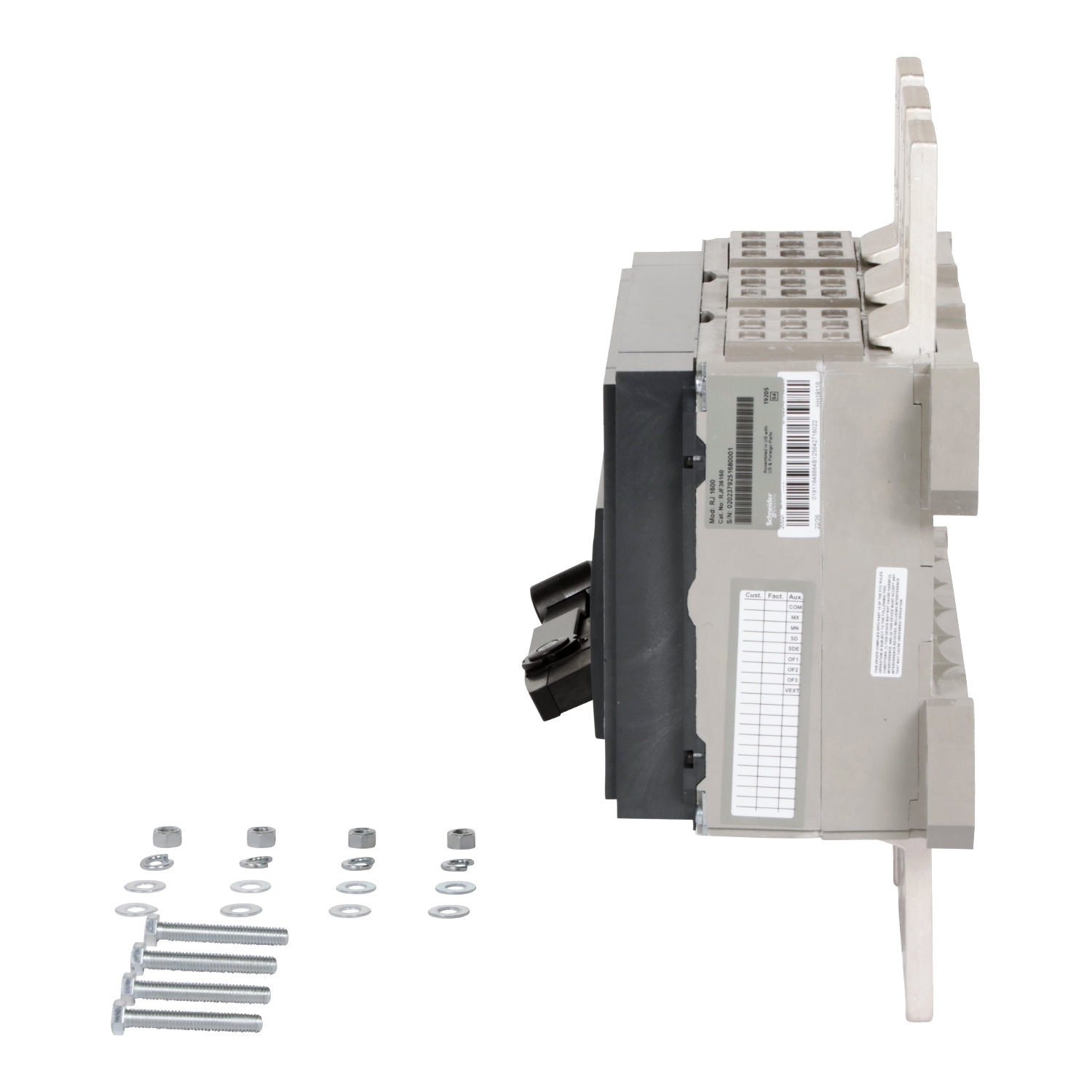

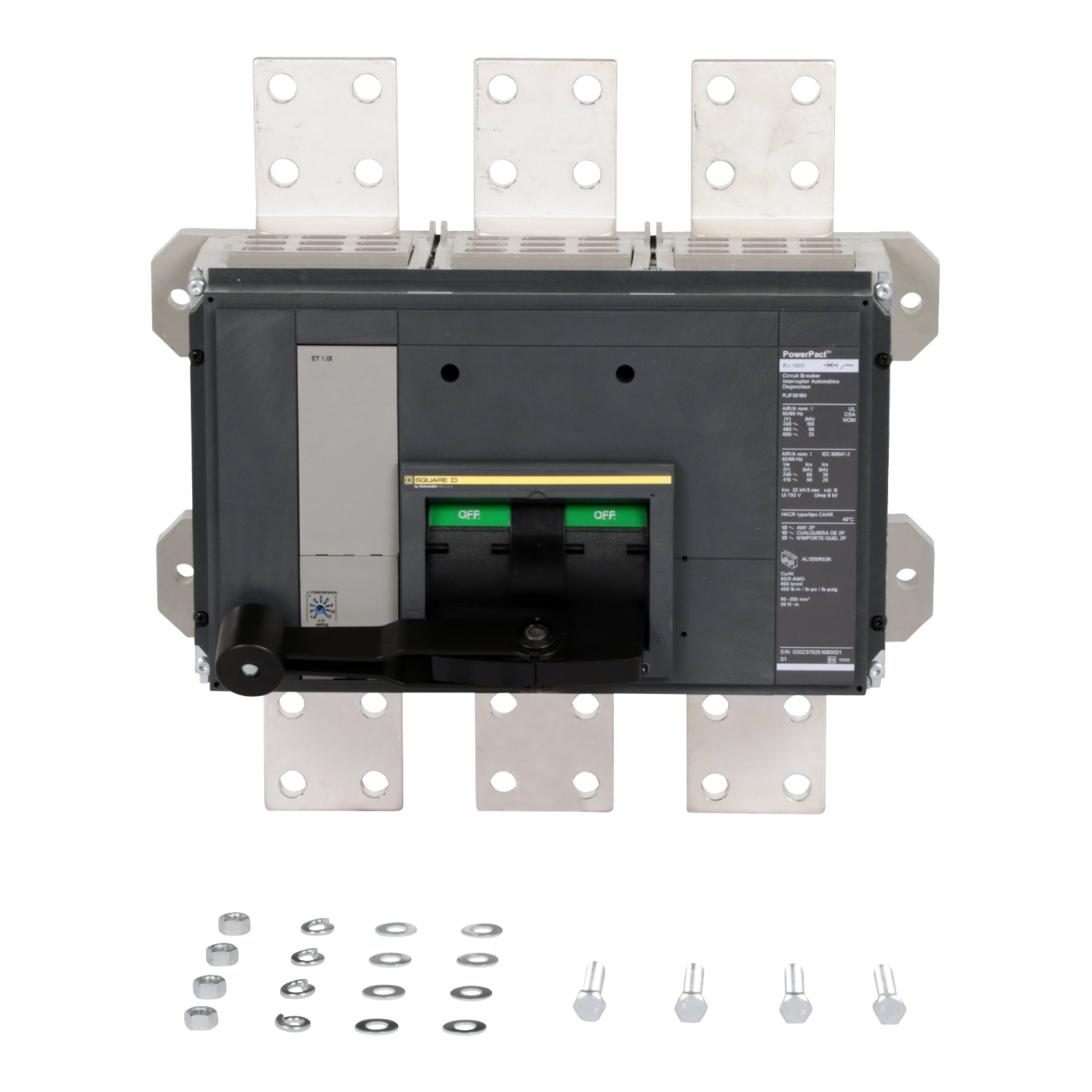

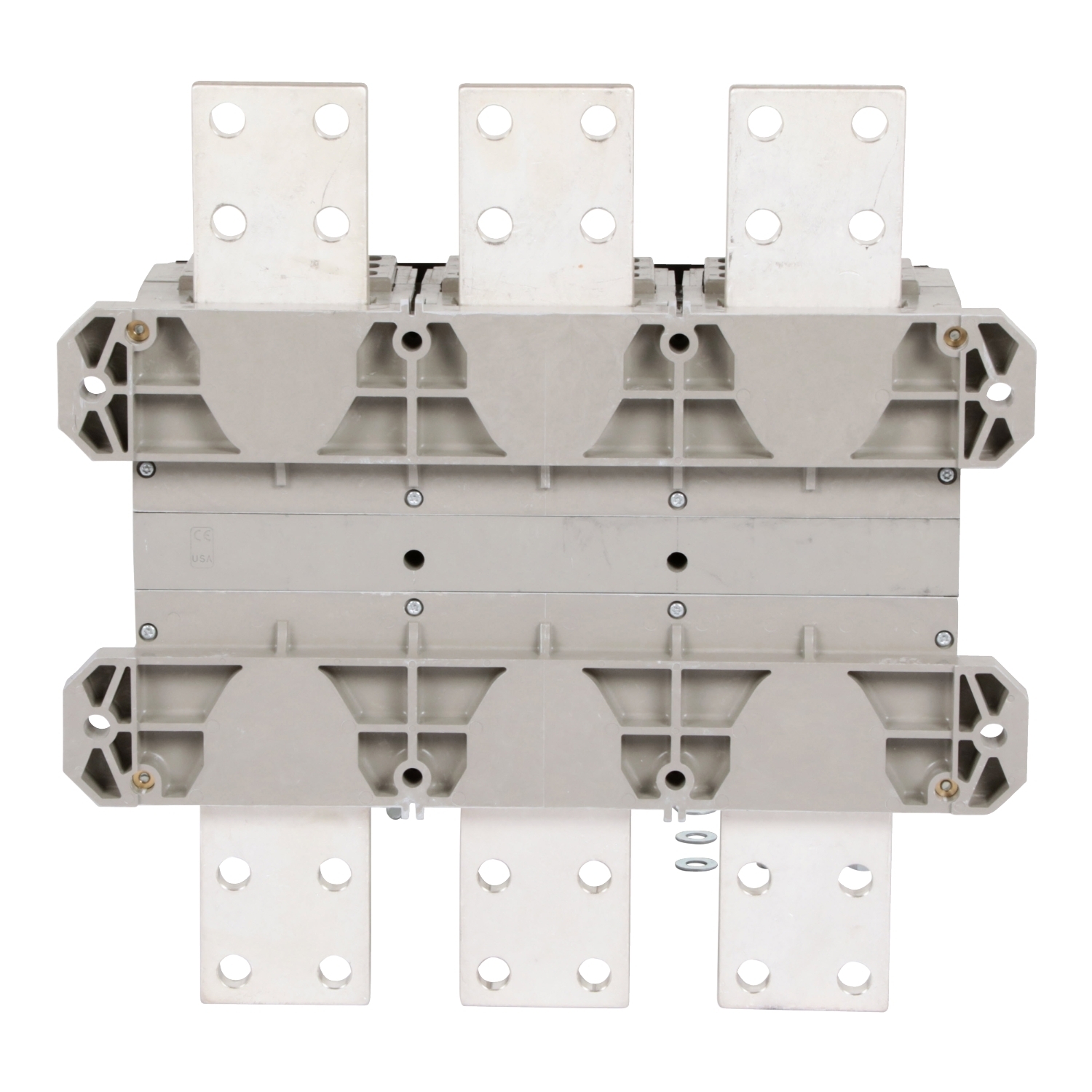

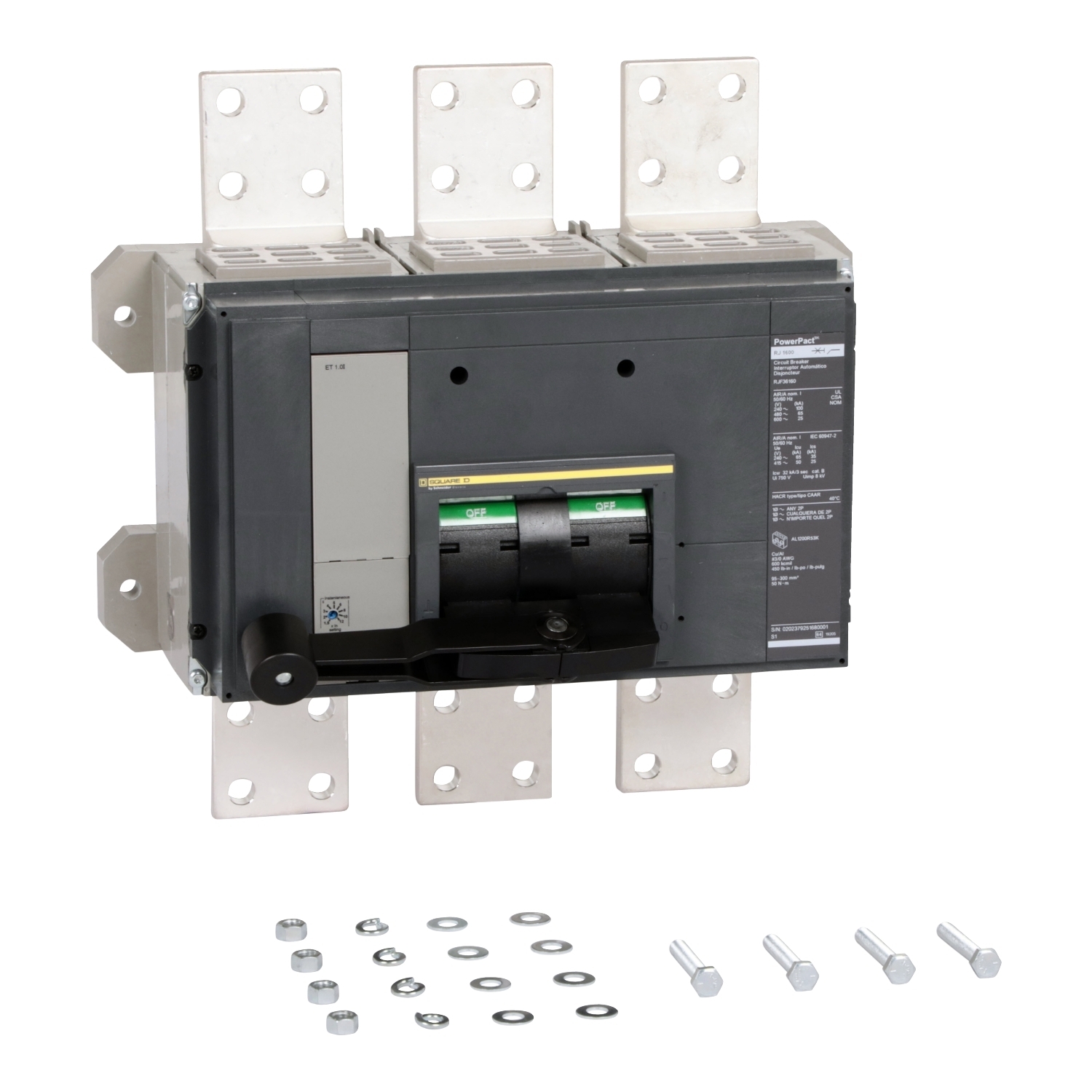

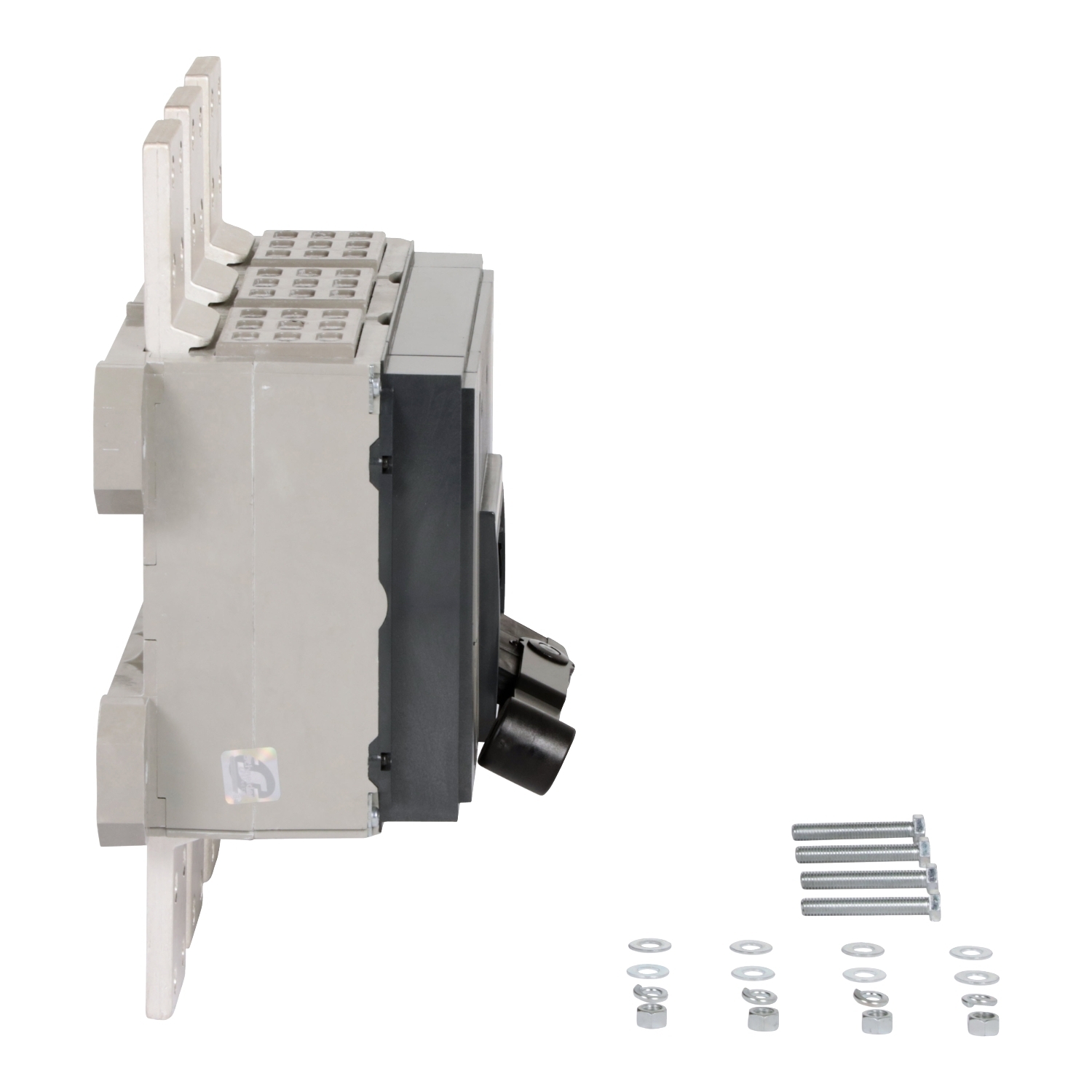

RJF36160 Molded Case Circuit Breaker, 1600 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
RJF36160
UPC:
785901566571
Item #:
211009

Availability

Location Available Qty
Available Available to Order
$27,213.73 each

PowerPacTR-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 1600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number RJF36160
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Actuator Operating handle
Application Distribution;HACR rated
Connection Busbar connection, line;busbar connection, load; AWG 3/0...750 kcmil aluminium/copper
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=437201&lang=en-us
UPC 785901566571
GTIN 00785901566571
Item Type Circuit breaker
Width 16.53
Width UOM Inch
Height 16.24
Height UOM Inch
Depth 14.49 IN
Trip Type Electronic, basic, ET 1.0I, I
