Legrand-Pass & Seymour

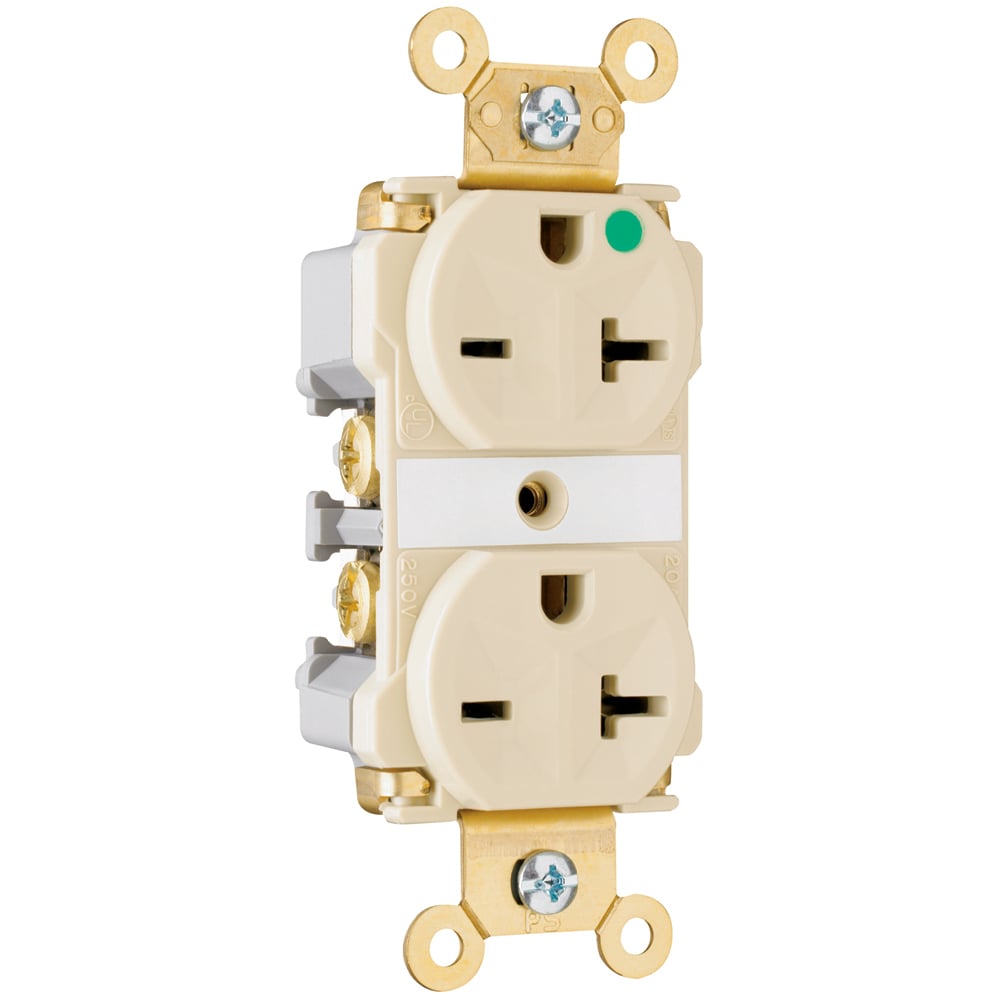

8800I Extra Heavy Duty Receptacle, Back and Side Wire, 20 Amp, 250V, Ivory

MFR:
Legrand-Pass & Seymour
MFR #:
8800I
UPC:
785007880335
Item #:
210212

Availability

Location Available Qty
Available Available to Order
$113.75 each

Extra Heavy-Duty Duplex Receptacle Back and Side-Wire 20A 250V

Catalog Number 8800I
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Ivory
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 6
Number of Poles 2
Number of Wires 3
Special Features One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors. Auto-ground clip assures positive ground.
Standard cULus UL498, CSA C22.2 No. 42
UPC 785007880335
GTIN 00785007880335
Item Type Hospital Grade Receptacle, Extra Heavy-Duty
Size 1.625 L x .900 W x 3.281 H
Environmental Conditions Flammability: UL94 V2 and UL94-5 VA
Temperature Rating -40° - 60° C
Voltage Rating 250
Wire Size 14 - 10 AWG
