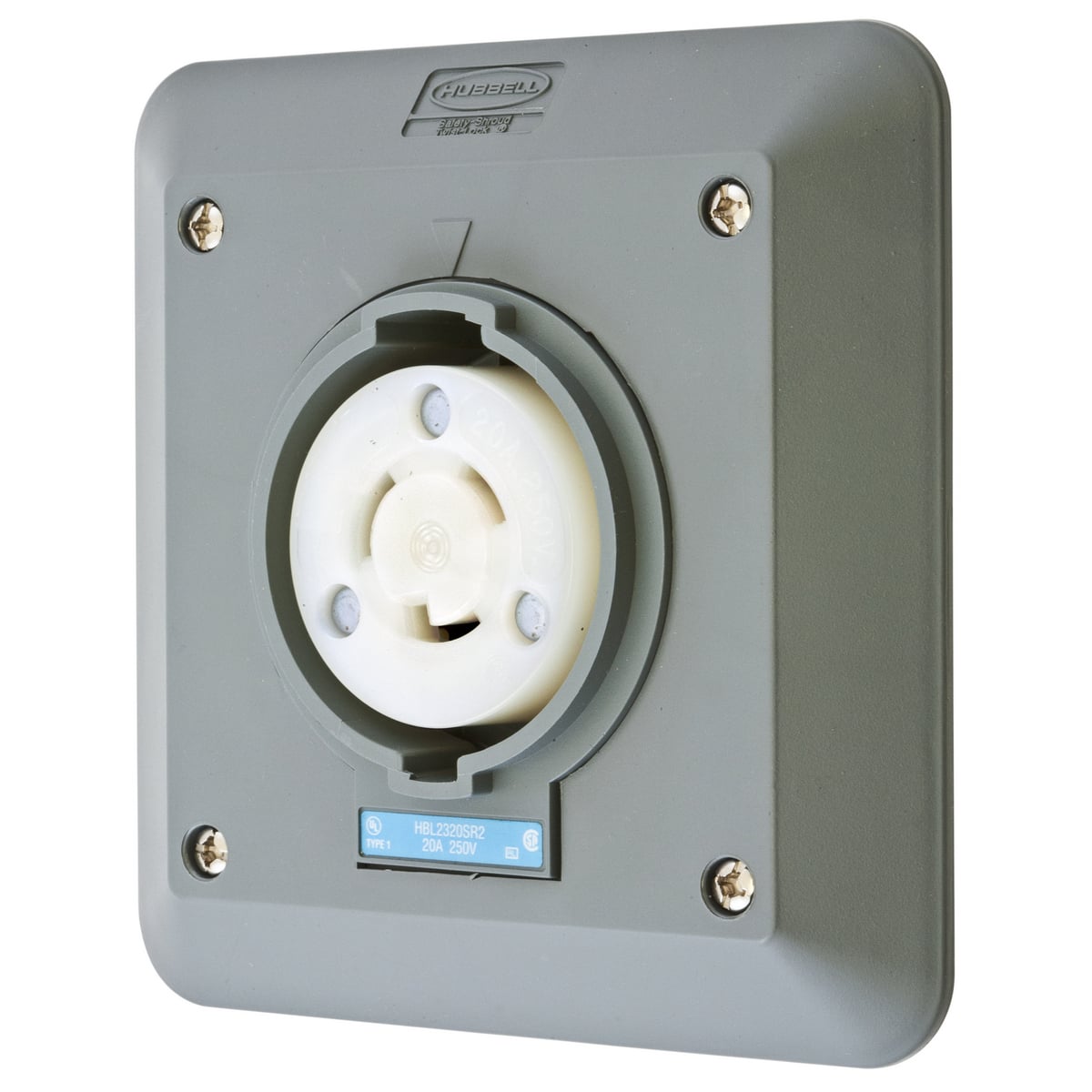

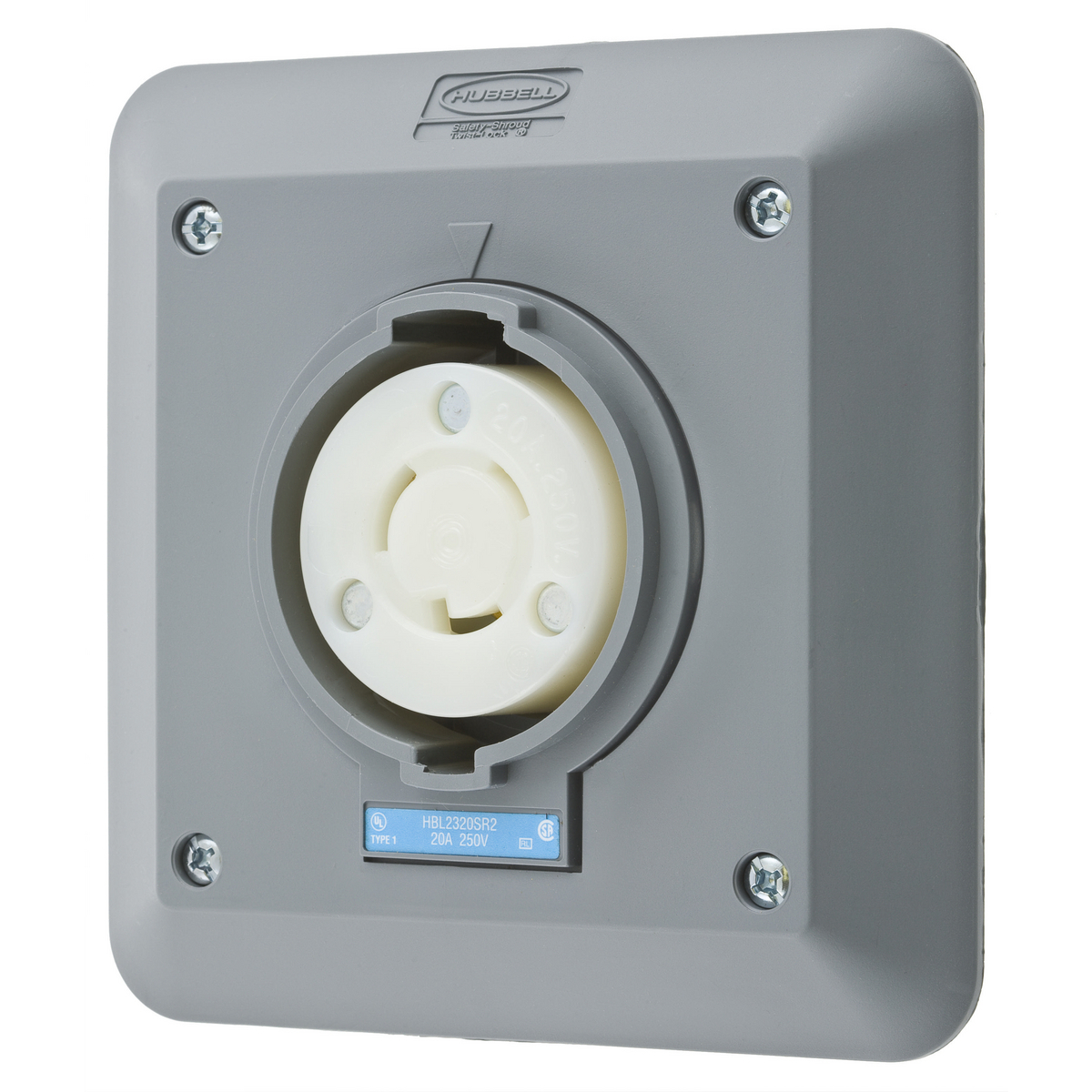

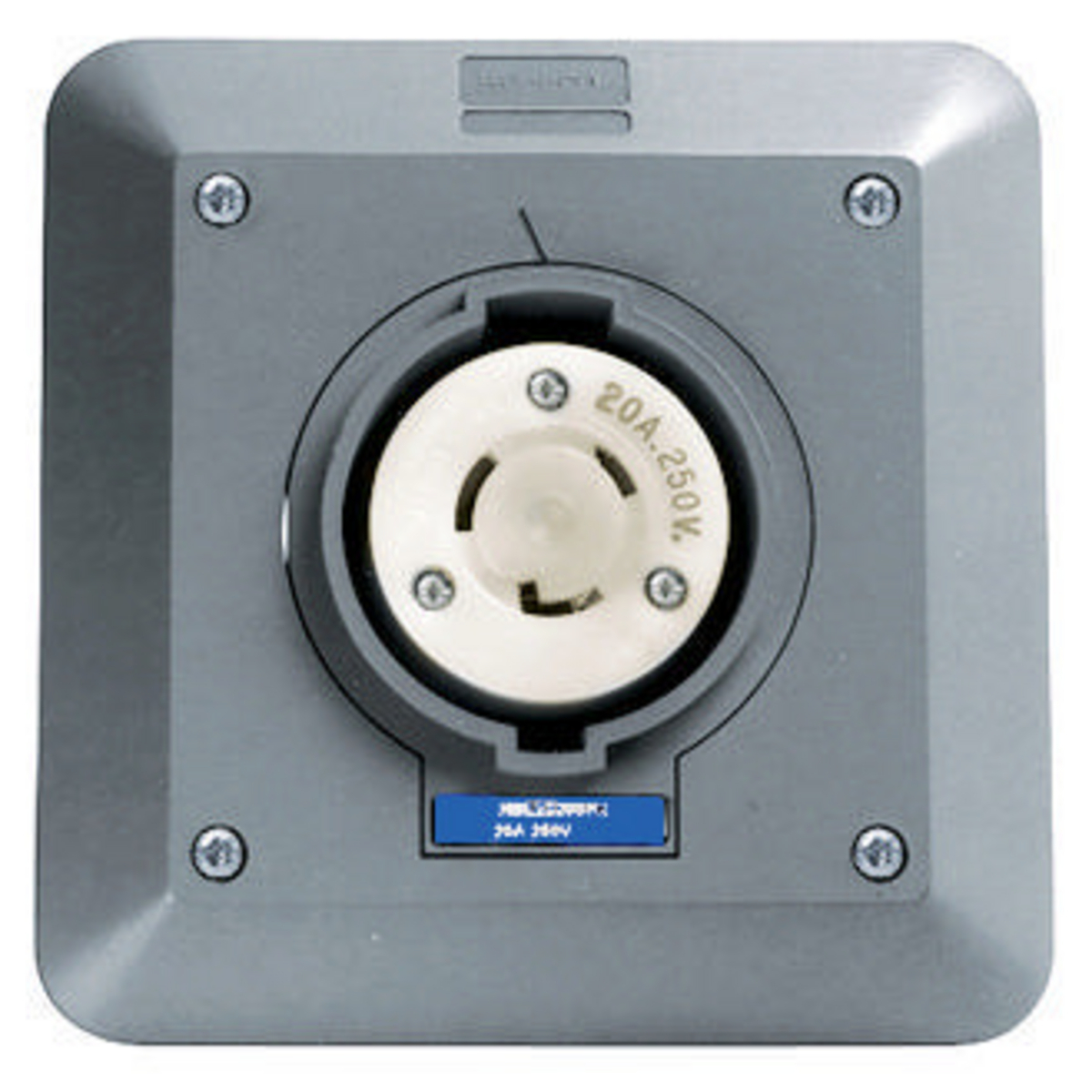

HBL2320SR2 1-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Gray/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2320SR2
- UPC:
- 783585234120
- Item #:
- 208344
HBL2320SR2 1-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Gray/White
- MFR #:
- HBL2320SR2
- UPC:
- 783585234120
- Item #:
- 208344
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$46.74
each
Manuals and Documentation
| Catalog Number | HBL2320SR2 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial Shrouded |
| Color | Gray;White |
| Connection | Screw Terminal |
| Material | Thermoplastic |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | 2-Gang Surface Mount |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585234120 |
| GTIN | 00783585234120 |
| Item Type | Receptacle |
| Size | 5.12 in x 5.12 in x 2.22 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 250 |
| Wattage | 5,000 W |
| Wire Size | #16 AWG to #8 AWG |
