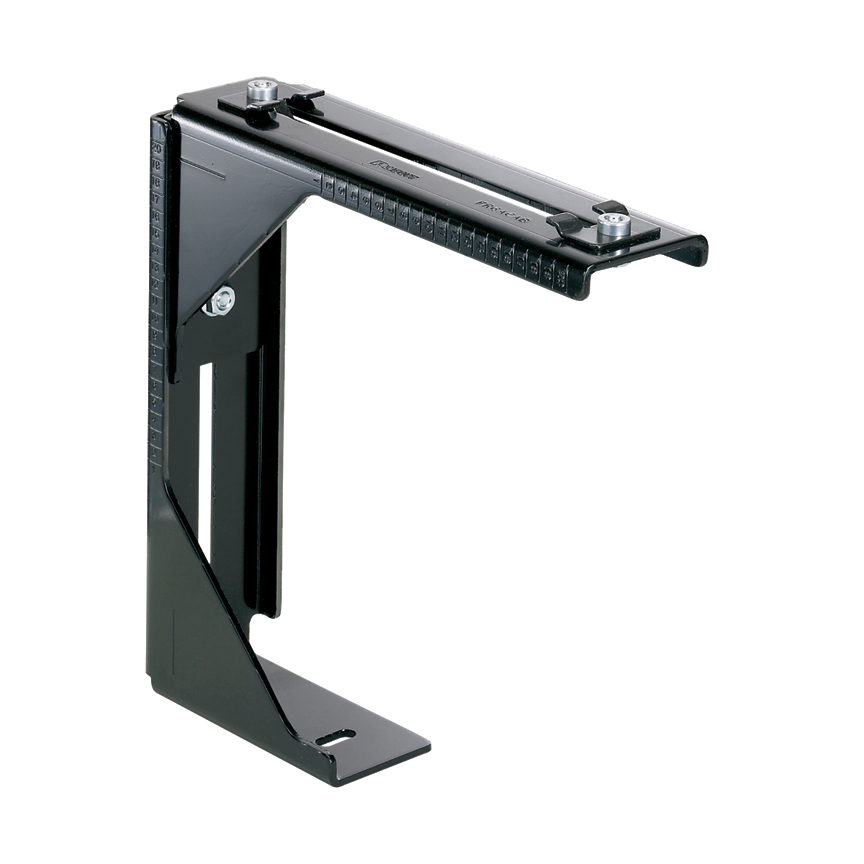

Used to support the 6x4 and 4x4 systems attaching to the top of cabinets. Adjustable from 4 1/4 (108mm) to 9 (229mm) allowing runs to be leveled over uneven cabinet heights. Bracket is secured to the cabinet frame with through bolts (not included). The pre-assembled slide clamps enable fast assembly to channel. Use 7/16 nut driver on slide clamps.
Manuals and Documentation
- Catalog Number
- FR6ACAB
- Manufacturer
- Panduit
- Brand
- Panduit
- Sub Brand
- FiberRunner®
- Country of Origin
- United States
- Made in USA
- Yes
- Application
- (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications
- Material
- Steel
- Special Features
- NULL
- Standard
- UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR
- UPC
- 074983908844
- GTIN
- 00074983908844
- Item Type
- Adjustable Cabinet Bracket
- Length
- 8.74
- Length UOM
- Inch
- Width
- 2.39
- Width UOM
- Inch
- Height
- 8.99
- Height UOM
- Inch
