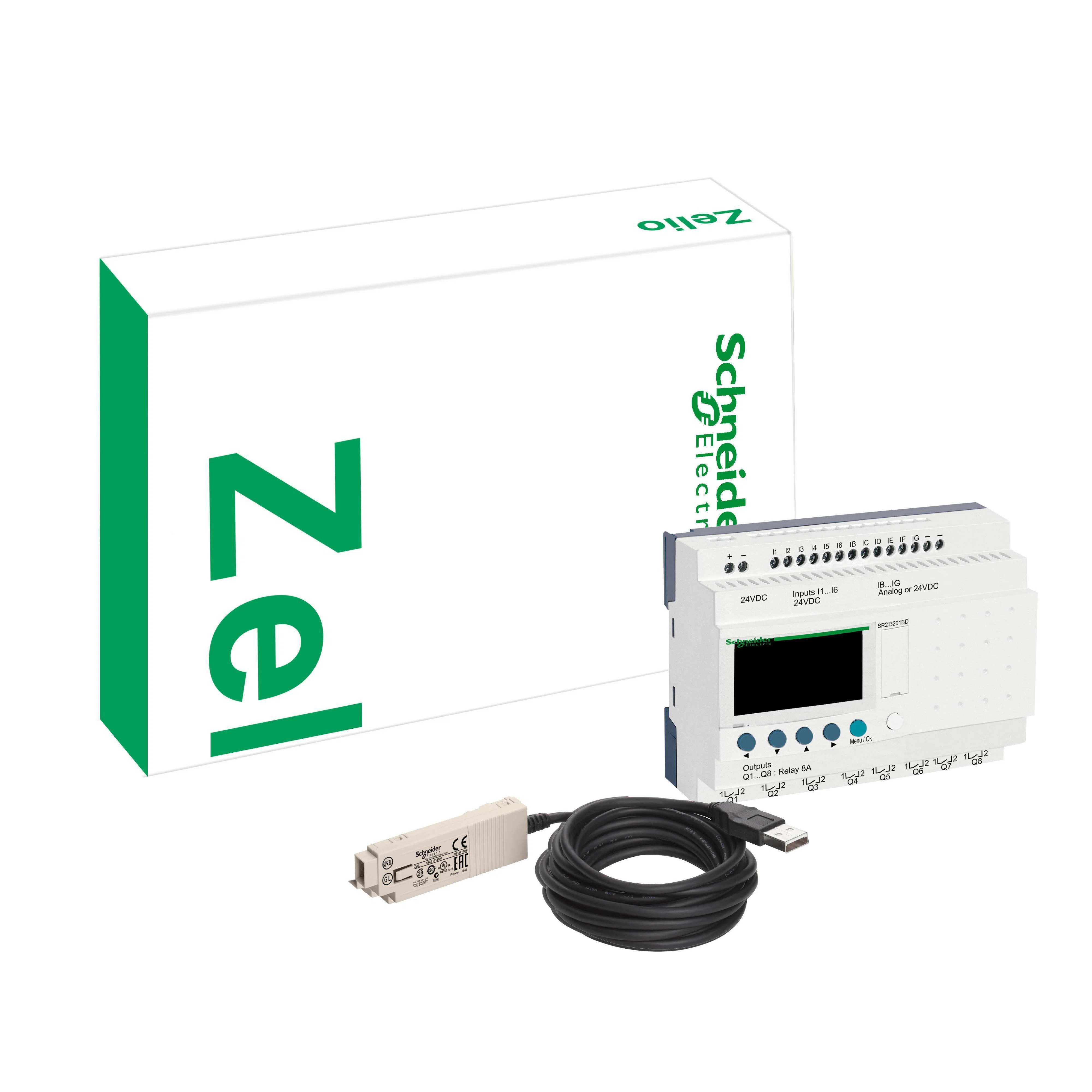

SR3PACKBD Zelio Discovery Pack Modular Logic Smart Relay With Display and Integrated Clock, 24 V DC Supply, 6 Inputs, 4 Outputs, Analog/Digital/Resistive Input, Relay Output
- MFR:
- Schneider Electric
- MFR #:
- SR3PACKBD
- UPC:
- 785901571858
- Item #:
- 207778
SR3PACKBD Zelio Discovery Pack Modular Logic Smart Relay With Display and Integrated Clock, 24 V DC Supply, 6 Inputs, 4 Outputs, Analog/Digital/Resistive Input, Relay Output
- MFR #:
- SR3PACKBD
- UPC:
- 785901571858
- Item #:
- 207778
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$473.01
each
This compact programmable relay discovery pack is ideal for discovering the Zelio Logic range of programmable smart relays. It has compact form factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Discovery package includes one copy of Zelio Soft and one USB cable to connect the relay to your PC.
Manuals and Documentation
Features
- Environmental performance of the product
- Discovery package, coming with Zelio Soft programming software - the simplest way to learn and use this relay
- Reverse polarity protection
- Simple ladder programming, adapted for non-specialists
- Built-in EEPROM flash memory for data backup up to 10 years - easy-to-recover after a power shortage or incident
| Manufacturer Part Number | SR3PACKBD |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901571858 |
| EAN | 3389110549959 |
| Country Of Origin | FR |
| Amperage Rating | 8 A |
| Dimensions | 90 mm L x 71.2 mm W x 59 mm D |
| Display Type | LCD |
| Mounting Type | DIN Rail |
| Temperature Rating | -20 to 55 deg C |
| Type | Discovery Pack Modular |
| Alternative Part Number | 20803889 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 18 months |
| Standards Approvals | REACH Compliant | WEEE Compliant | CSA Certified | UL Listed | C-Tick.1 Certified | GoST-R Certified | EN/IEC 60068-2-27 Ea | EN/IEC 61000-4-6 level 3 | Green Premium | ECCN: EAR99 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov | Reach Regulation | RoHS Compliant | IEC 60068 2 6 Fc | GL |
| Application | Ideal for discovering the Zelio Logic range of programmable smart relays |
| Includes | Cable PC SR2USB01 for Connection to PC and Zelio™ SR3B261BD Soft 2 Programming Software CD-ROM |
| Input Type | Analog/Digital/Resistive |
| Number Of Inputs | 6 |
| Number Of Outputs | 4 |
| Output Type | Relay |
| Supply Voltage | 24 V DC |
