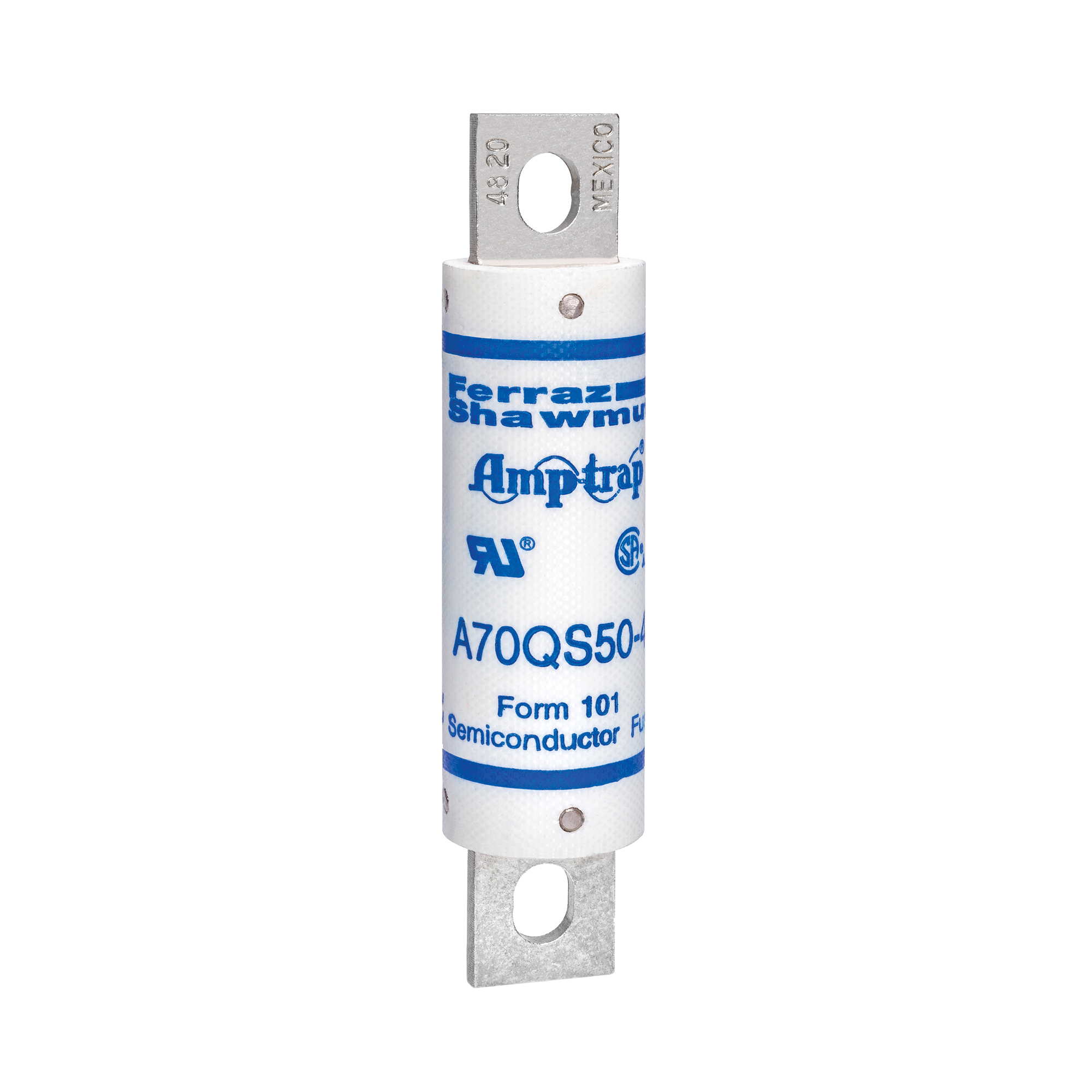

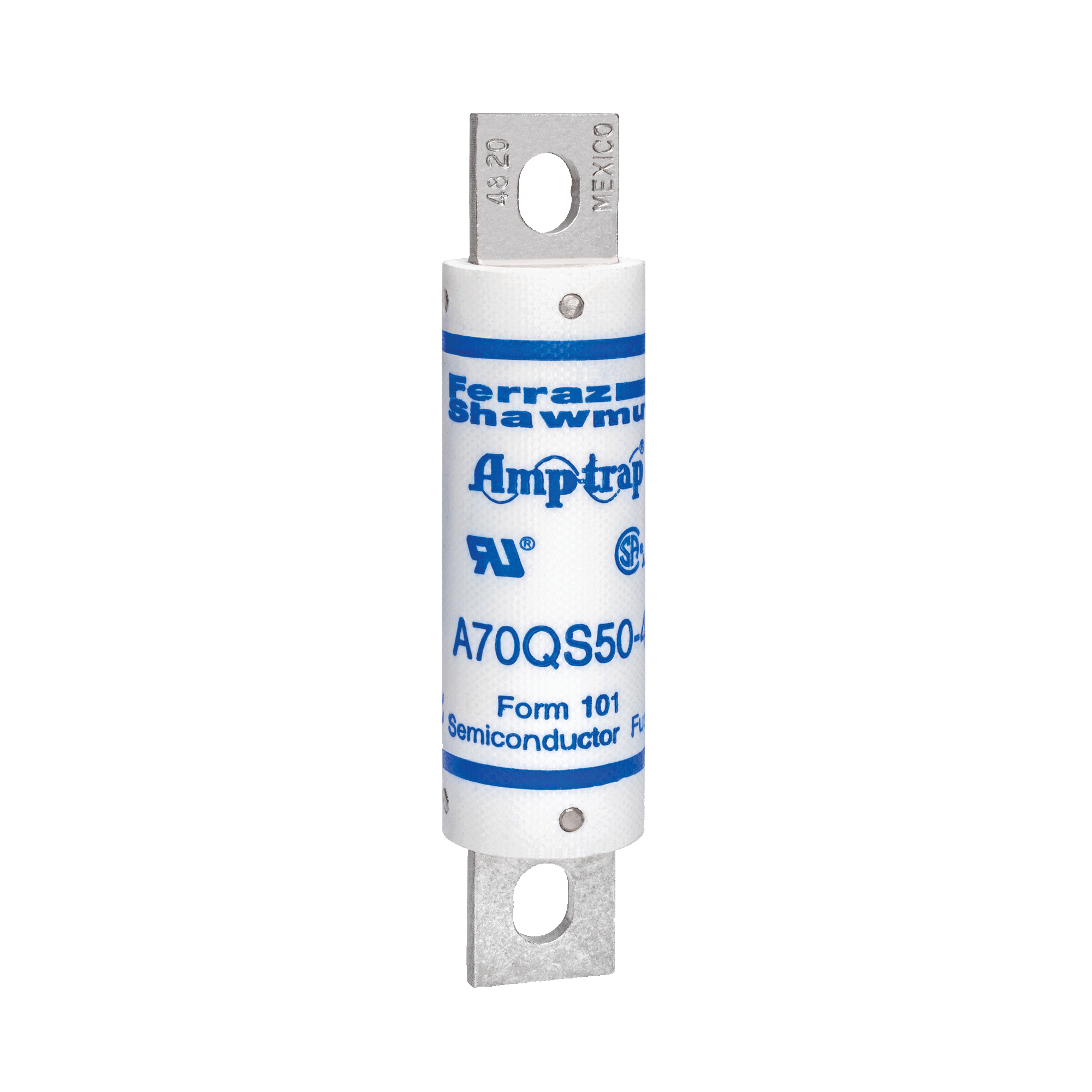

High Speed Fuse Amp-Trap A70QS 700VAC 700VDC 50A Bolted Blade
Manuals and Documentation
| Catalog Number | A70QS50-4 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 50 |
| Application | Protection of 700V or less motor drives, UPS, inverters, etc. |
| Connection | Blade |
| Mounting | Bolt |
| Special Features | Very Low I2t for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts loss for cooler operation 700V AC/DC rating gives greater design versatility Ultra compact sizes allow down-sizing of existing equipment |
| Standard | UL recognized component, AC/DC UL file E60314 AC: guide no. JFHR2 DC: tested to UL standard 198L parameters (35-800A) CSA certified File LR 12636 |
| UPC | 782001948627 |
| GTIN | 00782001948627 |
| Item Type | Round Body High-Speed Fuse-Links AC Protection |
| Size | 4.38 x 1 |
| Voltage Rating | 700 |
