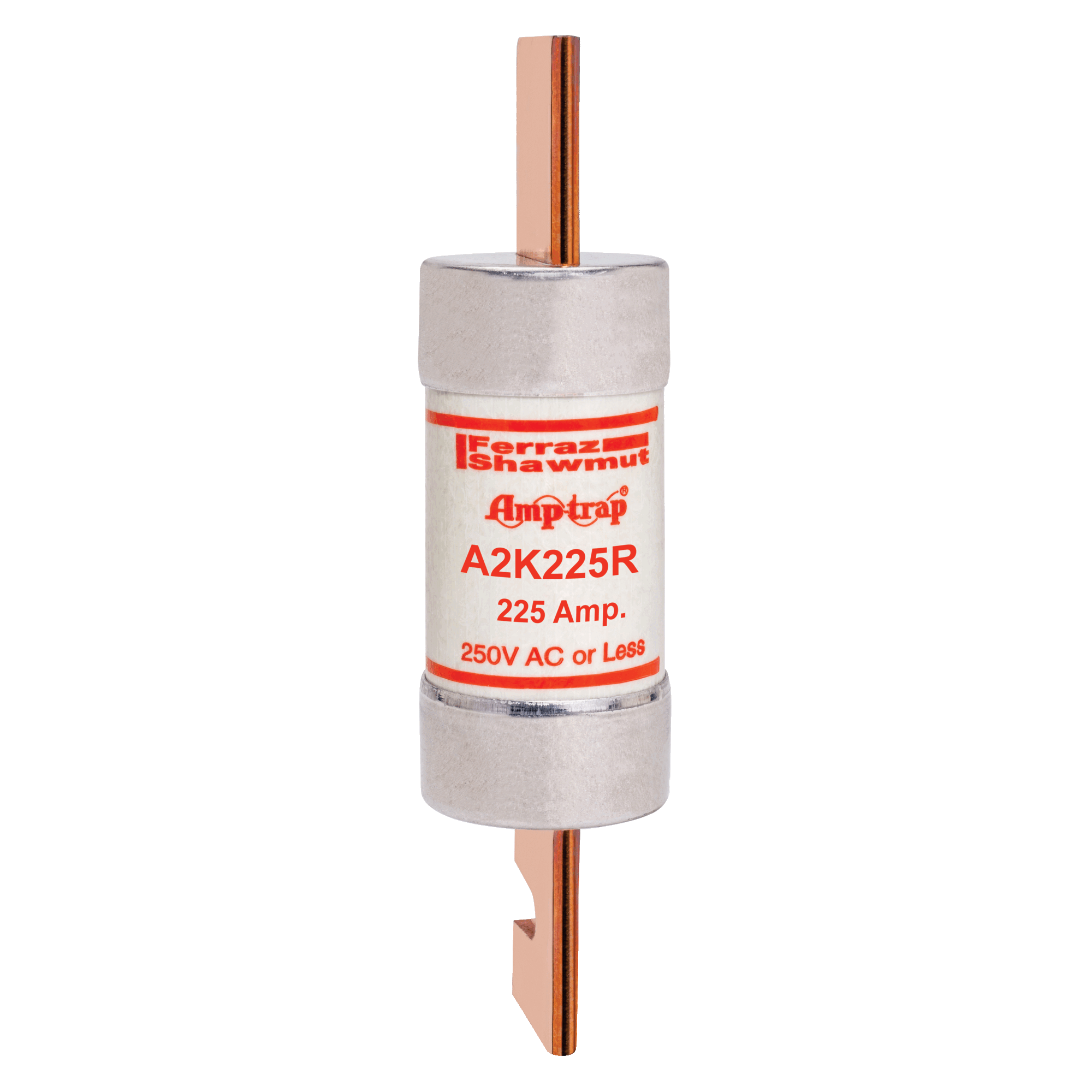

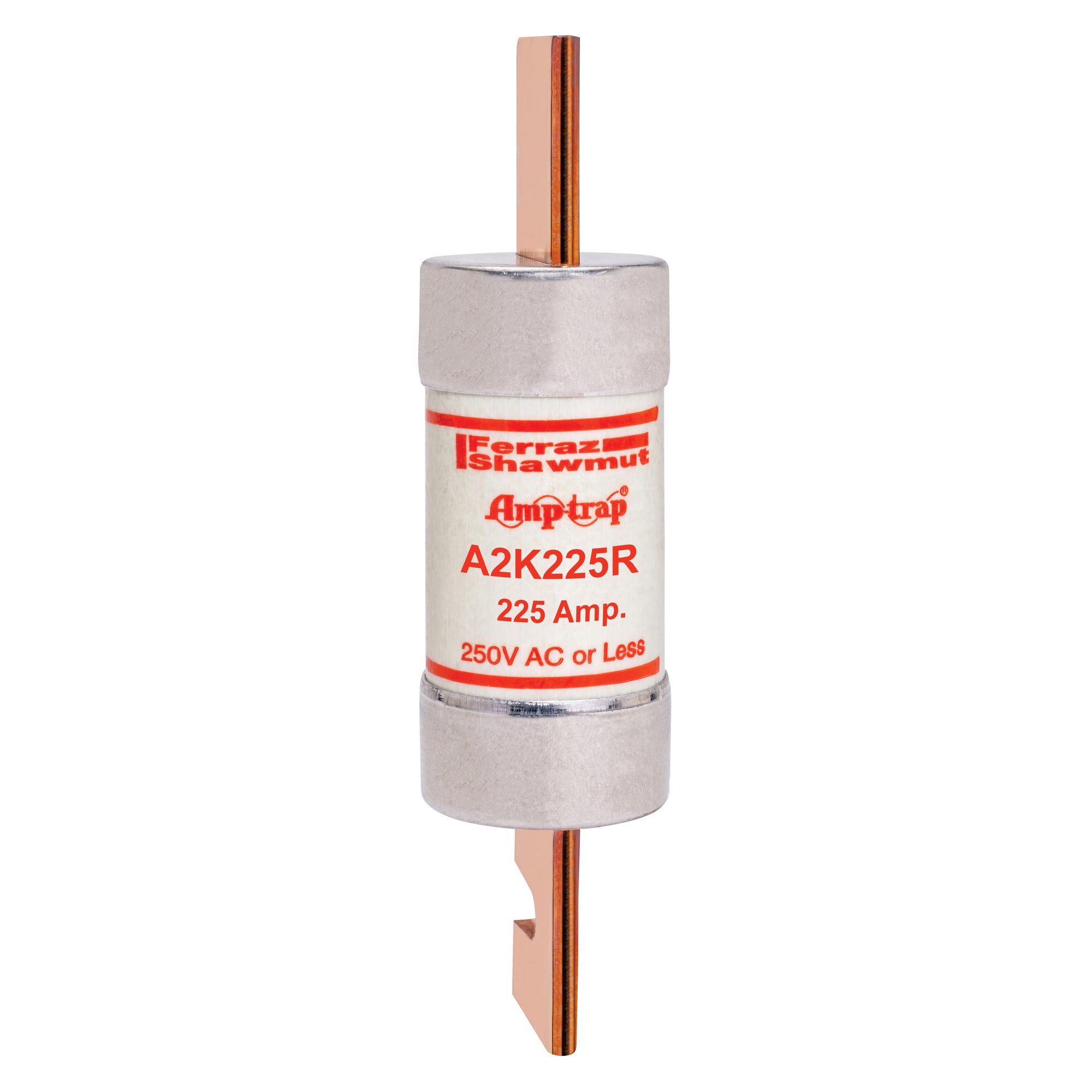

A2K225R Amp-Trap A2K-R Current Limiting Fast Acting Low Voltage North American Style Power Fuse, 225 A, 250 V AC/DC, 20/200 kA, Class RK1, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A2K225R
- UPC:
- 782001915322
- Item #:
- 207625
A2K225R Amp-Trap A2K-R Current Limiting Fast Acting Low Voltage North American Style Power Fuse, 225 A, 250 V AC/DC, 20/200 kA, Class RK1, Cylindrical Body
- MFR #:
- A2K225R
- UPC:
- 782001915322
- Item #:
- 207625
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse A2K-R - Class RK1 - Fast-Acting 250VAC 250VDC 225A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A2K225R |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 225 |
| Application | Load centers Panelboards Switchboards Bus duct Feeder circuits Non-inductive loads Lighting circuits |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Rejection style design prevents replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement High degree of current limitation for low peak let-thru current |
| Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 No. 248.12 Self-certified for DC per UL248 |
| UPC | 782001915322 |
| GTIN | 00782001915322 |
| Item Type | Class RK1 |
| Size | 8.63 x 2.06 |
| Voltage Rating | 250 |
