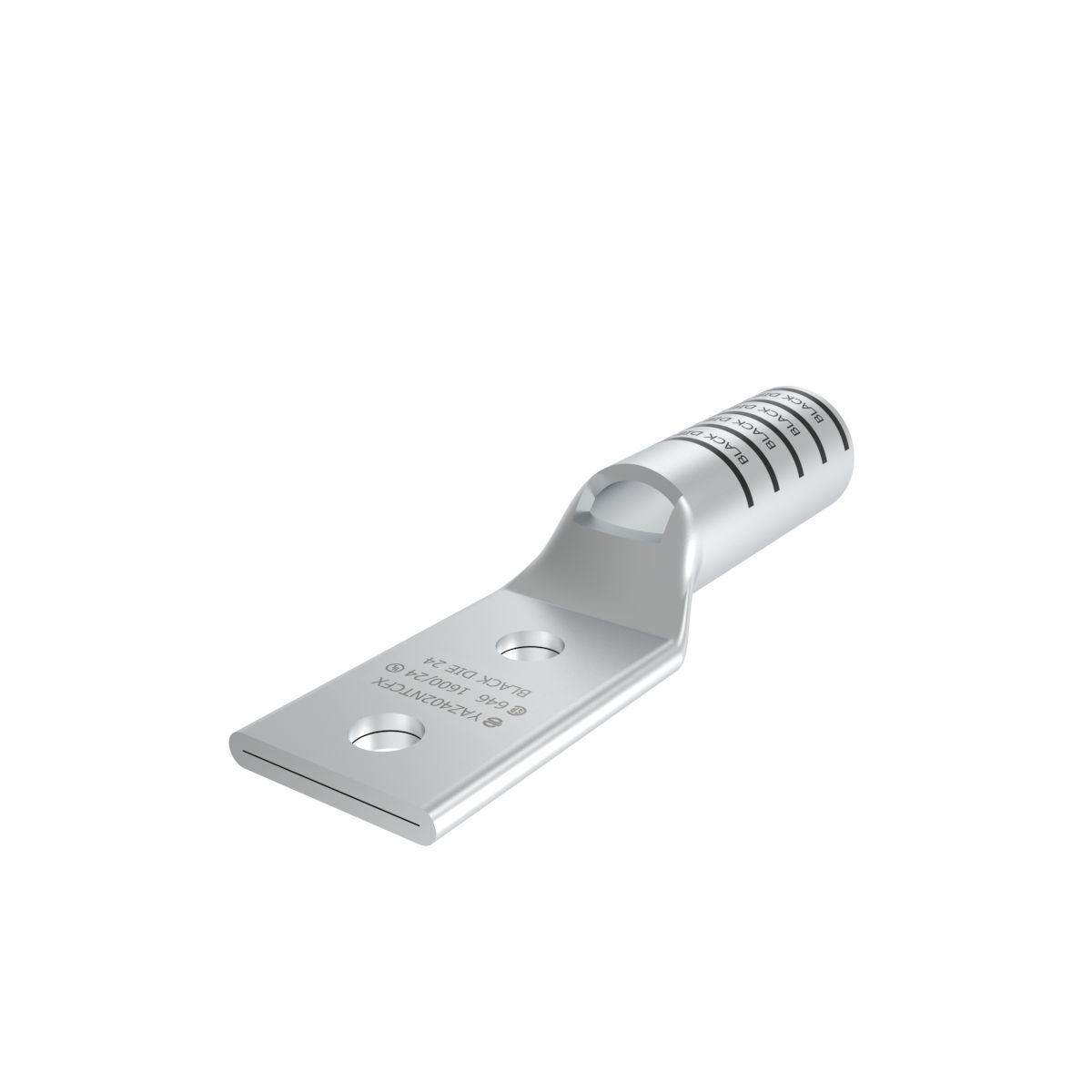

YAZ402NTCFX YAZ-FX 2-Hole Compression Lug With Inspection Window, 646 kcmil Flexible/Stranded Copper Conductor, Die Code: 24, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ402NTCFX
- UPC:
- 781810228685
- Item #:
- 207326
YAZ402NTCFX YAZ-FX 2-Hole Compression Lug With Inspection Window, 646 kcmil Flexible/Stranded Copper Conductor, Die Code: 24, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YAZ402NTCFX
- UPC:
- 781810228685
- Item #:
- 207326
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$154.61
each
Manuals and Documentation
| Catalog Number | YAZ402NTCFX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Die Index: 24, Finish: Electro-Tin Plated, Wire Strip Length: 3 IN, Temperature Rating: 90 DEG C, Color Code: Black, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, U39RT Die, (4), Hydraulic: Y35, Y39, Y750, PAT750 Tool, U39RT Die, (4), Y46 Tool, U39RT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS, Y644MBH Tool, (1) |
| Standard | UL 486A-486B |
| UPC | 781810228685 |
| GTIN | 00781810228685 |
| Item Type | Long Barrel, Skive |
| Voltage Rating | 35 |
