Telemecanique

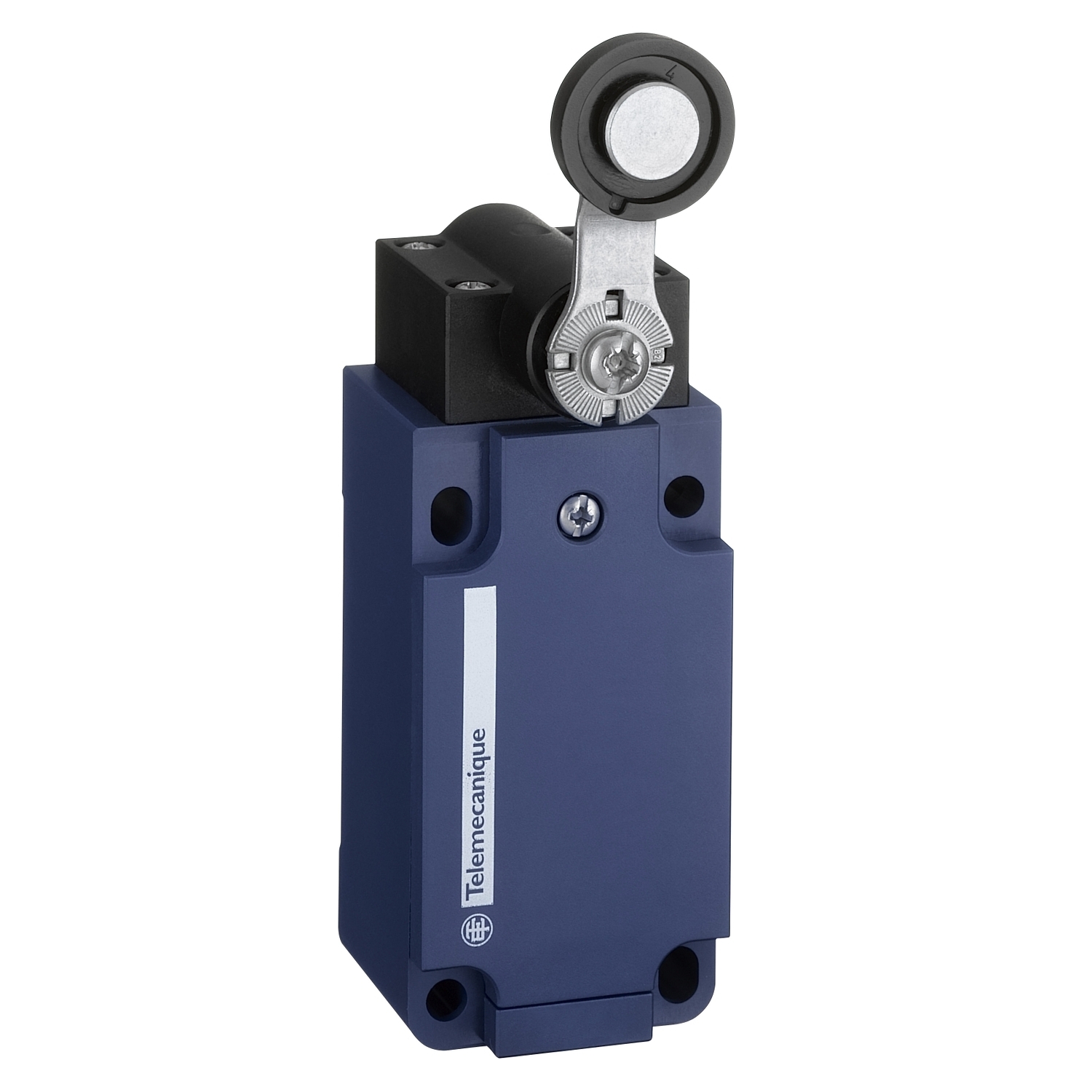

XCKS531 OsiSense XC Standard Format Fixed Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKS531
UPC:
785901321927
Item #:
207116

Availability

Location Available Qty
Available Available to Order
$95.53 each

limit switch XCKS - thermoplastic roller lever - 1NC+1NO - slow-break - Pg13

Manuals and Documentation
Catalog Number XCKS531
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 1 or 2 programmable direction;Slow-break, break before make;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic
Application CLASSIC
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-CENELEC EN 50041-CSA C22.2 NO 14-EN 60204-1-IEC 60947-5-1-UL 508-IEC 60204-1,IK05 EN 50102,IP67 IEC 60529-IP66 IEC 60529,UL-CCC-CSA,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857402&lang=en-us
UPC 785901321927
GTIN 03389110646955
Item Type Limit switch
Size 2.36
Operating Temperature -25-70 A Degrees C
