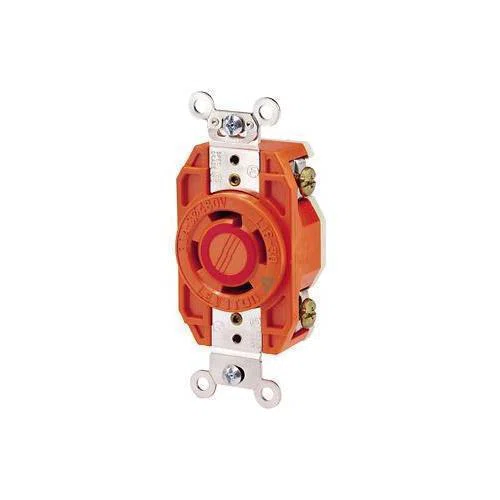

2730-IG 3-Phase Y Isolated Grounding Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Orange
- MFR:
- Leviton
- MFR #:
- 2730-IG
- UPC:
- 078477809662
- Item #:
- 206874
2730-IG 3-Phase Y Isolated Grounding Locking Receptacle, 480 V AC, 30 A, 3 Poles, 4 Wires, Orange
- MFR #:
- 2730-IG
- UPC:
- 078477809662
- Item #:
- 206874
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$110.52
each
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
Manuals and Documentation
Features
- Full rated current limiting
- Ratings and NEMA ID permanently marked on device for identification
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
| Manufacturer Part Number | 2730-IG |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477809662 |
| Country Of Origin | MX |
| Amperage Rating | 30 A |
| Color | Orange |
| Dimensions | 3.63 in H x 1.69 in W x 1.31 in D |
| Horsepower | 10 hp |
| Material | Polybutylene Terephthalate |
| Temperature Rating | -40 to 60 deg C |
| Type | 3-Phase Y Isolated Grounding |
| Voltage Rating | 480 V AC |
| Alternative Part Number | 7332610 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | Limited Lifetime |
| Standards Approvals | NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 | Federal Specification WC596/E13399 | UL 498 | UL94 V-0/V-2 Flammability Rating |
| Application | Commercial Applications |
| Grade | Industrial |
| Nema Rating | NEMA L16-30R |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Terminal Type | Back/Side Wire |
