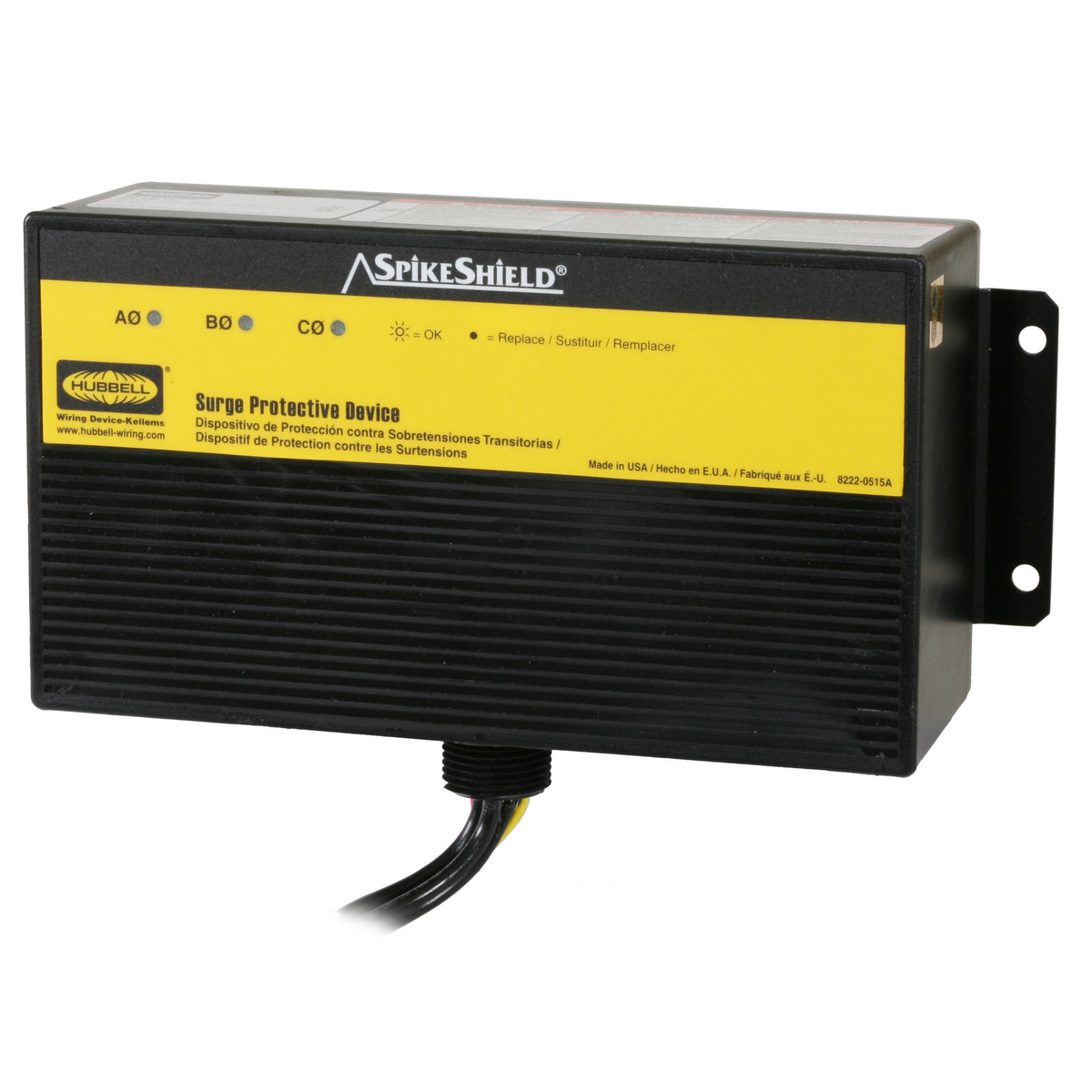

HBL3W100C Wired-In Branch Surge Panel Protector With Leads, 120/240 V, 60 Hz, 1 Phase, 10 AWG Wire
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL3W100C
- UPC:
- 783585120782
- Item #:
- 206851
HBL3W100C Wired-In Branch Surge Panel Protector With Leads, 120/240 V, 60 Hz, 1 Phase, 10 AWG Wire
- MFR #:
- HBL3W100C
- UPC:
- 783585120782
- Item #:
- 206851
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,396.72
each
Wired-In Branch Panel Protection - The wired-in surge protection device brick design is ideal for areas where space is a major consideration. The surge unit can be mounted directly to the panel through a chase nipple connection which will reduce lead length and impedance while increasing protection levels. The 100kA product features a NEMA 4X housing and a 200kA SCCR rating. The SpikeShield wired-in surge protective devices are UL1449 4th edition listed.
Manuals and Documentation
| Catalog Number | HBL3W100C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Surface Mount Brick with Leads |
| Connection | Leads |
| Frequency Rating | 60 HZ |
| Material | Steel |
| Mounting | Screw |
| Phase | 1 |
| Response Time | 5 |
| Short Circuit Rating | 200kA |
| Special Features | Dry Contacts, NEMA 4X |
| Standard | cULus UL1449-3Rd Edition Type 2 Spd |
| UPC | 783585120782 |
| GTIN | 00783585120782 |
| Item Type | 100kA |
| Size | 100kA Peak |
| Environmental Conditions | Indoor and Outdoor |
| Operating Temperature | -40 Degrees F to 149 Degrees F (-40 C to 65 C) |
| Type of Indicators | Green Status LED, Audible Alarm |
| Voltage Rating | Single Phase 120;Single Phase 240 |
