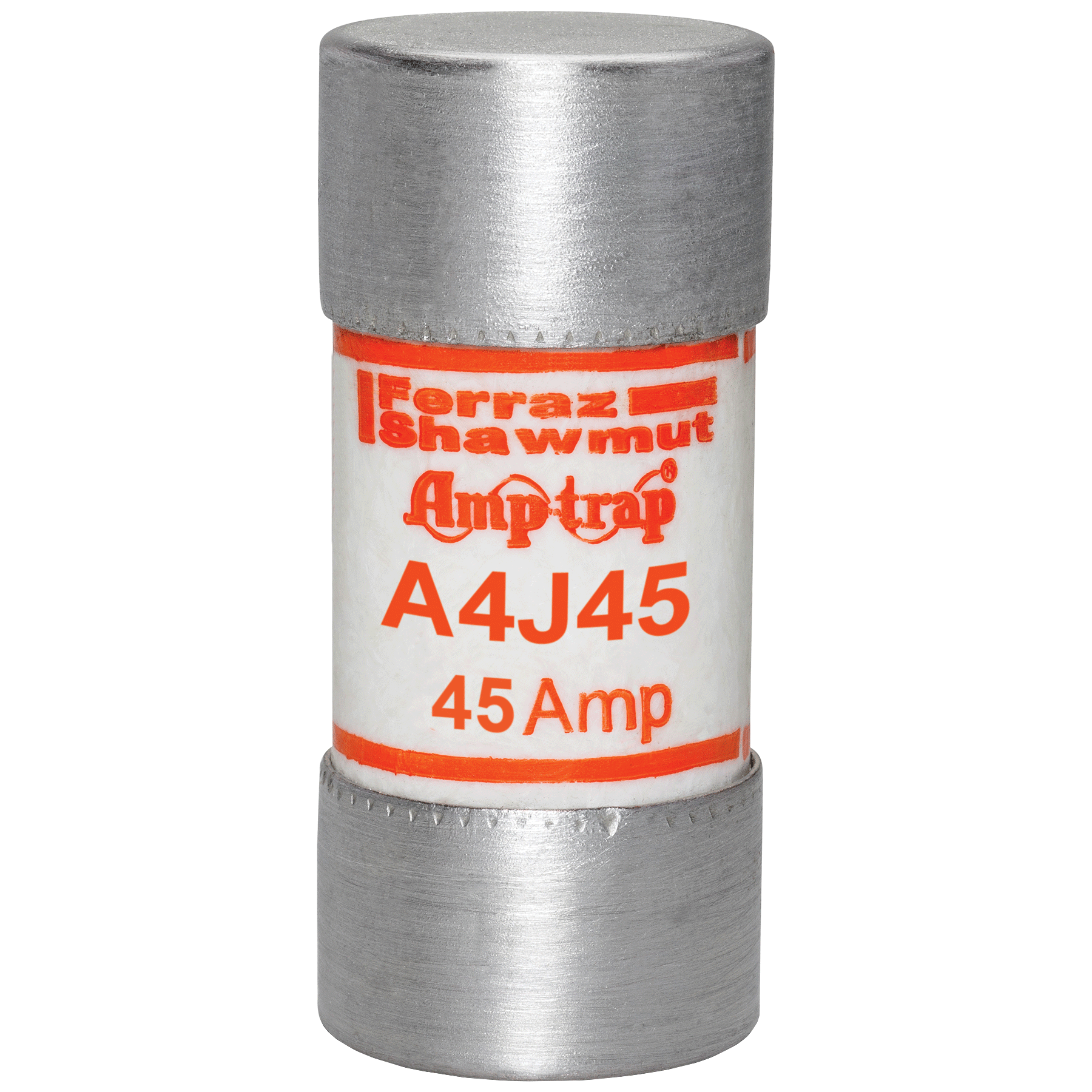

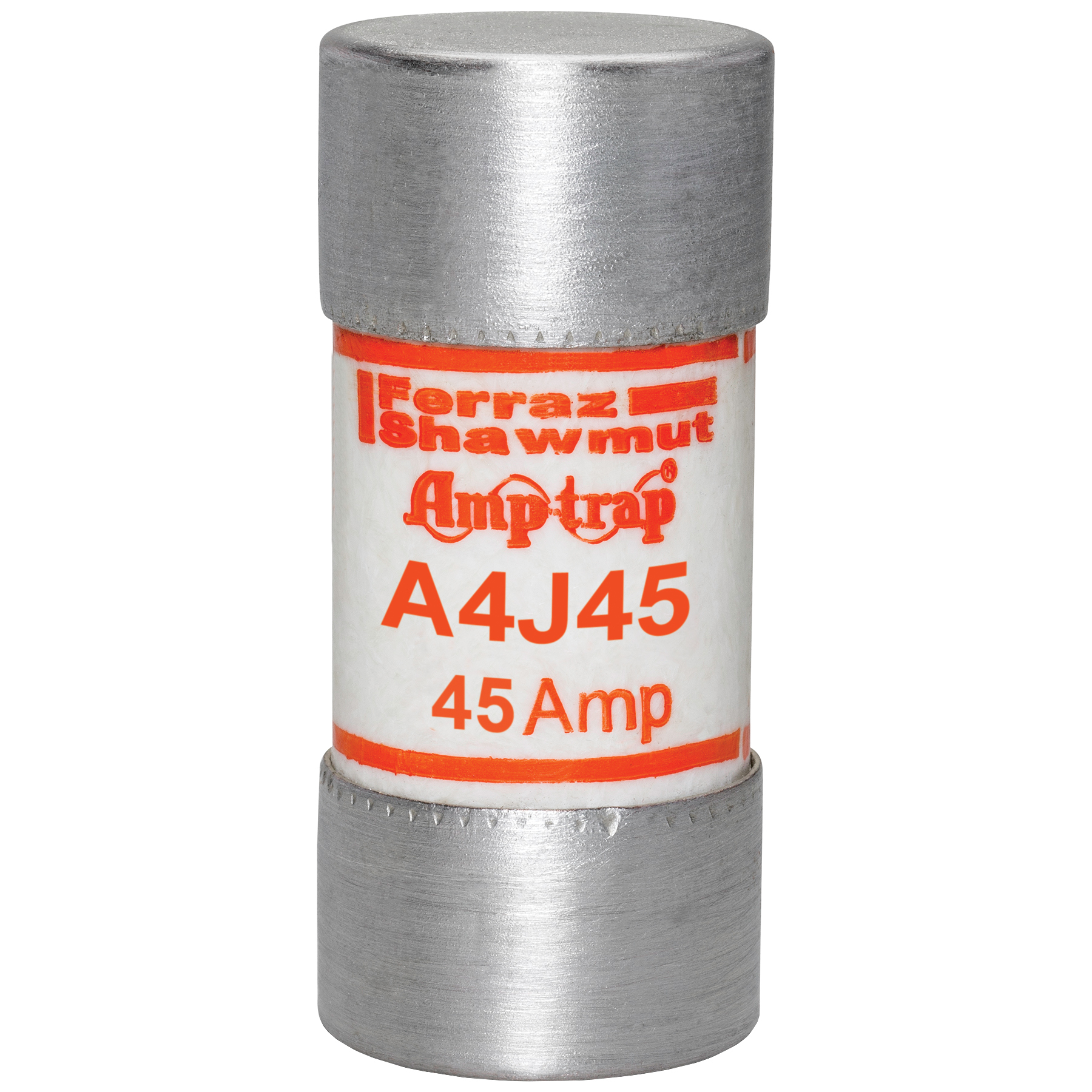

A4J45 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 45 A, 600 V AC/300 V DC, 200/100 kA, Class J, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A4J45
- UPC:
- 782001960230
- Item #:
- 206094
A4J45 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 45 A, 600 V AC/300 V DC, 200/100 kA, Class J, Cylindrical Body
- MFR #:
- A4J45
- UPC:
- 782001960230
- Item #:
- 206094
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$242.11
each
Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 45A Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | A4J45 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 45 |
| Application | Capacitors Load centers Panelboards Switchboards Bus duct Feeder circuits Circuit breakers Lighting, heating, and general loads |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | High current limitation for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Fiberglass body provides dimensional stability in harsh industrial environments Easy-to-read imprint label for quick recognition and replacement |
| Standard | UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 IEC 269-2-1 |
| UPC | 782001960230 |
| GTIN | 00782001960230 |
| Item Type | Class J |
| Size | 2.38 x 1.06 |
| Voltage Rating | 600 |
