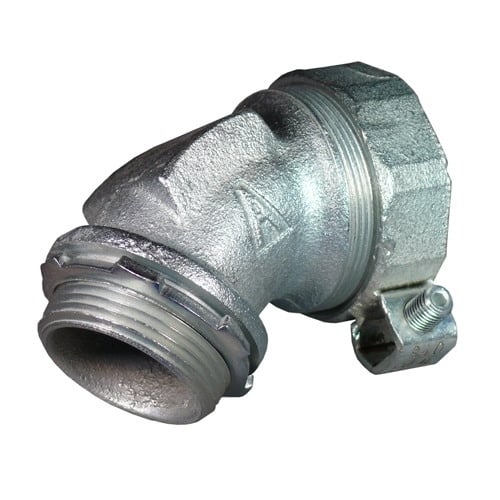

ST Series 45 Degree Liquidtight Connector With External Grounding Lug; 3 Inch, Malleable Iron, Chromate, Tapered NPT
- MFR:
- Appleton Electric
- MFR #:
- ST-45300L
- UPC:
- 781381403368
- Item #:
- 206024
ST Series 45 Degree Liquidtight Connector With External Grounding Lug; 3 Inch, Malleable Iron, Chromate, Tapered NPT
- MFR #:
- ST-45300L
- UPC:
- 781381403368
- Item #:
- 206024
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,194.84
each
ST Series 45 DEG Liquidtight Connector, Size: 3 IN, Connection: Threaded X Compression, Conductor Range: 1 - 4/0 AWG, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 1.19 IN, Standard: Cl
Manuals and Documentation
| Catalog Number | ST-45300L |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Conductor Range | 1 - 4/0 AWG |
| Connection | Threaded X Compression |
| Finish | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material | Malleable Iron |
| Special Features | Includes plain throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT) |
| Standard | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381403368 |
| GTIN | 00781381403368 |
| Item Type | ST Series 45 DEG Liquidtight Connector |
| Size | 3 |
