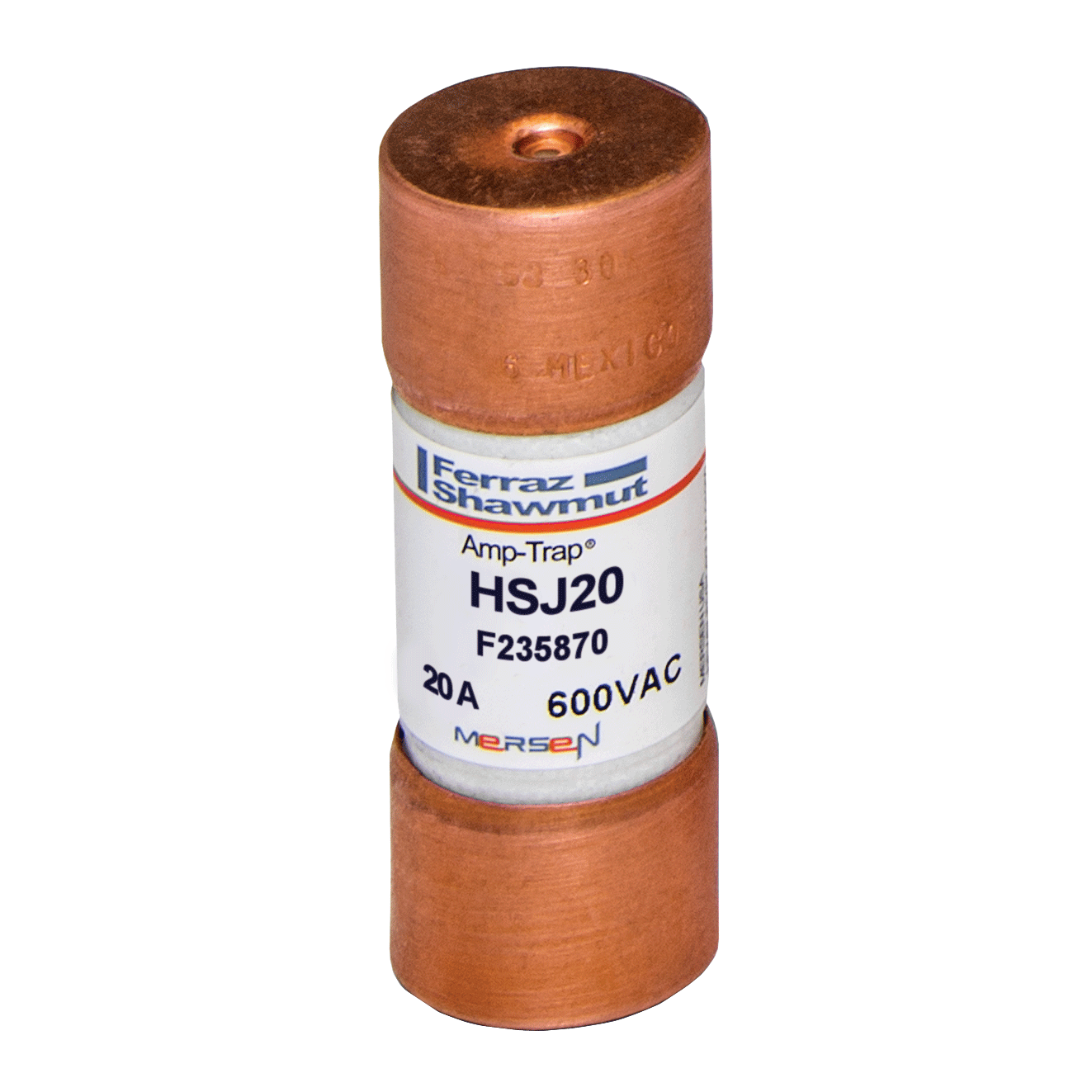

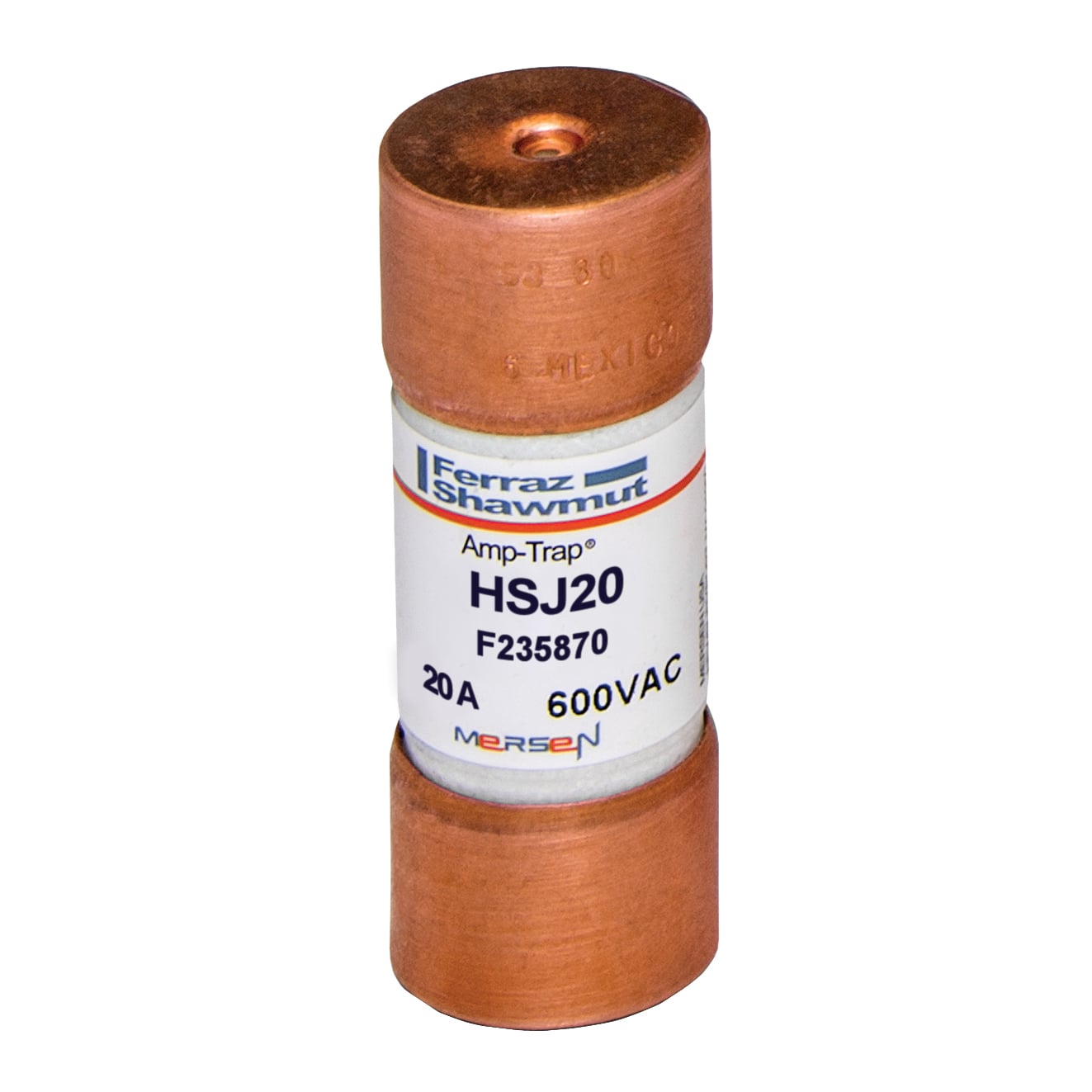

Fuse HSJ - Class J - High-Speed 600VAC 500VDC 20A Ferrule Amp-Trap
Manuals and Documentation
| Catalog Number | HSJ20 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Branch circuits Control panels Electronic motor controllers Phase controllers Drives Soft-starters Solid state relays |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Optimized over-load capability for withstanding elevated levels of current during electronic motor controller starts Low I2t (low thermal energy) Excellent cycling ability for frequent starts/stops without nuisance opening |
| Standard | UL listed to standard 248-8 File E2137 CSA certified to standard C22.2 no. 248.8 DC listed to UL 248 |
| UPC | 782001329471 |
| GTIN | 00782001329471 |
| Item Type | Class J |
| Size | 2.25 x 0.81 |
| Voltage Rating | 600 |
