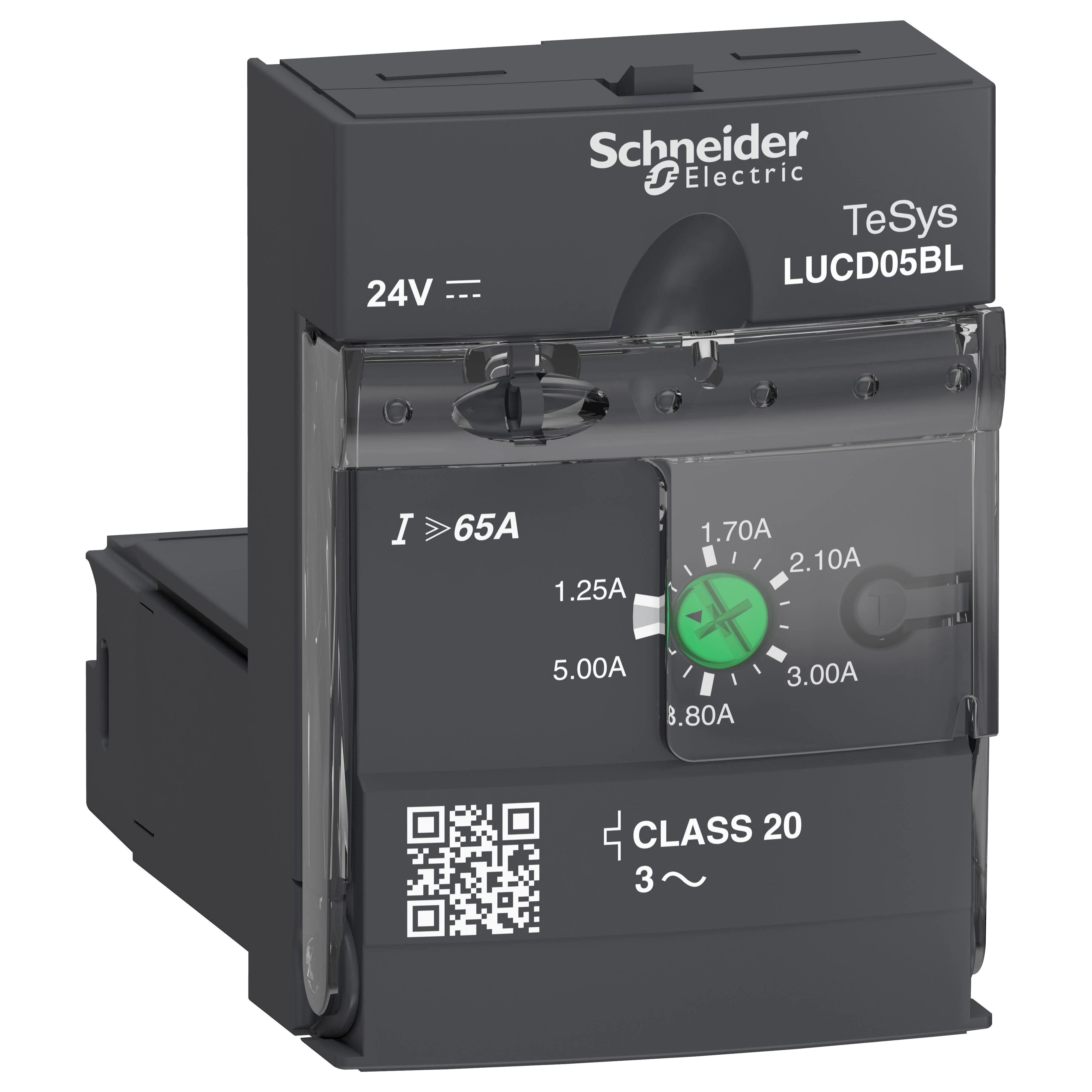

LUCD05BL TeSys LUCD 3-Phase Class 20 Solid State Advanced Control Unit
- MFR:
- Schneider Electric
- MFR #:
- LUCD05BL
- UPC:
- 785901265603
- Item #:
- 205875
LUCD05BL TeSys LUCD 3-Phase Class 20 Solid State Advanced Control Unit
- MFR #:
- LUCD05BL
- UPC:
- 785901265603
- Item #:
- 205875
Availability
| Location | Available Qty |
|---|---|
| Available | 5 ea |
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
Features
- Protection against overload and short-circuit
- Control unit includes electronic components and the current adjustment dial
- Modular, plug and play structure helps you to perform quick maintenance
- Direct access to detailed information for every motor starter of your installation
- Advanced motor management system
| Manufacturer Part Number | LUCD05BL |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901265603 |
| EAN | 3389110364811 |
| Country Of Origin | FR |
| Amperage Rating | 1.25 to 5 A |
| Dimensions | 3.9 in L x 3.1 in W x 2 in H |
| Enclosure Type | IP20/IP40 |
| Mounting Type | DIN Rail/Plug-In |
| Series | TeSys™ LUCD |
| Temperature Rating | -25 to 70 deg C |
| Type | 3-Phase Class 20 Solid State |
| Voltage Rating | 24 V DC |
| Alternative Part Number | 8114737 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | RoHS Compliant | CSA C22.2 No. 14 Type E | EN 60947-6-2 | IEC 60947-6-2 | UL 508 Type E | ASEFA Certified | GL Certified | Lloyd's Register Certified | CCC Certified | BV Certified | UL Listed | ATEX Compliant | GoST-R Certified | ABS Certified | DNV Certified | IEC 60947-1 | Green Premium | REACH Compliant | WEEE Compliant |
| Application | For ASILUFC5, ASILUFC51 AS-interface module, LUFC00, LUFDA01, LUFDA10, LUFDH11, LUFN function module, LUFV2, LUFW10, LULC031, LULC033, LULC07, LULC08, LULC09, LULC15 communication module |
| Electrical Connections | Wired |
| Frequency Rating | 50/60 Hz |
