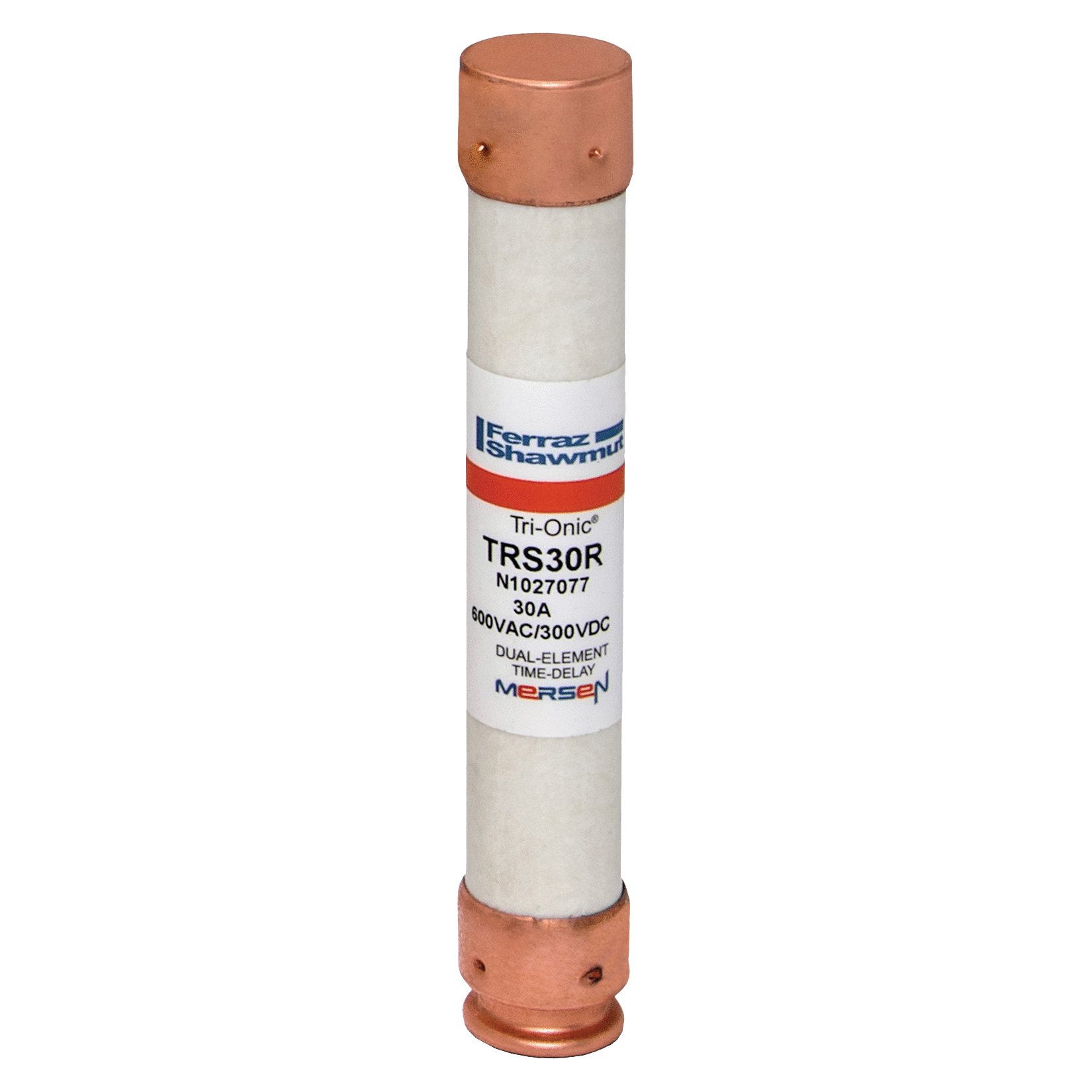

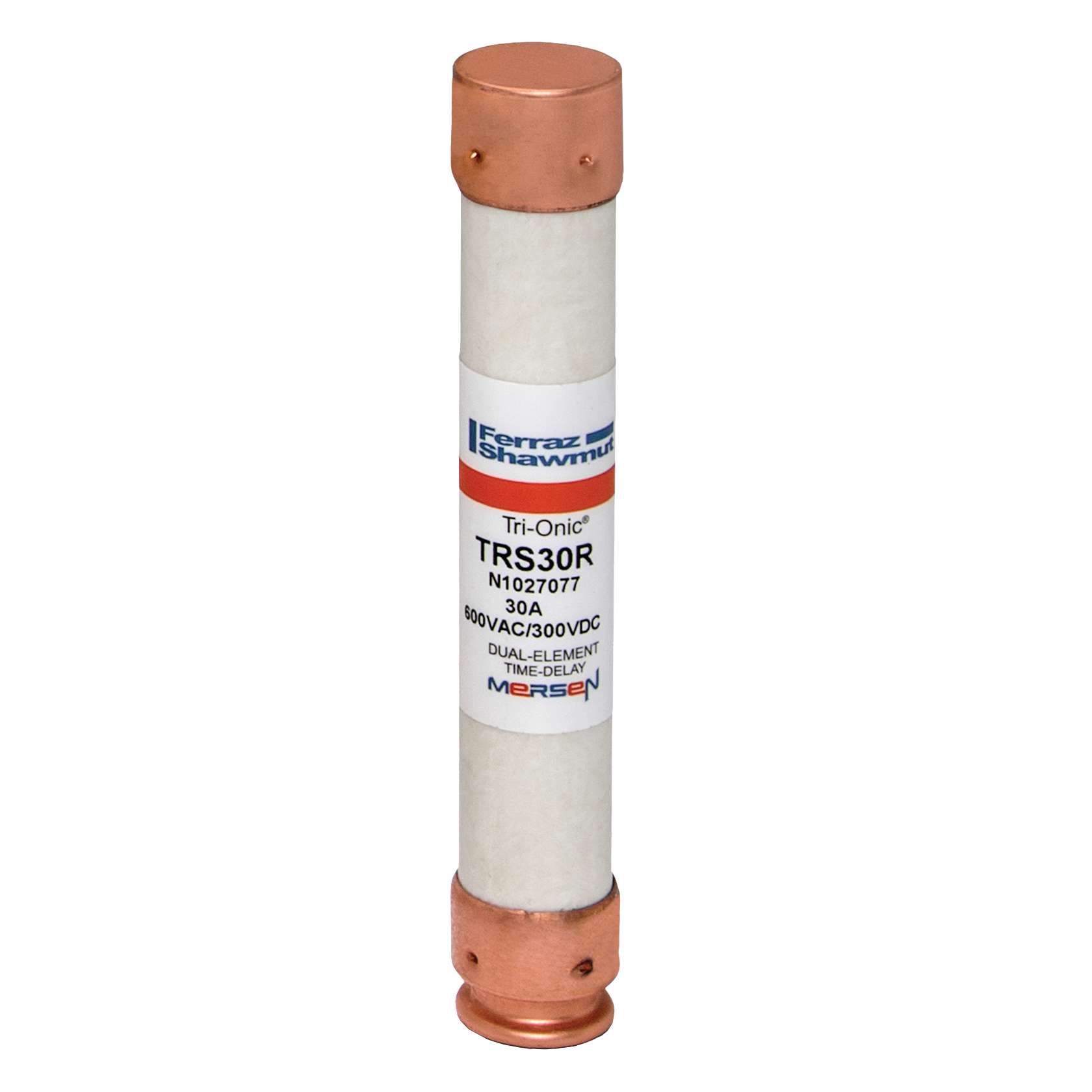

TRS30R Tri-Onic Current Limiting Low Voltage Time Delay Fuse, 30 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- TRS30R
- UPC:
- 782001748869
- Item #:
- 2056
TRS30R Tri-Onic Current Limiting Low Voltage Time Delay Fuse, 30 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
- MFR #:
- TRS30R
- UPC:
- 782001748869
- Item #:
- 2056
Availability
| Location | Available Qty |
|---|---|
| Available | 58 |
$52.09
each
Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 30A Ferrule Tri-Onic
Manuals and Documentation
| Catalog Number | TRS30R |
| Manufacturer | Mersen |
| Brand | Mersen |
| Amperage Rating | 30 |
| Application | Motor circuits Mains Feeders Branch circuits Transformers Service entrance equipment General-purpose equipment |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Time-delay Current-limiting AC & DC rated Optional solid state SmartSpot blown fuse indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse blocks) Easy-to-read label for quick brand recognition and replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and high current limitation |
| Standard | UL listed to standard 248-12 File E2137 CSA certified to standard C22.2 no. 248.12 DC listed to UL standard 248 TRS only |
| UPC | 782001748869 |
| GTIN | 00782001748869 |
| Item Type | Class RK5 |
| Size | 5 x 0.81 |
| Voltage Rating | 600 |
