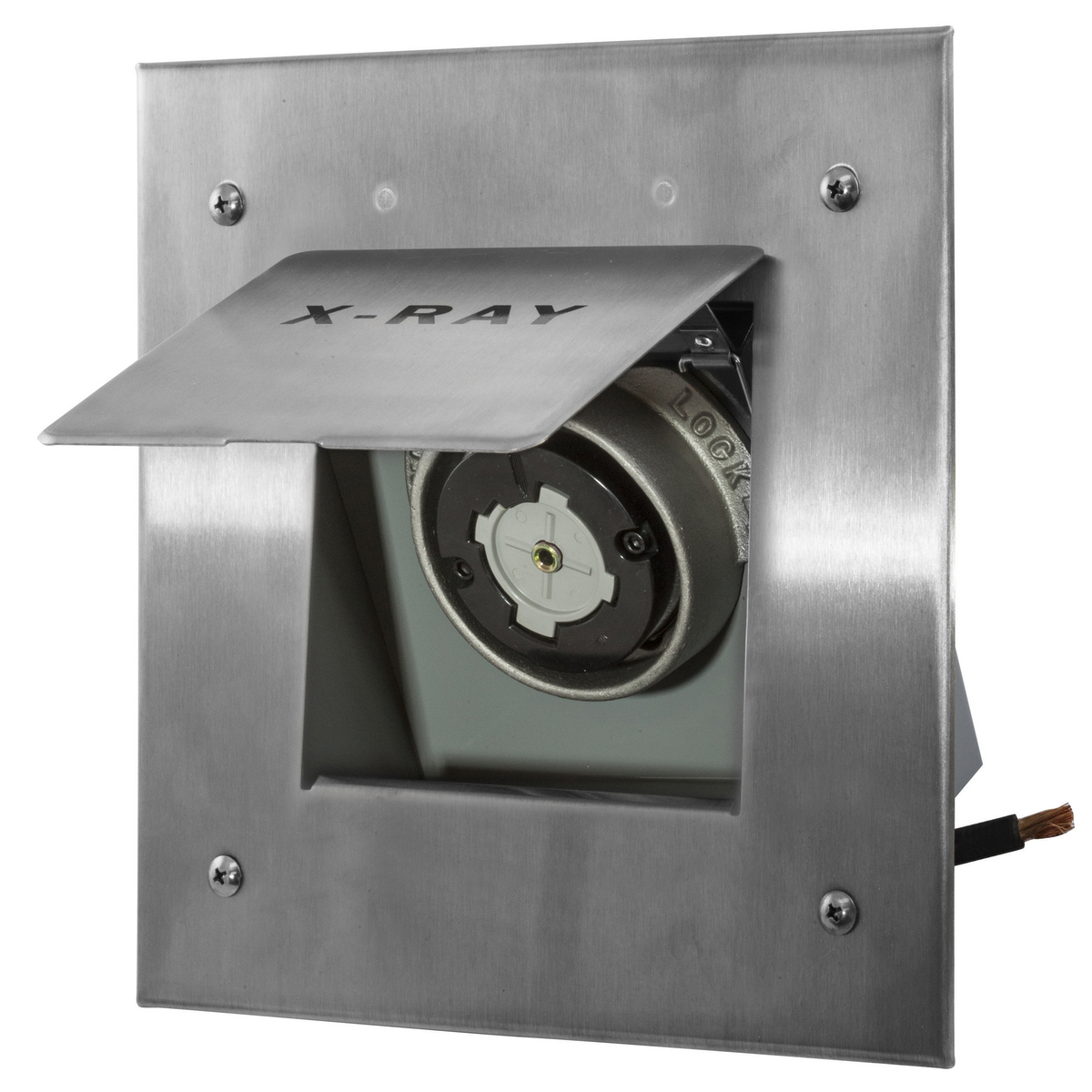

HBL25605 Grounding Standard Single Screw Mount Locking Receptacle, 250 V AC, 60 A, 2 Poles, 3 Wires, Black/Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL25605
UPC:
783585016085
Item #:
205435

Availability

Location Available Qty
Available Available to Order
$4,066.99 each

The Hubbellock devices feature an exclusive design unlike any other in the industry. The unique design is built to provide the safest heavy duty device even in some of the harshest environments. These Hubbellock plugs and connector bodies are built with a super tough nylon housing for high impact resistance and a one of kind interior design for superior safety that Hubbell is known for. The male contacts are molded into the nose for damage resistance and completely eliminate the chance of deformity. Additionally, the plug as well as the connector retains power mechanical cord grips that not only secure the cable but also clamp down on the conductors in order to provide unrivaled strain relief. Inside the connector is Hubbell's unique safety design. With unparalleled box terminations the connector interior holds a spring-loaded safety shutter to provide the ultimate arc protection. Furthermore the exceptional heat and impact resistance is maintained by the thermoplastic interior contributing toa longer lasting device. In all, the one of a kind function of the Hubbellock devices provide a safe and dependable performance in the most demanding applications.

Manuals and Documentation
Catalog Number HBL25605
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 60
Application Mobile X-Ray Devices
Color Black; Gray
Connection Pressure Screw Terminals
Material Thermoplastic
Mounting Screw
Number of Poles 2
Number of Wires 3-Wire Grounding
Phase 1
Special Features With Cast Aluminum Plate
Standard UL 498
UPC 783585016085
GTIN 00783585016085
Item Type Single Receptacle
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 250V kV
Wattage 15,000
Wire Size #4 AWG
