Telemecanique

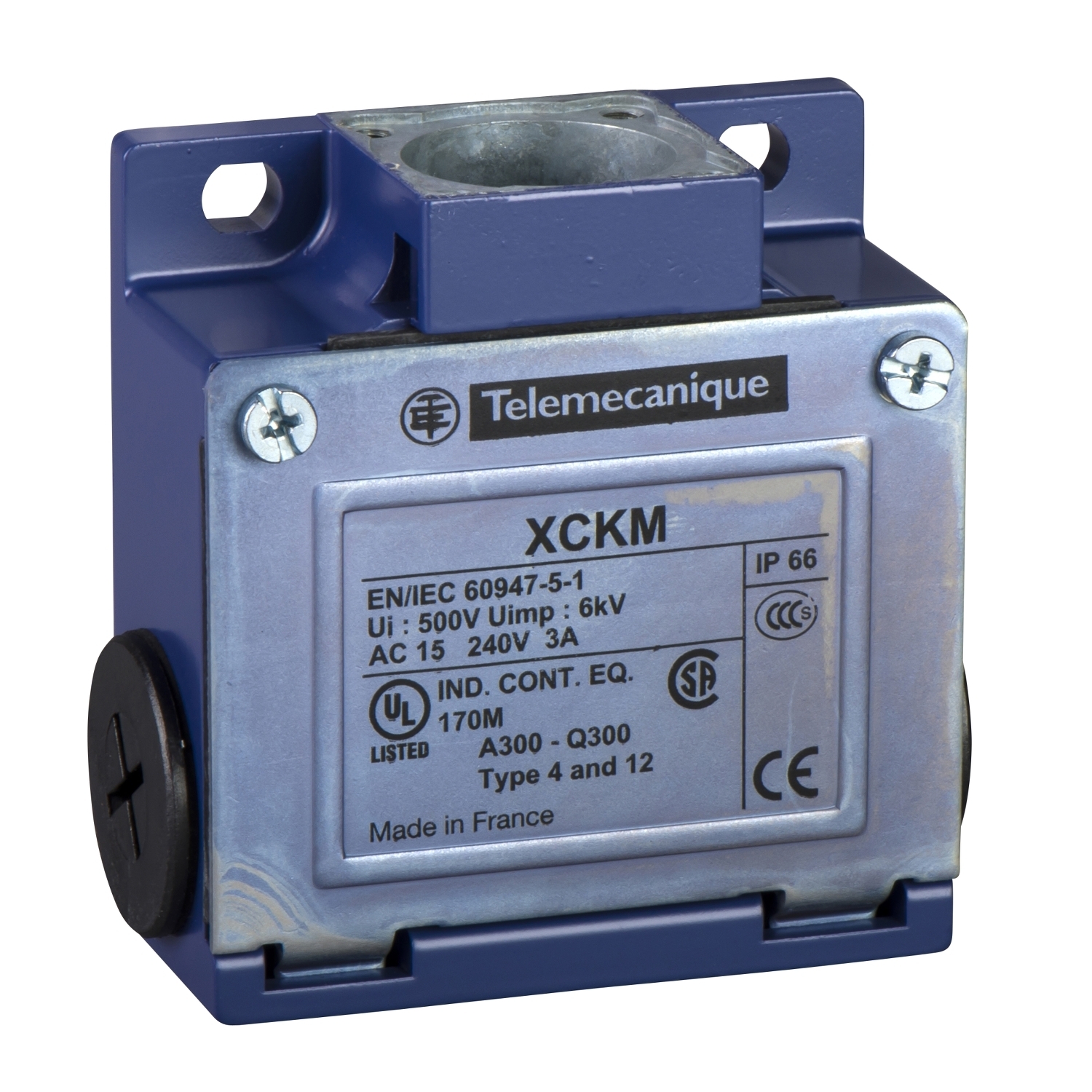

ZCKM7 OsiSense XC 2-Pole Fixed Switch Body, 2NC Contact, For Use With XCKM and ZCKM Series Standard Format Limit Switch, 10 A Contact, IP66/IK07 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKM7
UPC:
785901778073
Item #:
205408

Availability

Location Available Qty
Available Available to Order
$152.85 each

This body, with a 2-pole contact block, is a separate part for the XCKM limit switches. Contacts: 1 NO + 1 NC, simultaneous, slow break. It is a classic format body, with 3 tapped entries for Pg 11 cable gland.

Manuals and Documentation
Catalog Number ZCKM7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Germany
Made in USA No
Action Slow-break, simultaneous
Amperage Rating 10
Application XCKM
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 2 NC
Enclosure IP66
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK05,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879922&lang=en-us
UPC 785901778073
GTIN 03389110663402
Item Type Limit switch body
Size 1.18
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature -25-70 A Degrees C STANDARD ENVIRONMENT
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
