Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.766
foot

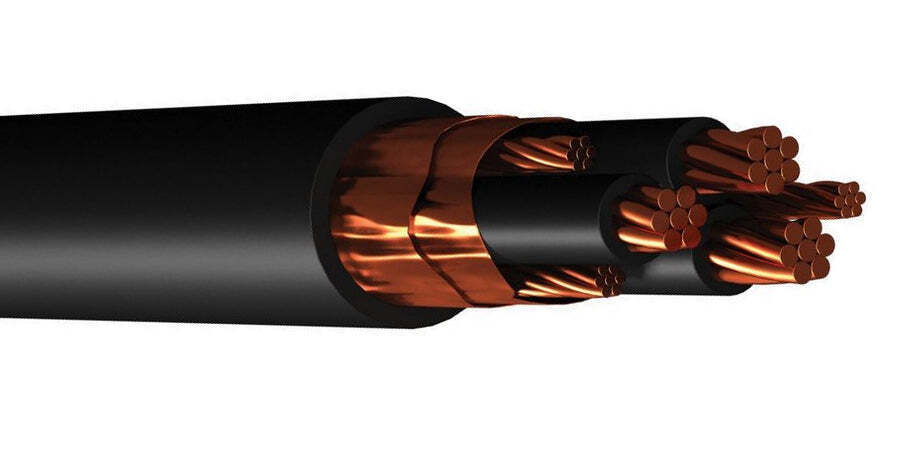

| Catalog Number | BEL29522C |
| Manufacturer | Omni Cable |
| Brand | Omni |
| Country of Origin | France |
| Amperage Rating | 30A |
| Bend Radius | 4.6 Inch |
| Color | Black |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Insulation Material | Cross-Linked Polyolefin |
| Jacket | 0.06 |
| Jacket Material | PVC |
| Number of Conductors | 3 |
| Resistance | 1.6 Ohm/1000 ft |
| Standard | NEC 336 - ER, NEC/(UL) TC-ER, XHHW-2 Singles, CSA 1000 V AWM I/II A/B, PMSHA P-07-KA070003-MSHA |
| Outside Diameter | 0.46 |
| Environmental Conditions | UL1685 UL Loading, VW-1 (Singles), CSA FT4 Flammability, IEEE 1202 Flammability |
| Temperature Rating | -40 to 90 deg C Wet/Dry |
| Voltage Rating | 600 |
