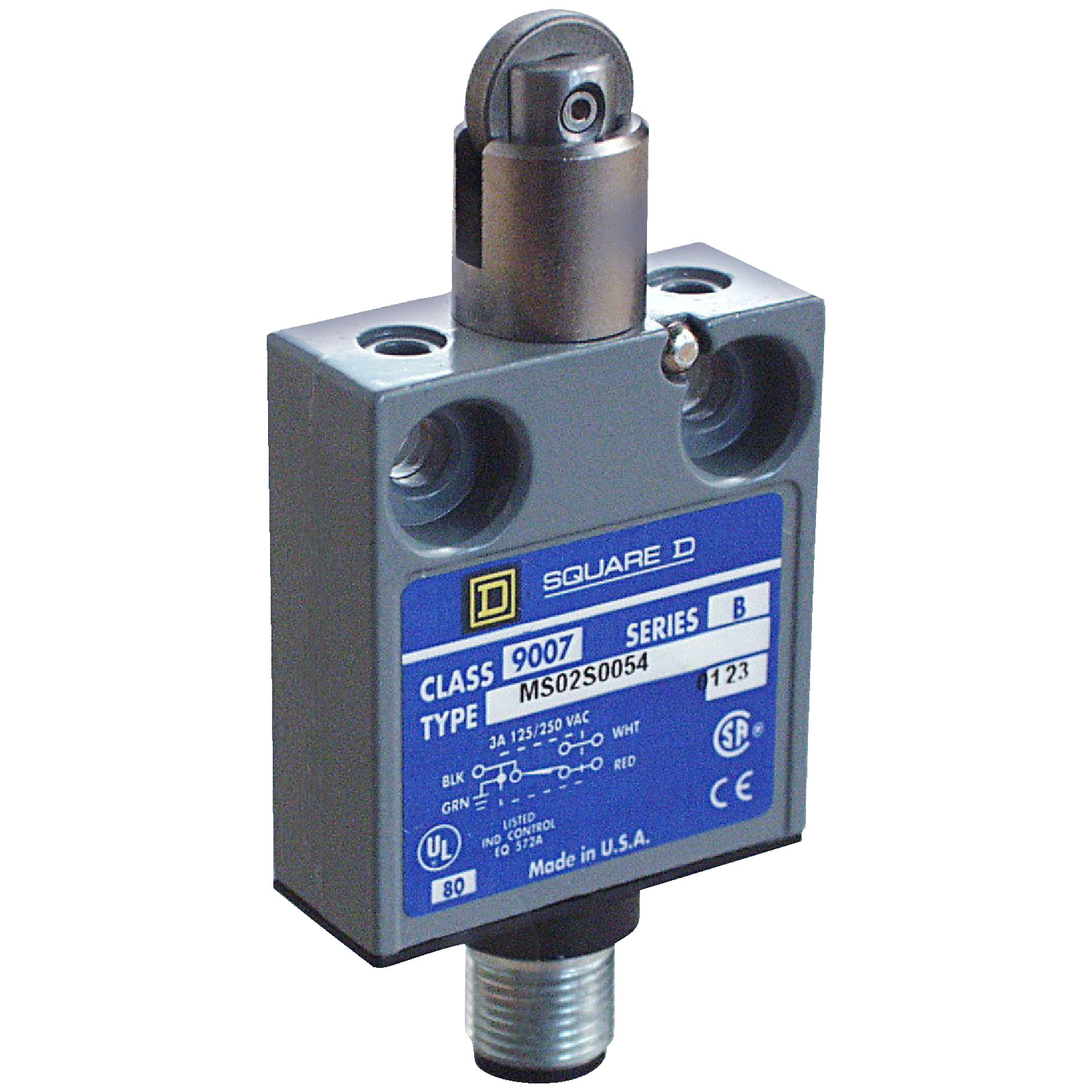

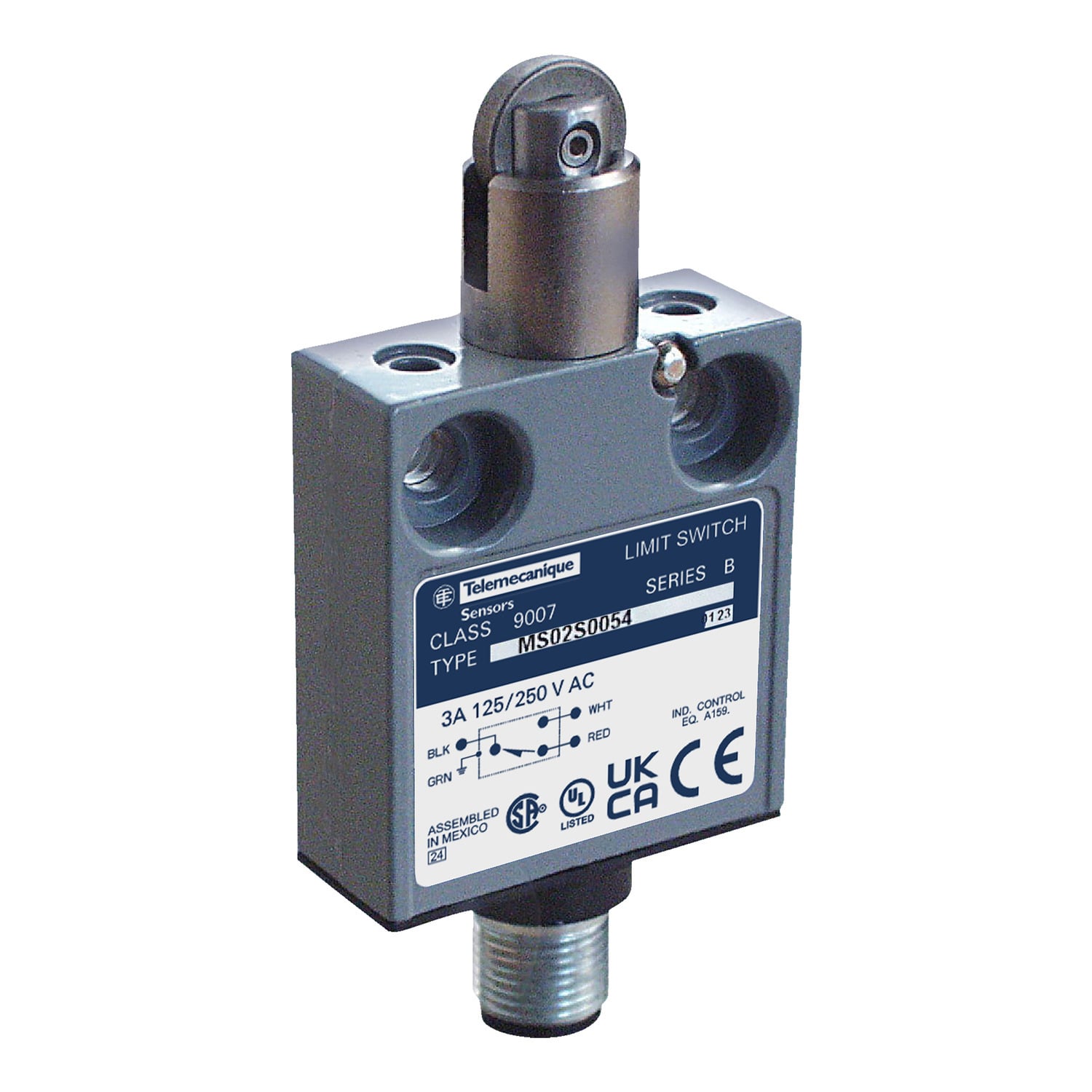

9007MS02G0054 Miniature Potted Limit Switch, 240 V AC/28 V DC, 3 A, Roller Horizontal/Parallel Actuator, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007MS02G0054
- UPC:
- 785901711636
- Item #:
- 205348
9007MS02G0054 Miniature Potted Limit Switch, 240 V AC/28 V DC, 3 A, Roller Horizontal/Parallel Actuator, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR #:
- 9007MS02G0054
- UPC:
- 785901711636
- Item #:
- 205348
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$351.32
each
LIMIT SWITCH 240VAC 3 AMP MS +OPTIONS
Manuals and Documentation
| Catalog Number | 9007MS02G0054 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | By 30 Degrees cam;Lateral approach, 2 directions;Snap action |
| Actuator | Spring return parallel roller plunger steel - |
| Amperage Rating | 3 |
| Application | 9007MS/ML,MINIATURE POTTED,PLUNGER HEAD |
| Connection | Male connector M12 micro DC type 4 pins bottom |
| Contact Configuration | NC-NO;Form C |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250 |
| Mounting | By The Body |
| Operating Cycles | 100000 CYCLES |
| Special Features | FIXED,METAL |
| Standard | 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,CE-UL-CSA,E78403-LR 25490 CLASS 32 11 03,IP67 IEC 60529 |
| UPC | 785901711636 |
| GTIN | 00785901711636 |
| Item Type | Limit switch |
| Size | 0.62 |
| Operating Temperature | -40-220 A Degrees F |
| Voltage Rating | 100 MA 125 V AC-30 MA 28 V DC |
