Schneider Electric

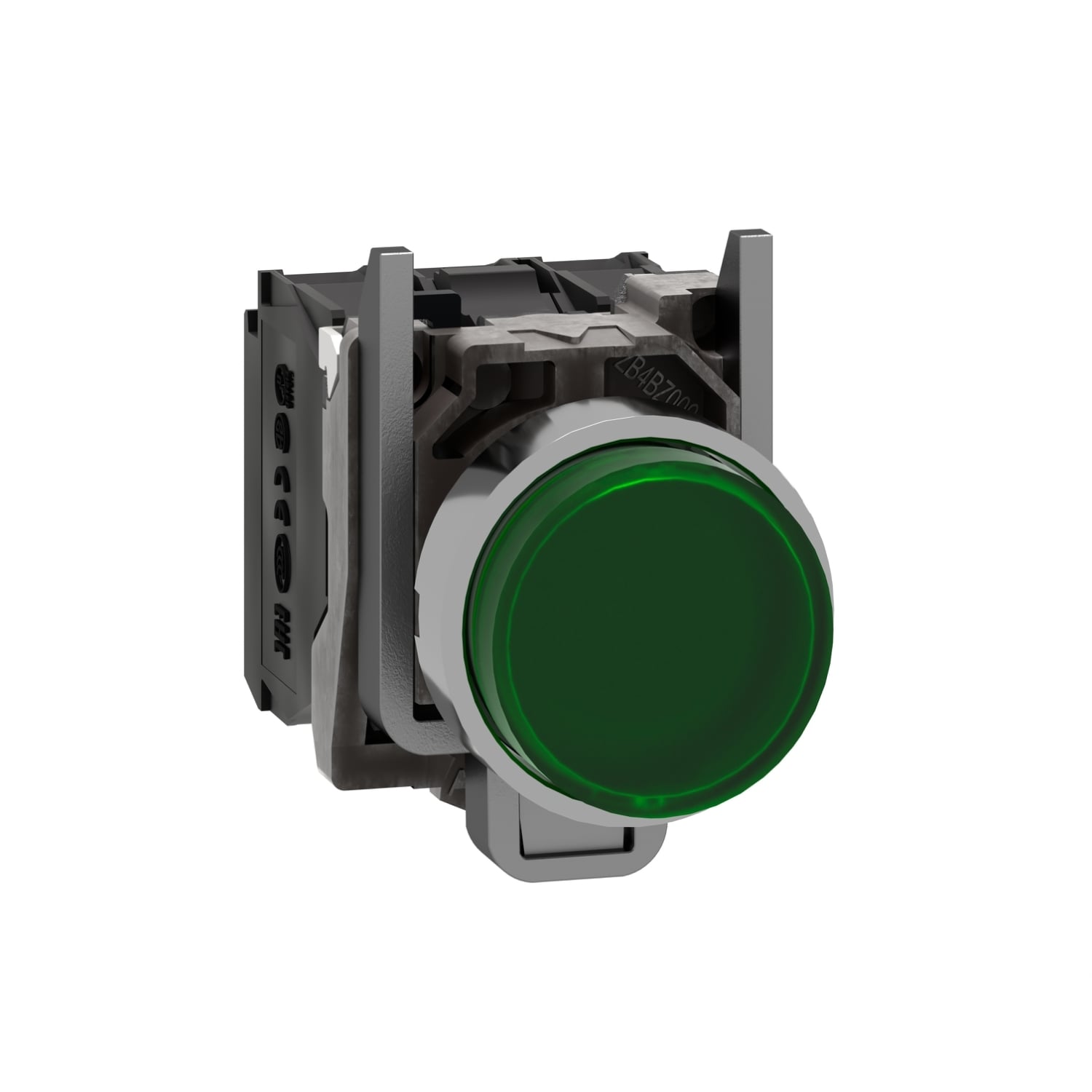

XB4BW13G5 Harmony Corrosion-Resistant Dust/Watertight Illuminated Pushbutton With Plain Lens, 101 mm, 22 mm, 30 mm, 47 mm, 1NO-1NC Contact, Green

MFR:
Schneider Electric
MFR #:
XB4BW13G5
Item #:
205257

Availability

Location Available Qty
Available Available to Order
$92.62 each

This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110-120V AC/DC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic spring return, plain lens, 1NO + 1NC, 110-120V. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Manuals and Documentation
Catalog Number XB4BW13G5
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break
Actuator spring return;Green flush
Connection Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1;screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

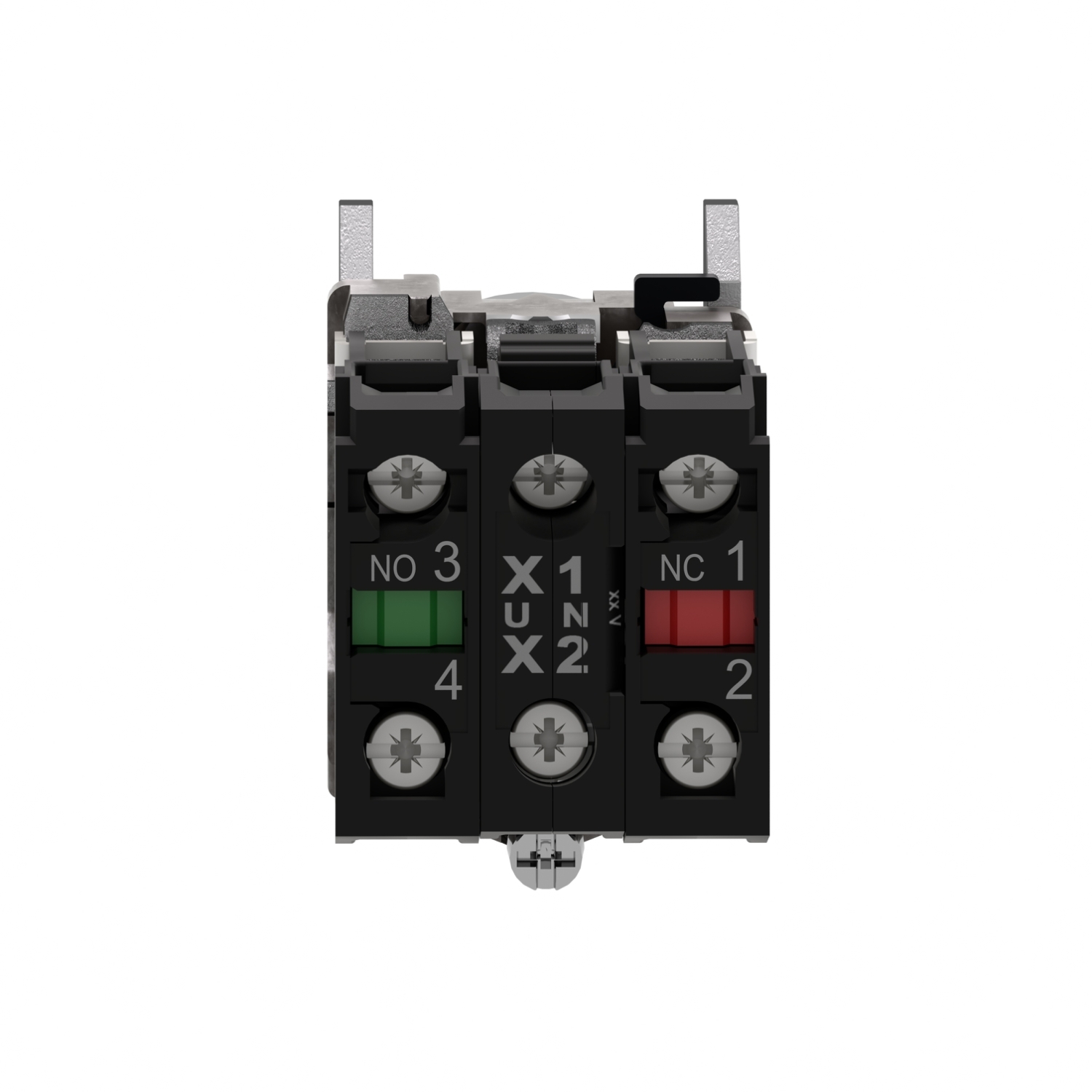

Contact Configuration 1 NO + 1 NC
Material Chromium plated metal
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55983952&lang=en-us
GTIN 03606485266664
Item Type Illuminated push-button
Width 1.18110
Width UOM Inch
Height 1.85040
Height UOM Inch
Depth 3.97640 IN
Voltage Rating 110...120 V AC 50/60 Hz
