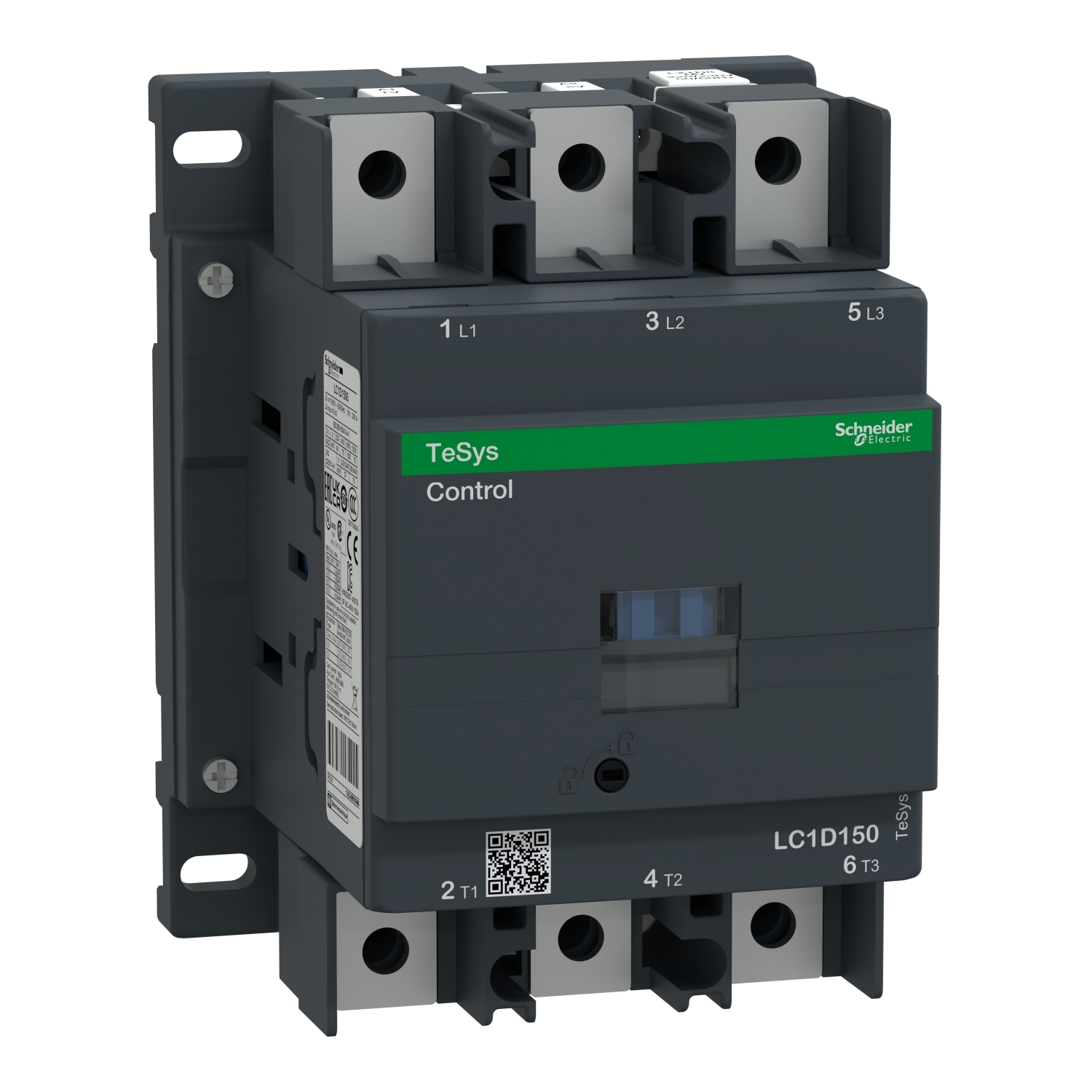

LC1D1506LE7 TeSys D Contactor With Safety Cover, 208 V AC V Coil, 200 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D1506LE7
- Item #:
- 205073
LC1D1506LE7 TeSys D Contactor With Safety Cover, 208 V AC V Coil, 200 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D1506LE7
- Item #:
- 205073
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 150A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. Contactor is supplied with a 208 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D1506LE7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Resistive load;motor control |
| Coil Voltage | 208 V AC 50/60 Hz |
| Connection | Control circuit: lugs-ring terminals - external diameter: 8 mm;power circuit: lugs-ring terminals - external diameter: 25 mm;power circuit: bars 1 - busbar cross section: 5 x 25 mm |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=613978&lang=en-us |
| GTIN | 03389110726756 |
| Item Type | Contactor |
