XY2CH13190H7 E-Stop Switch, 300/400 V, 6 A, 1NO-2NC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- XY2CH13190H7
- Item #:
- 205052
XY2CH13190H7 E-Stop Switch, 300/400 V, 6 A, 1NO-2NC Contact
- MFR #:
- XY2CH13190H7
- Item #:
- 205052
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$543.42
each

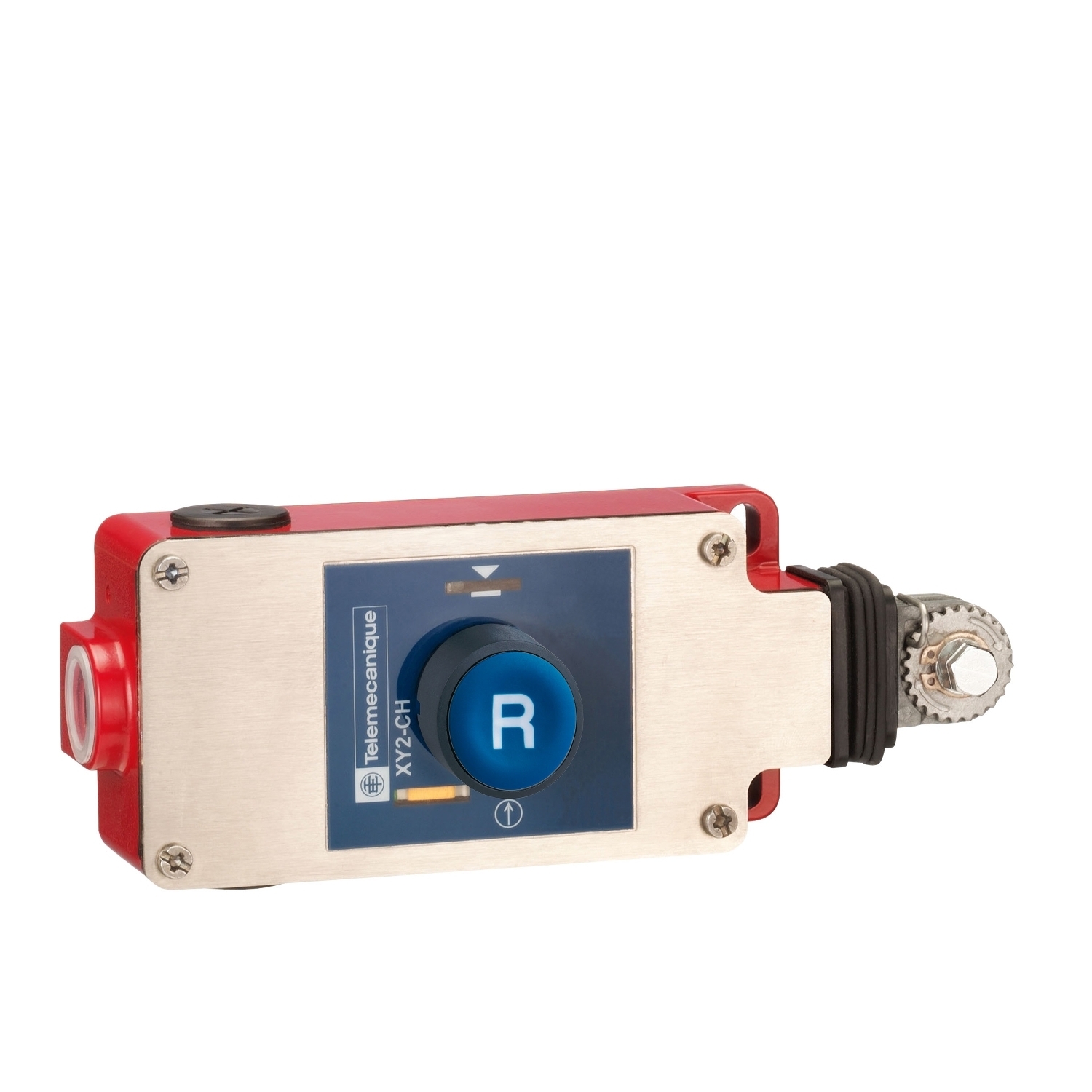

e-stop rope pull switch XY2CH - 2NC+1NO - flush pushbutton
Manuals and Documentation
| Catalog Number | XY2CH13190H7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break |
| Amperage Rating | 6 |
| Application | XY2CH,XY2CH |
| Color | Red RAL 3000 |
| Connection | Screw clamp terminal, 1 x 0.34...1 x 1 mm²;screw clamp terminal, 1 x 0.34...2 x 0.75 mm² |
| Contact Configuration | 2 NC + 1 NO |
| Enclosure | Stainless steel |
| Special Features | Without pilot light |
| Standard | 10 GN 10-150 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,EN/IEC 60204-1-CSA C22.2 NO 14-WORK EQUIPMENT DIRECTIVE 2009/104/EC-EN/ISO 13850-EN/IEC 60947-5-1-EN/IEC 60947-5-5-UL 508-MACHINERY DIRECTIVE 2006/42/EC,IP65 IEC 60529,UL CATEGORY NISD EMERGENCY STOP DEVICES-CSA-CCC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=150036339&lang=en-us |
| GTIN | 03389119074070 |
| Item Type | Latching emergency stop rope pull switch |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 APPENDIX A-1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 APPENDIX A |
