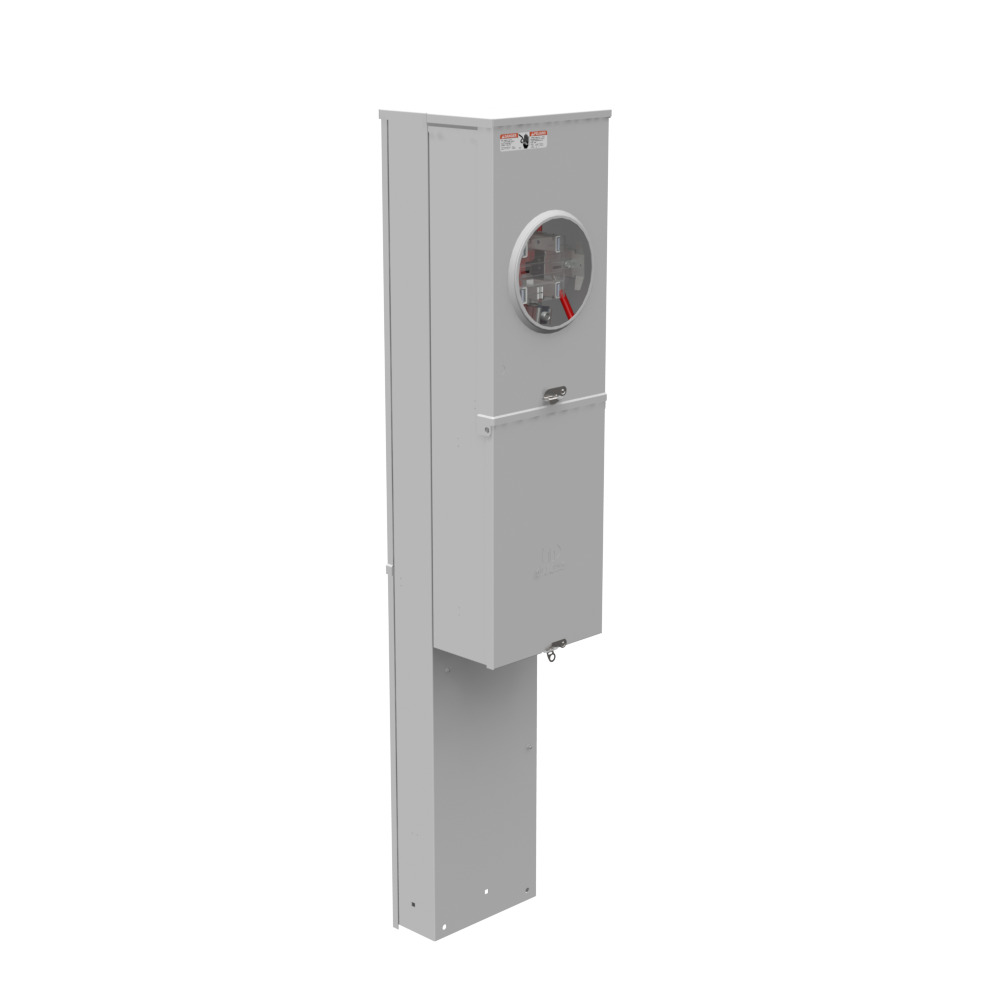

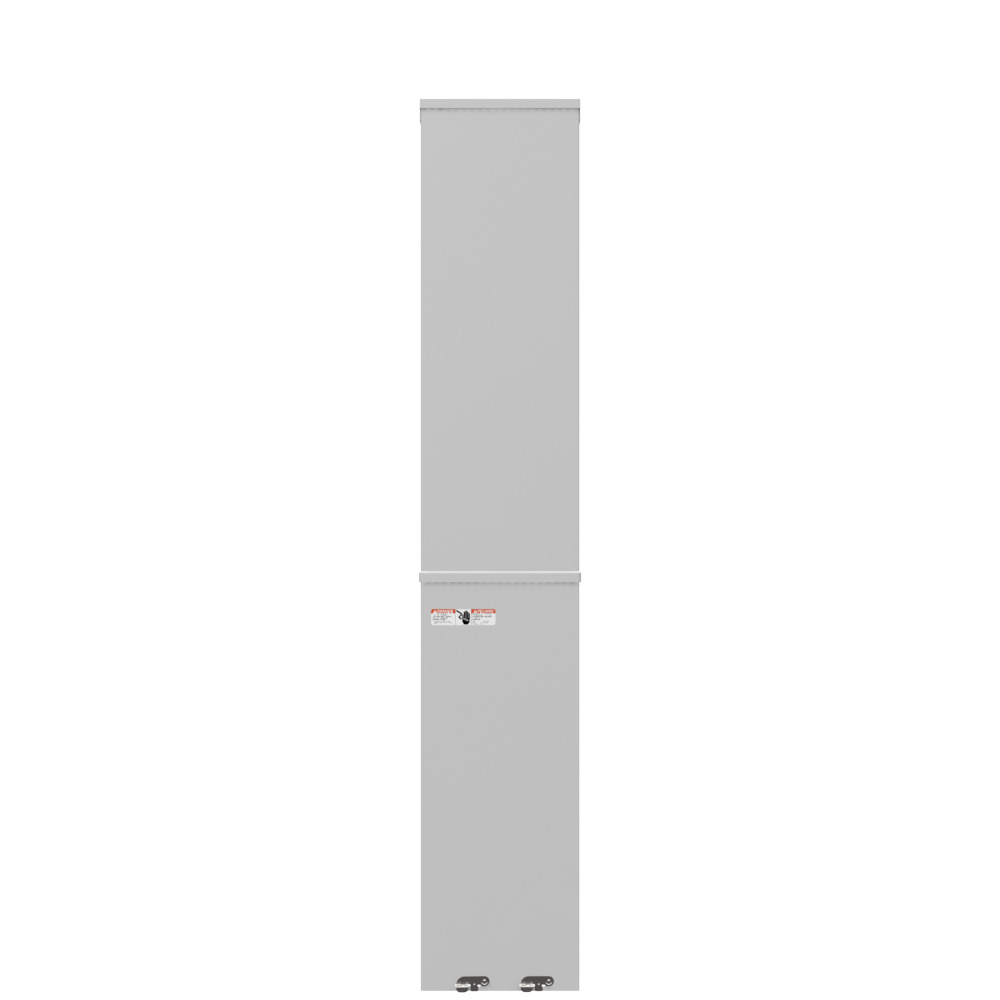

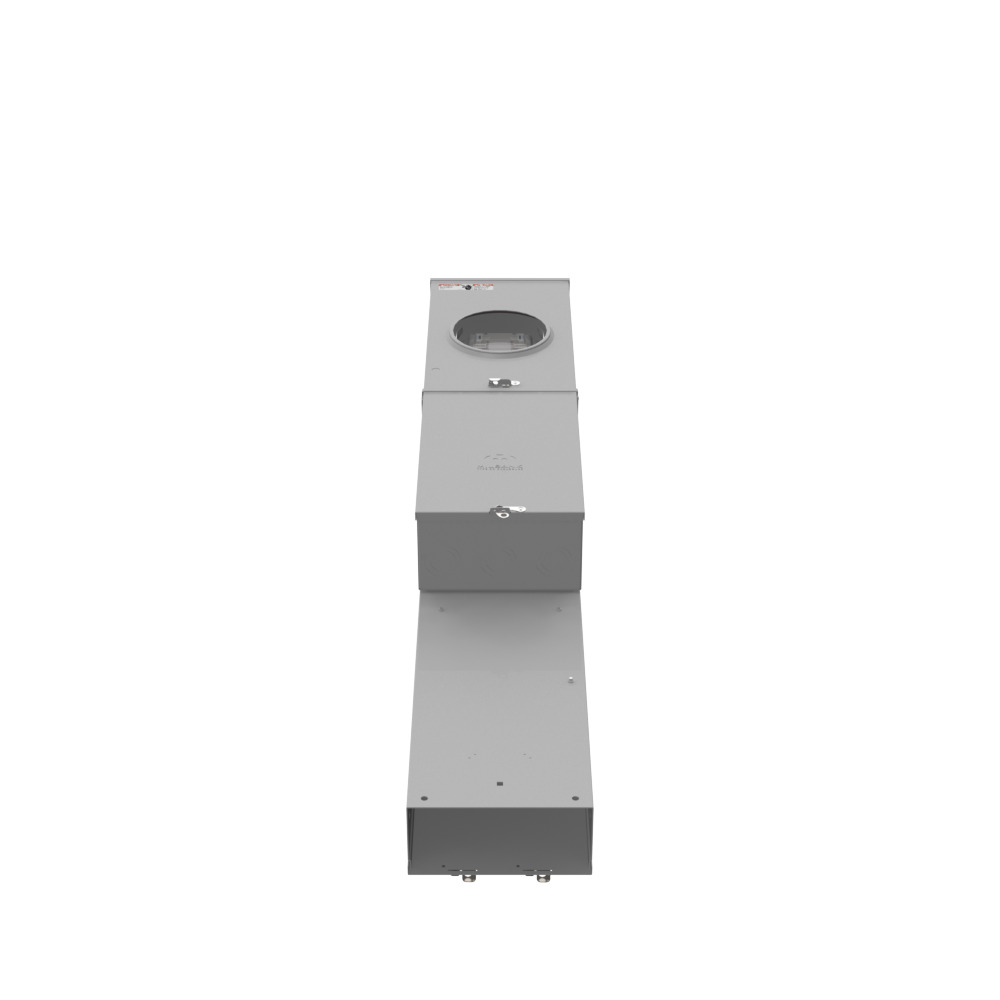

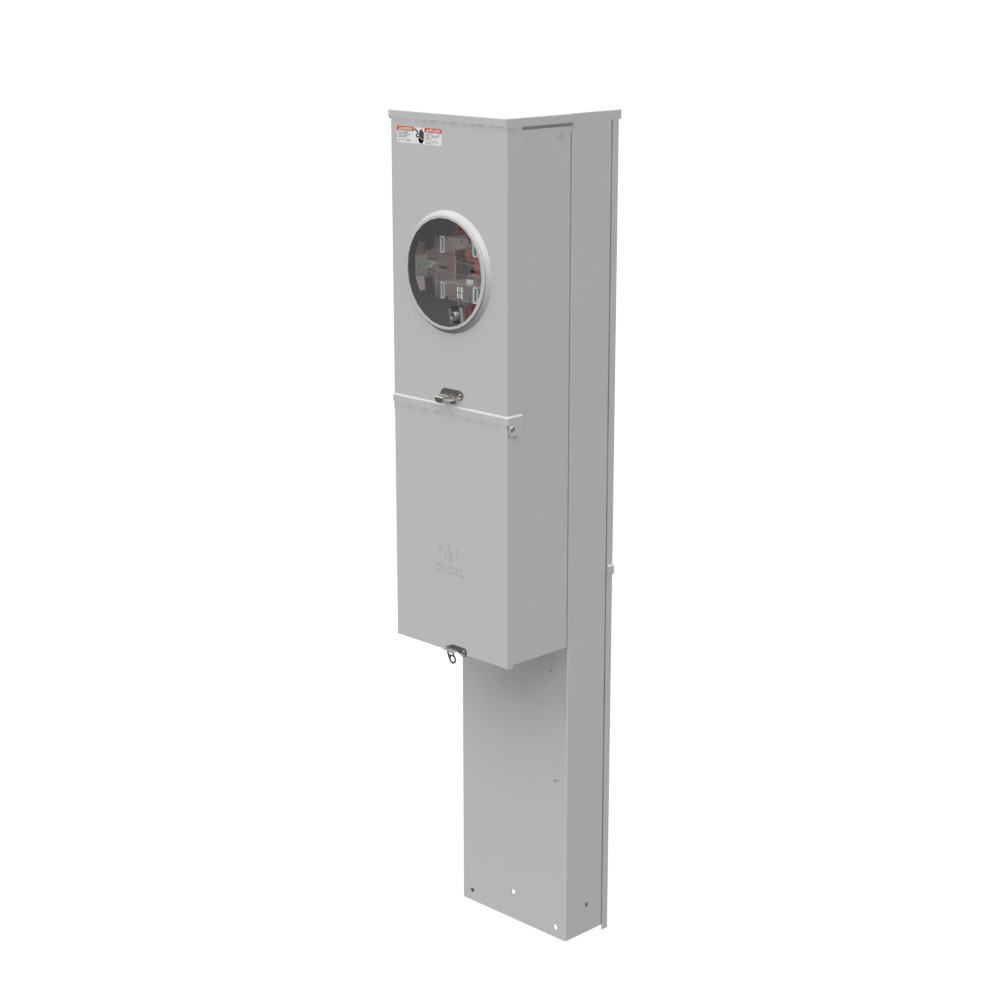

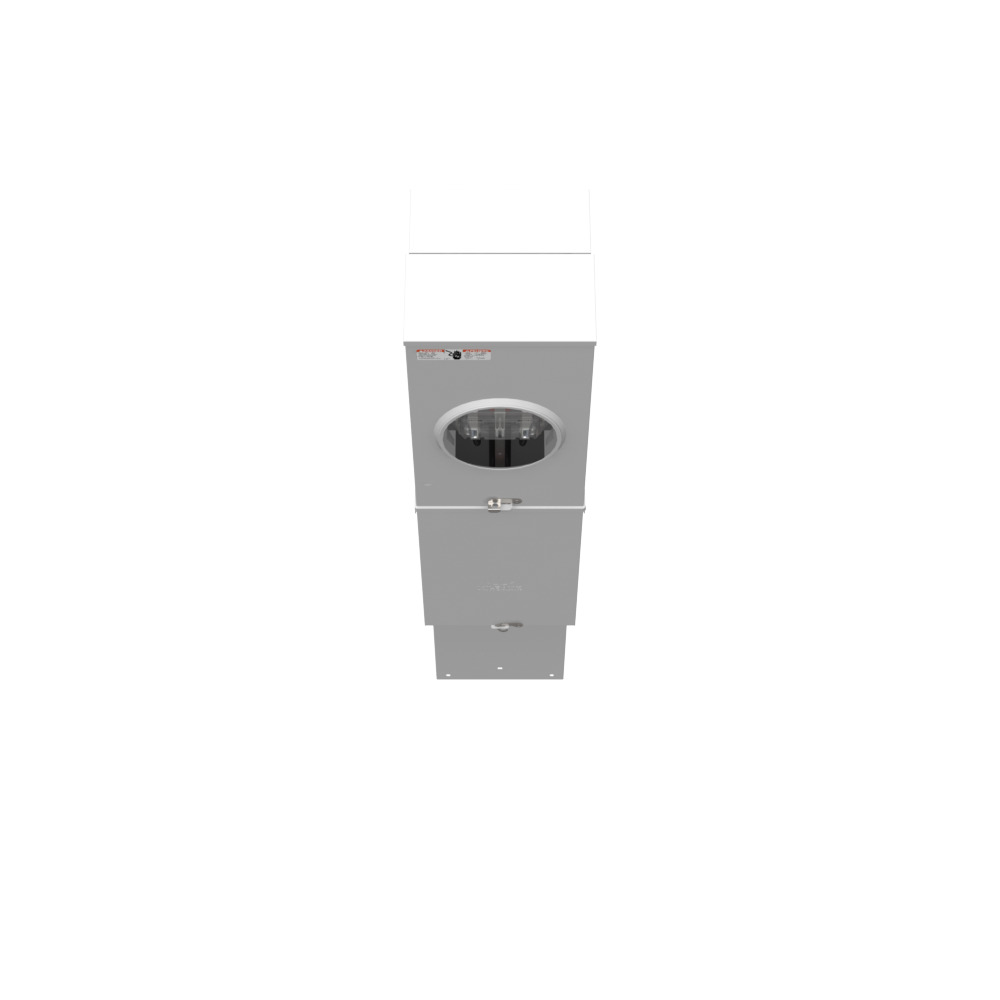

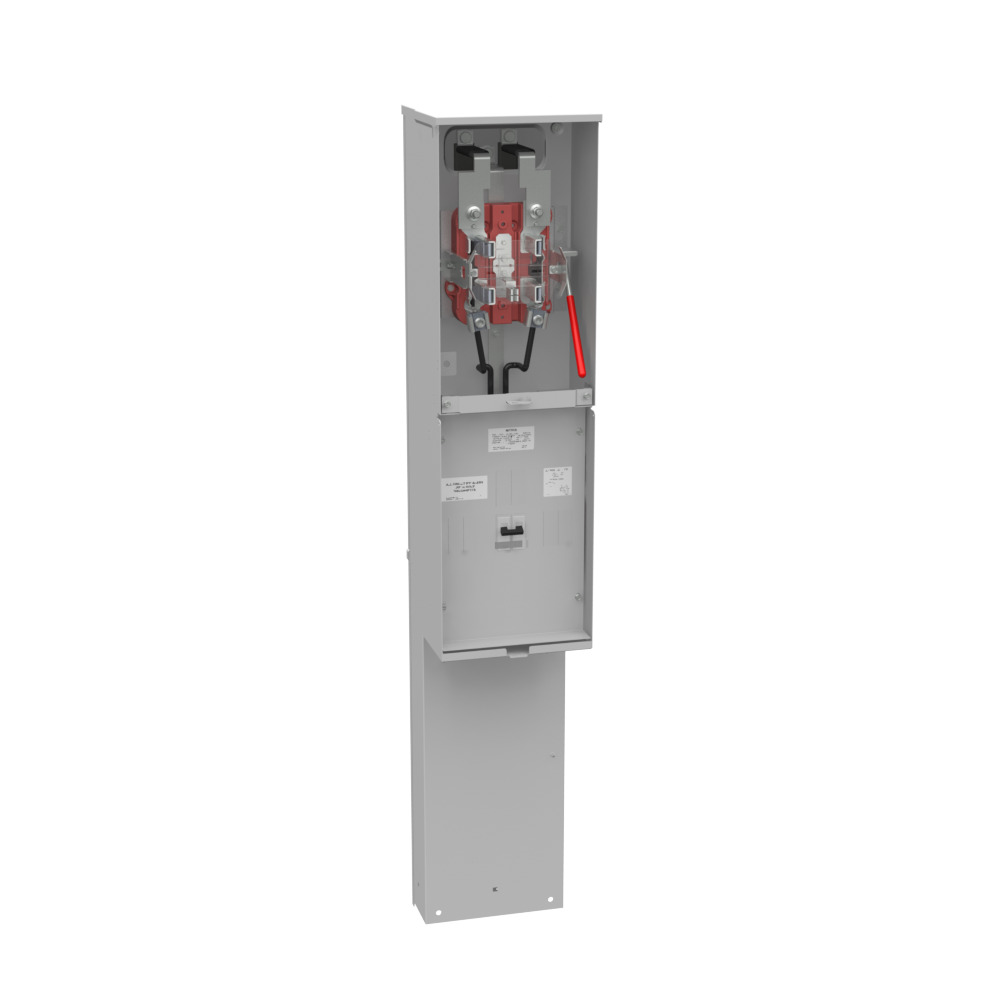

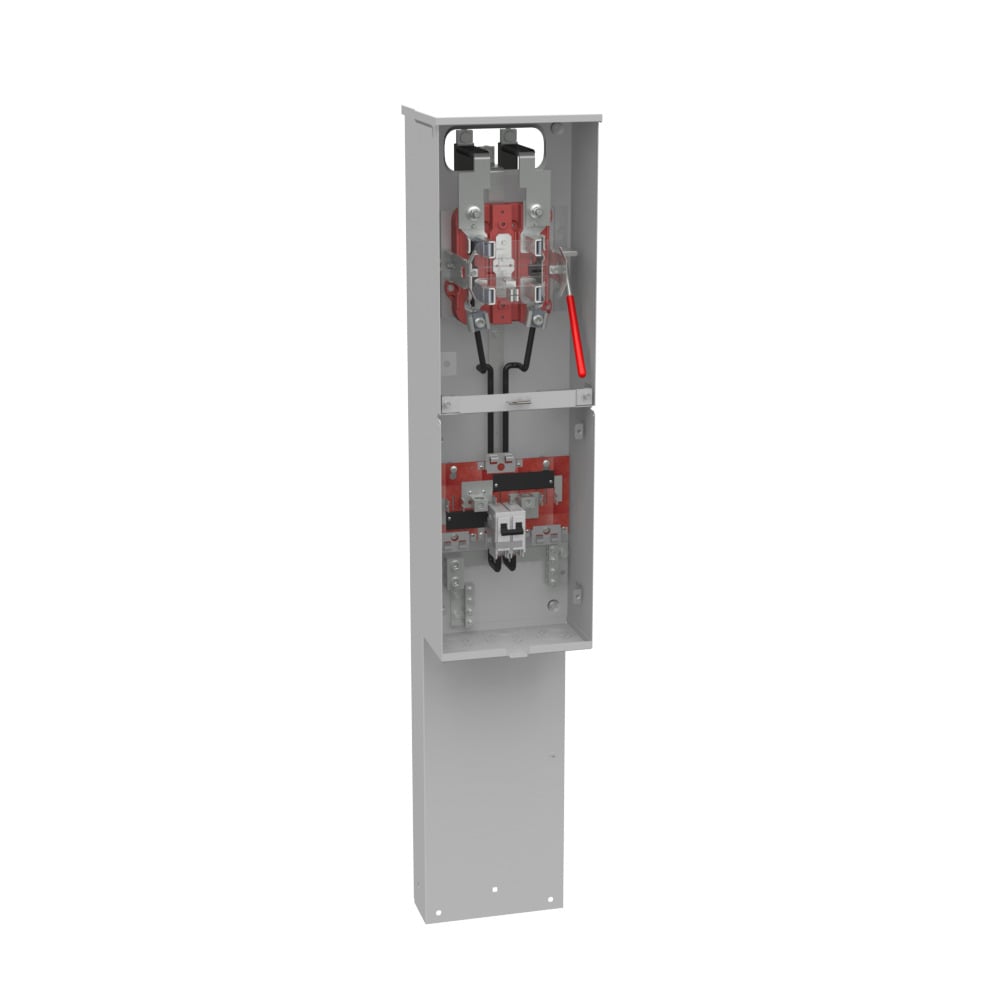

U4322-O-100MB-5T6 4 Term, Ringless, Plain Top, Lever Bypass, 1-100 Amp, Main Breaker, 5th Term 6 Oclock Position, Single Pedestal Direct Bury
- MFR:
- Milbank
- MFR #:
- U4322-O-100MB-5T6
- UPC:
- 784572262393
- Item #:
- 204976
U4322-O-100MB-5T6 4 Term, Ringless, Plain Top, Lever Bypass, 1-100 Amp, Main Breaker, 5th Term 6 Oclock Position, Single Pedestal Direct Bury
- MFR #:
- U4322-O-100MB-5T6
- UPC:
- 784572262393
- Item #:
- 204976
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,566.97
each
4 TERM RNGLS PLAIN TOP LVR BYPS 1-100 AMP MN BRKR 5TH TERM 6 OCLOCK POS SGL PED DIR BURY
Manuals and Documentation
| Catalog Number | U4322-O-100MB-5T6 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | Meter Socket With Main And Load Center |
| Bypass Type | Lever |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 5 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572262393 |
| GTIN | 00784572262393 |
| Item Type | Ringless Meter Socket |
| Length | 9.625 |
| Length UOM | Inch |
| Width | 9.875 |
| Width UOM | Inch |
| Height | 55 |
| Height UOM | Inch |
| Size | 9.625L x 9.875W x 55H |
| Terminals | Double Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
