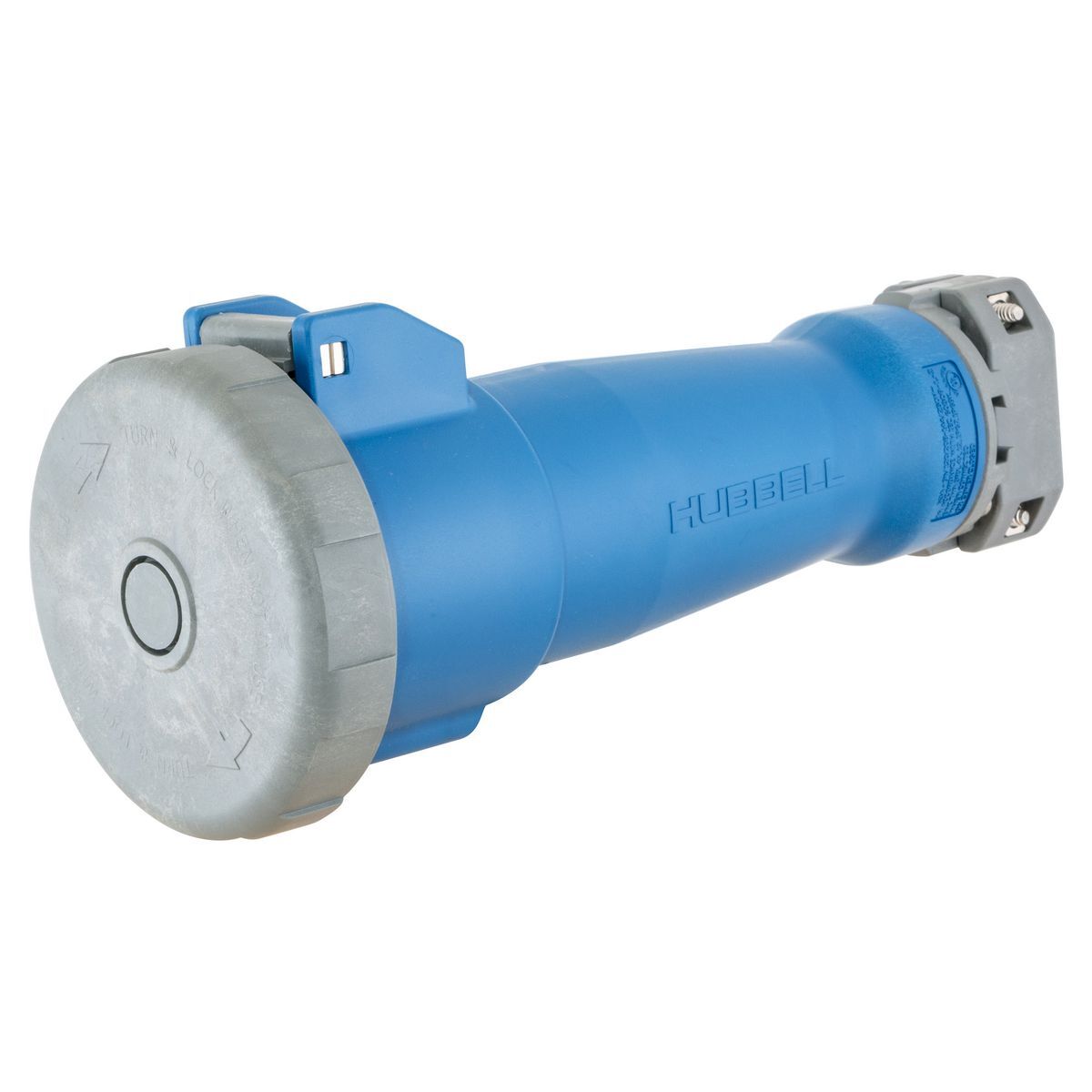

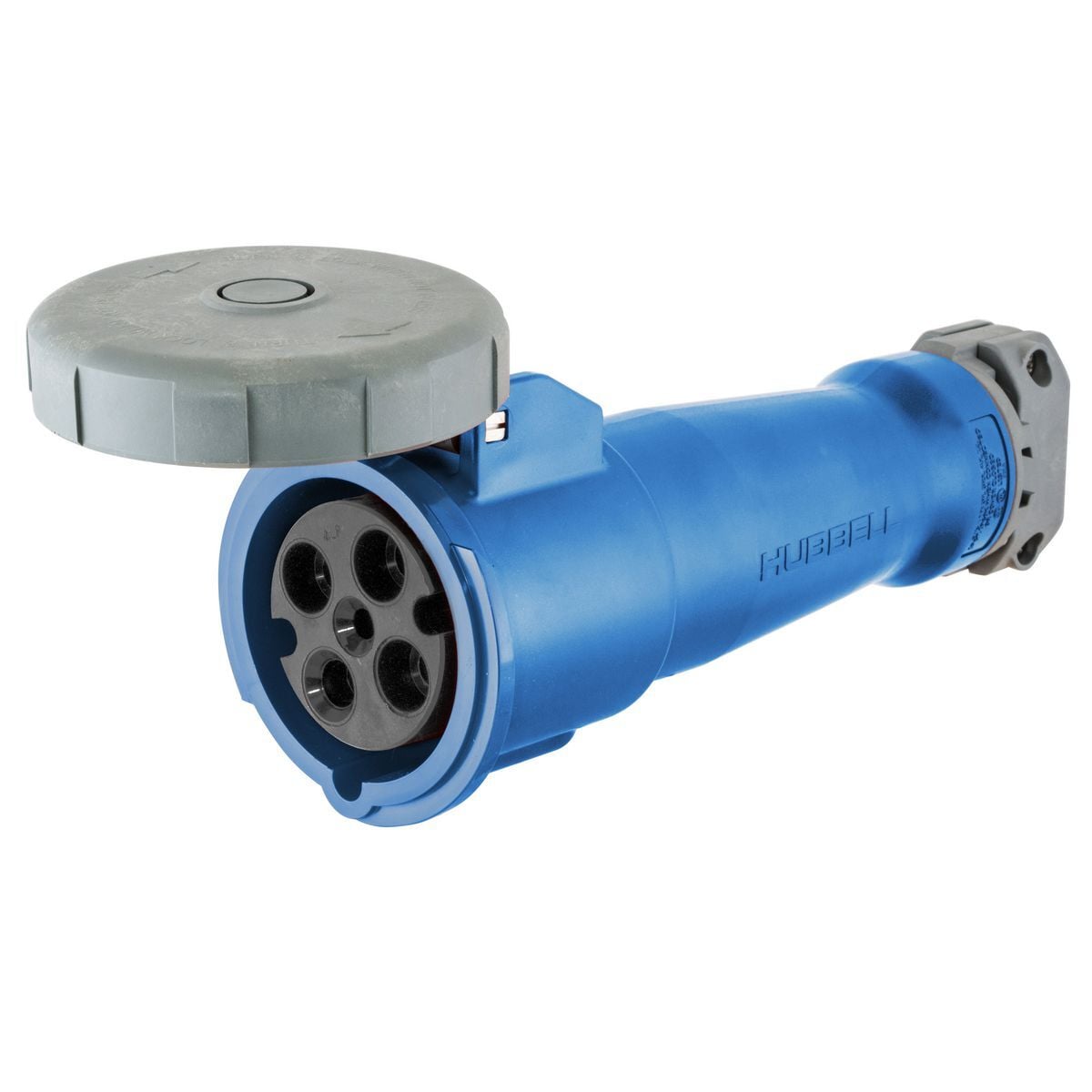

HBL430C9V04 Watertight Pin and Sleeve Connector, 250 V AC, 32 A, 3 Poles, 3 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL430C9V04
- UPC:
- 783585404530
- Item #:
- 204912
HBL430C9V04 Watertight Pin and Sleeve Connector, 250 V AC, 32 A, 3 Poles, 3 Wires, Blue
- MFR #:
- HBL430C9V04
- UPC:
- 783585404530
- Item #:
- 204912
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | HBL430C9V04 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 32 |
| Application | High Ampacity Connections, Material Mod |
| Color | Blue |
| Conductor Range | #10 AWG to #8 AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Watertight |
| Standard | UL 498, IEC 309-1 and 309-2 |
| UPC | 783585404530 |
| GTIN | 00783585404530 |
| Item Type | Standard |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3-Phase 250V AC kV |
