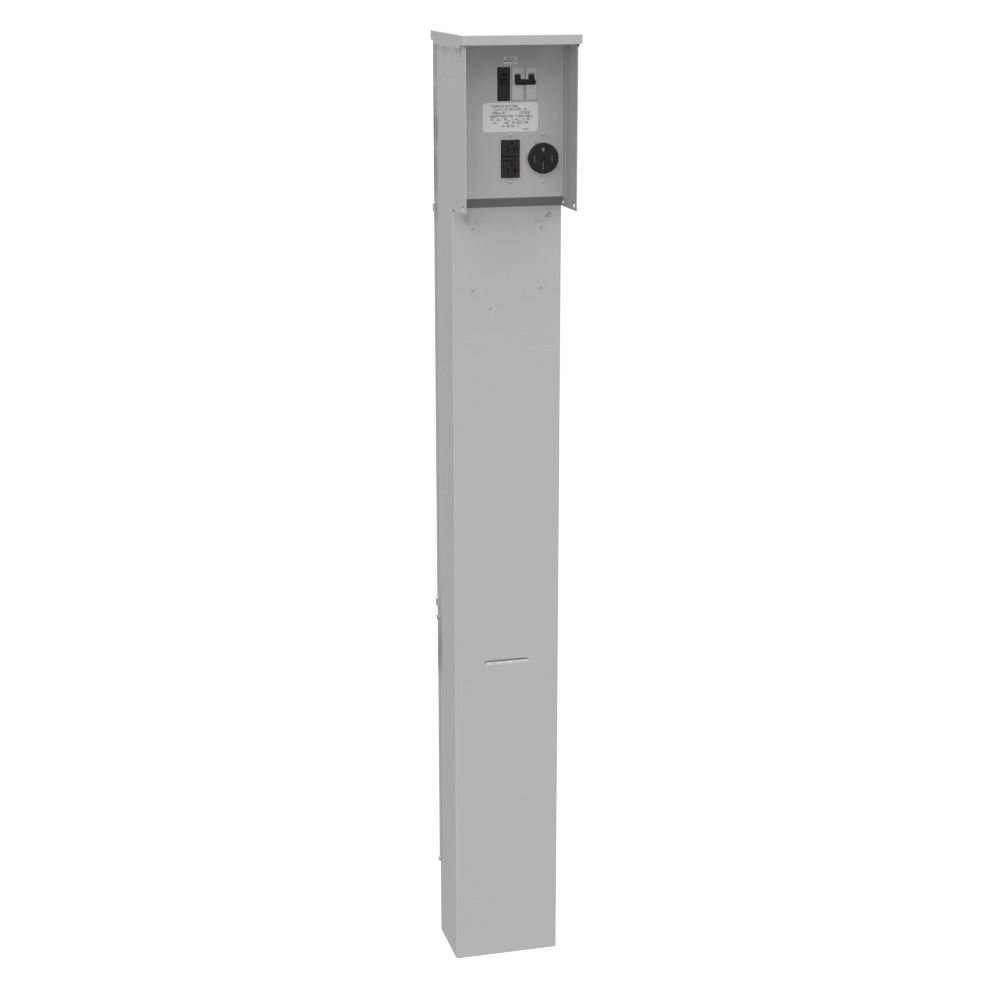

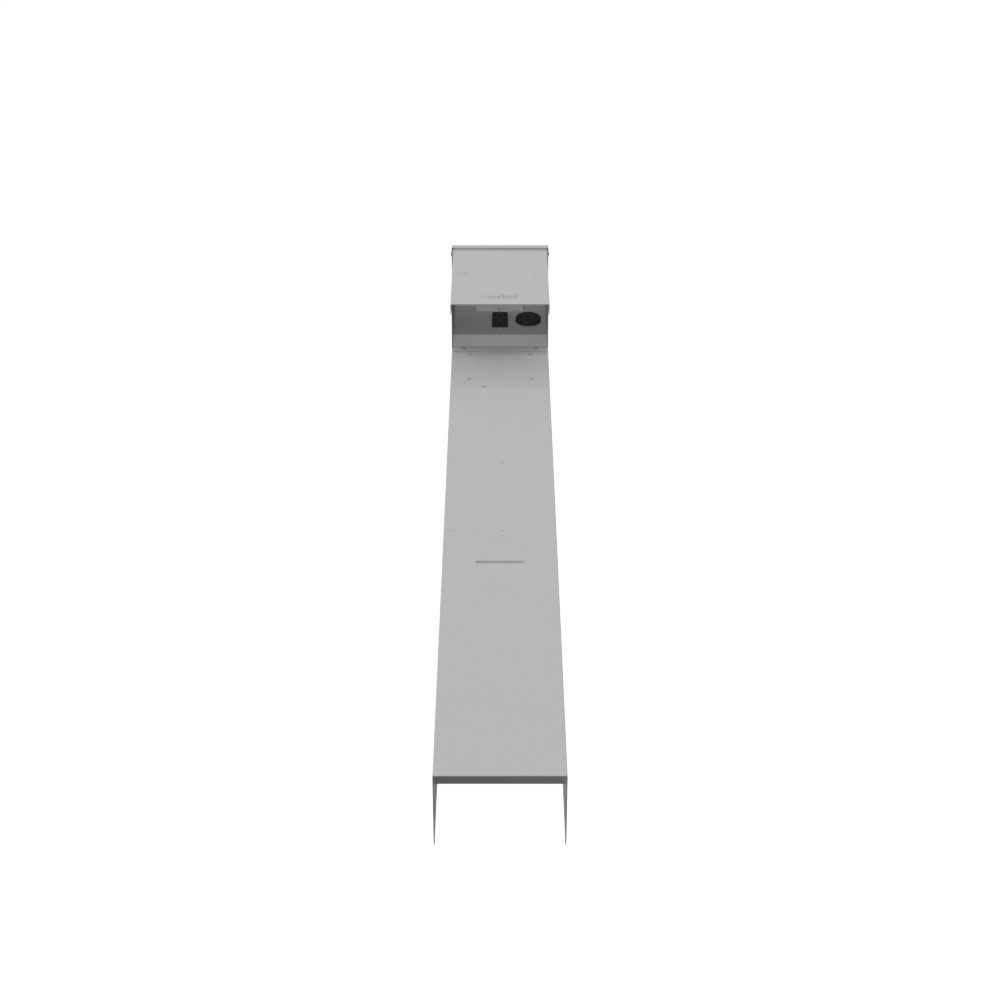

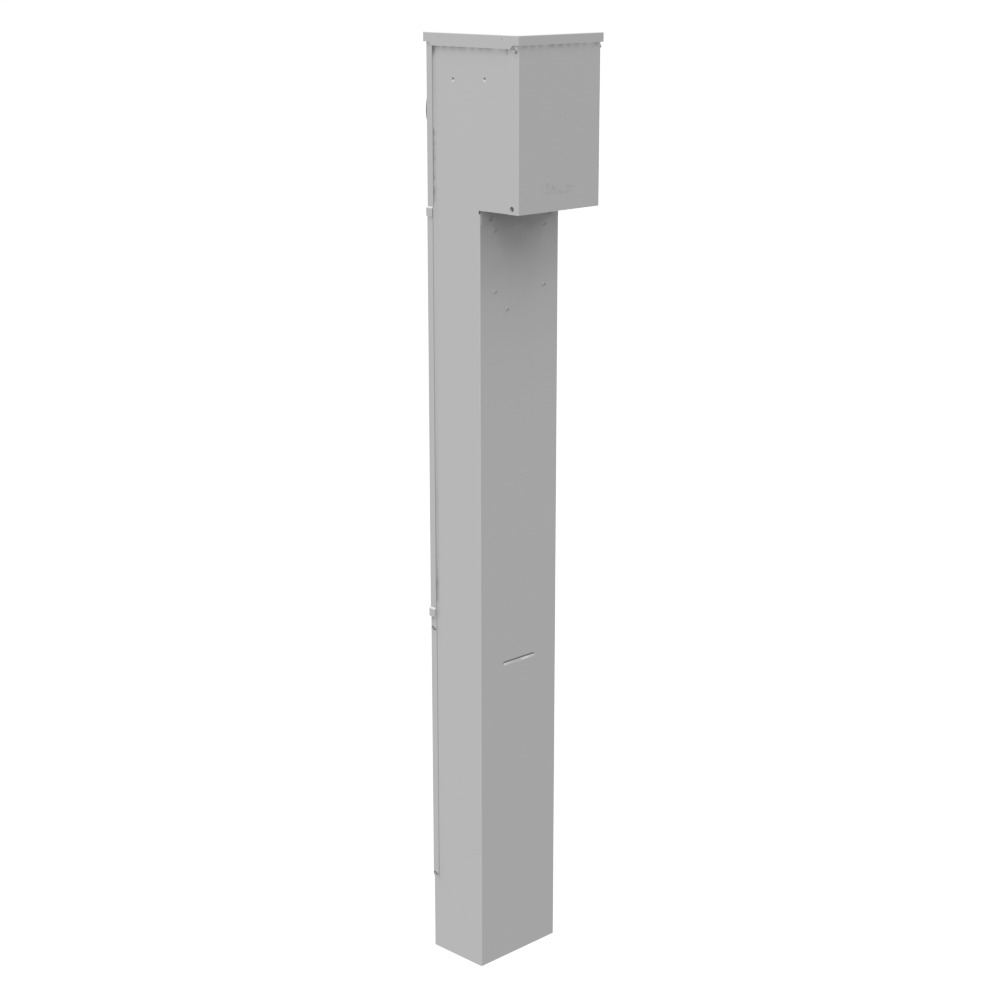

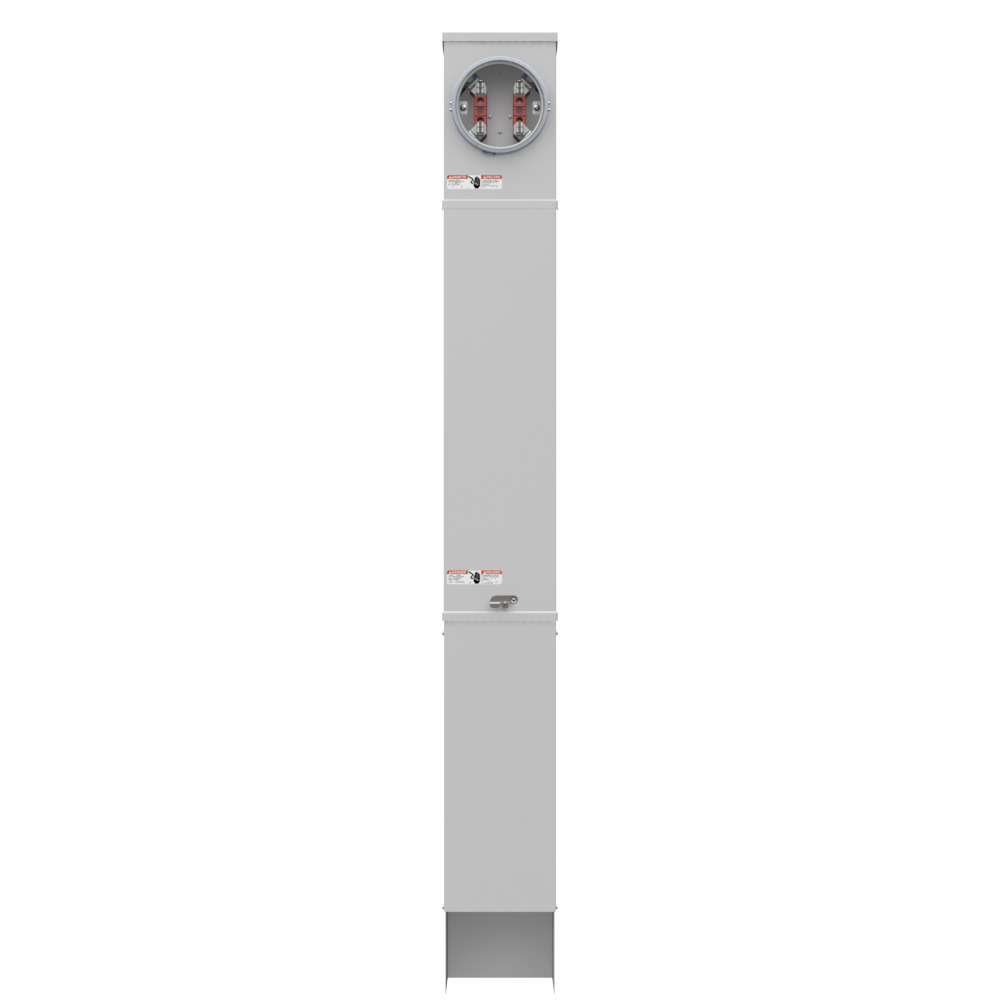

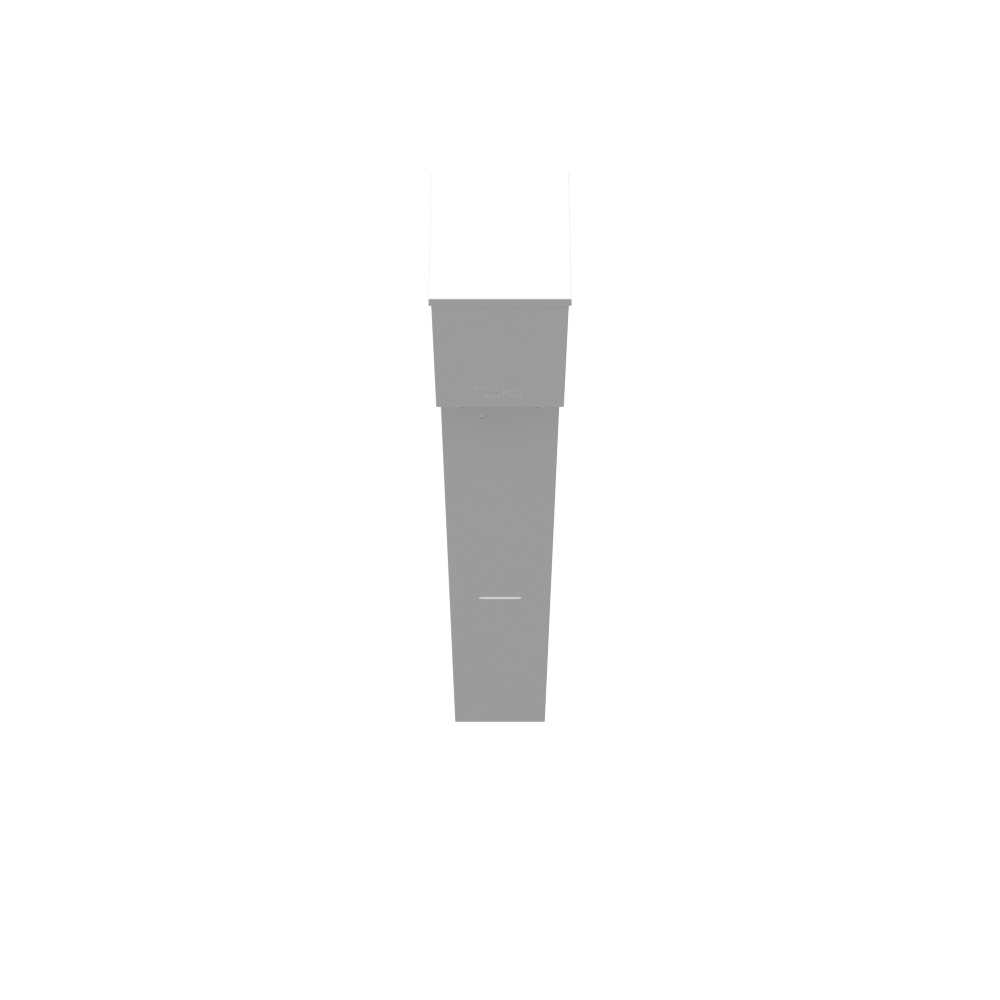

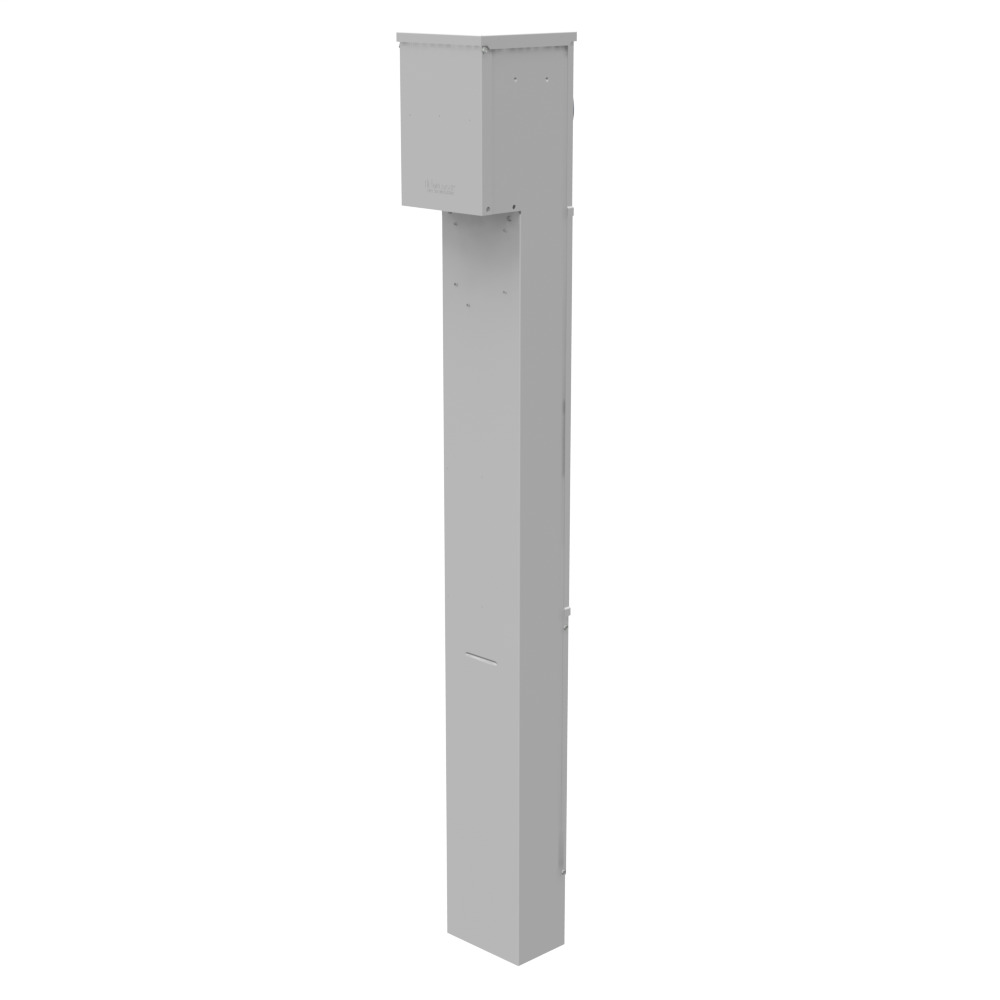

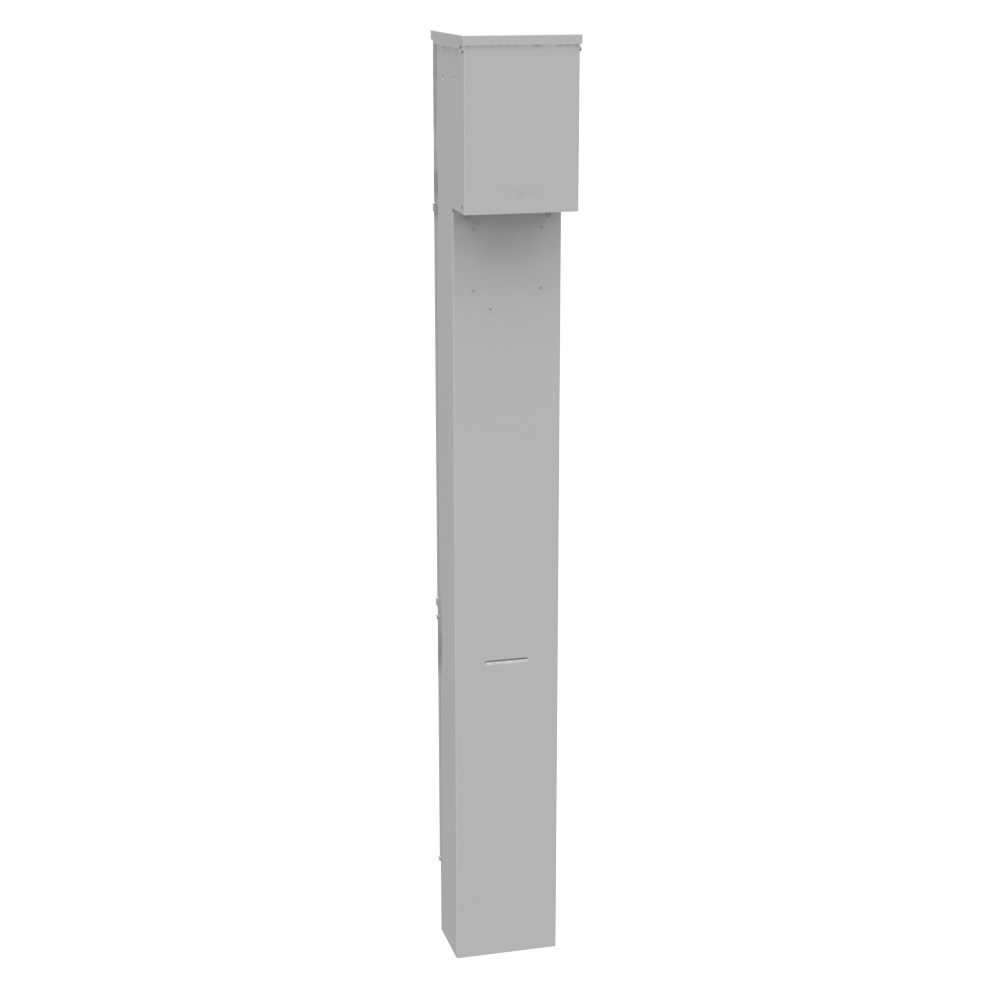

U5952-O-55 4 Term, Ringed, Plain Top, 1450 520GR, Single Pedestal Direct Bury, Voyager
- MFR:
- Milbank
- MFR #:
- U5952-O-55
- UPC:
- 784572605985
- Item #:
- 204515
U5952-O-55 4 Term, Ringed, Plain Top, 1450 520GR, Single Pedestal Direct Bury, Voyager
- MFR #:
- U5952-O-55
- UPC:
- 784572605985
- Item #:
- 204515
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,209.78
each
4 TERM RNGTP PLAIN TOP 1450 520GR SGL PED DIR BURY VOYAGER
Manuals and Documentation
| Catalog Number | U5952-O-55 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | RV Power |
| Bypass Type | No Bypass |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker |
| Standard | Type 3R |
| UPC | 784572605985 |
| GTIN | 00784572605985 |
| Item Type | Ring Type Meter Socket |
| Length | 9.438 |
| Length UOM | Inch |
| Width | 8 |
| Width UOM | Inch |
| Height | 70 |
| Height UOM | Inch |
| Size | 9.438L x 8W x 70H |
| Terminals | Double Mechanical |
| Voltage Rating | 240 V |
