Telemecanique

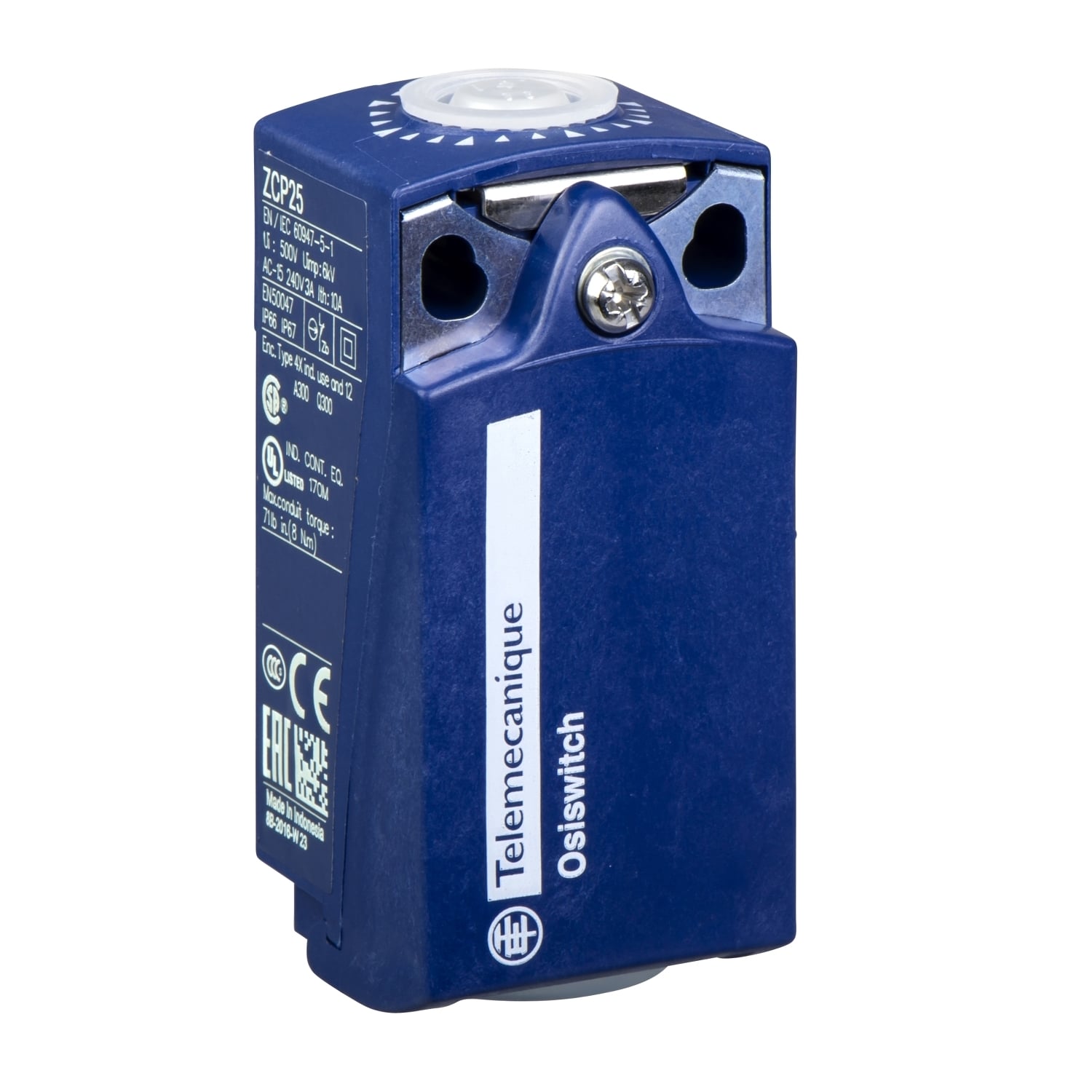

ZCP25 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKP Standard Compact Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP25
UPC:
785901290407
Item #:
204376

Availability

Location Available Qty
Available Available to Order
$41.09 each

This ZCP body/contact assembly has standard contacts and a plastic body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCP25
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Hungary
Made in USA No
Action Slow-break, break before make
Amperage Rating 10
Application XCKP
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880396&lang=en-us
UPC 785901290407
GTIN 03389110180954
Item Type Limit switch body
Operating Temperature -25-70 A Degrees C
