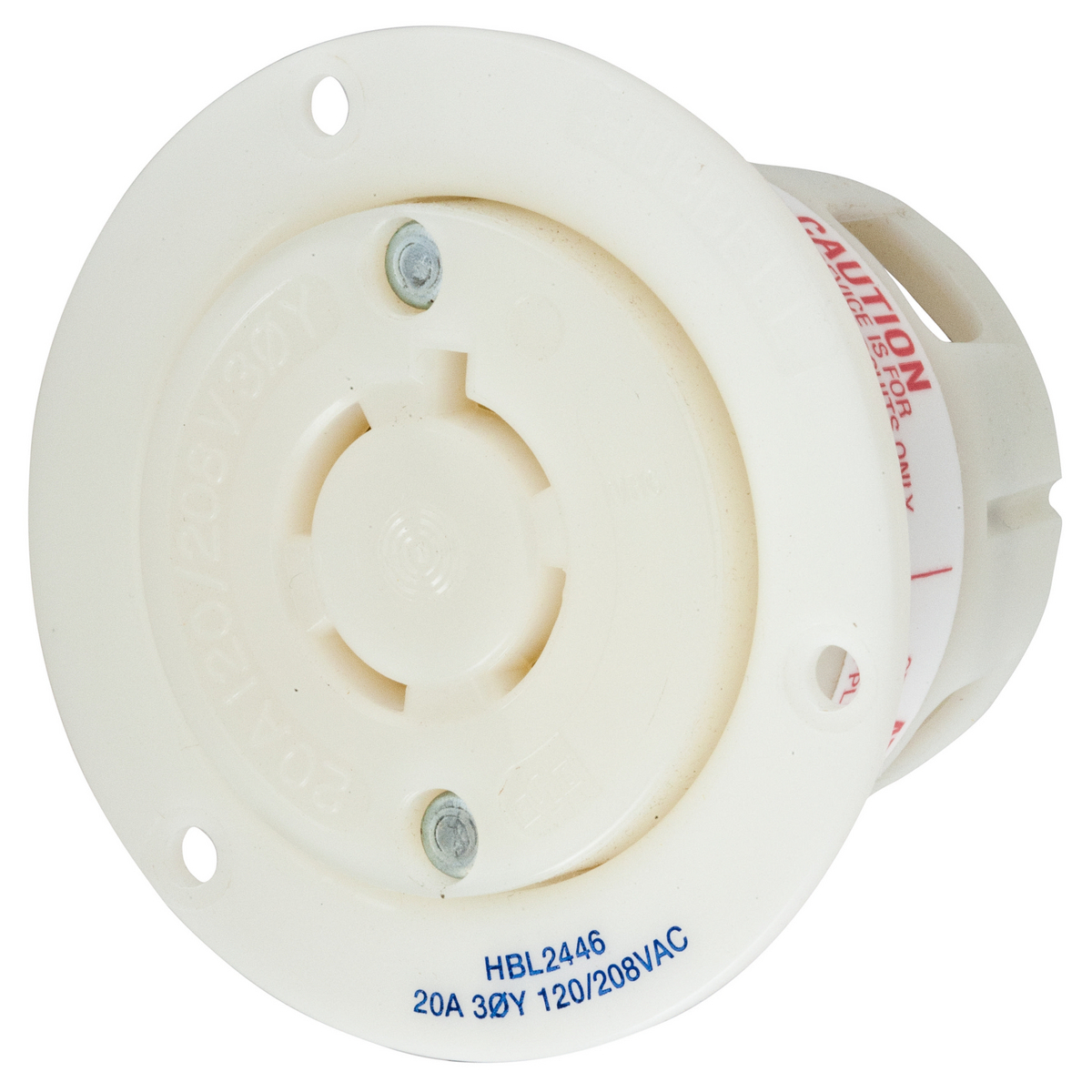

HBL2446 3-Phase Standard Screw Mount Flanged Receptacle, 120/208 V AC, 20 A, 4 Poles, 4 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2446
- UPC:
- 783585038384
- Item #:
- 203939
HBL2446 3-Phase Standard Screw Mount Flanged Receptacle, 120/208 V AC, 20 A, 4 Poles, 4 Wires, White
- MFR #:
- HBL2446
- UPC:
- 783585038384
- Item #:
- 203939
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$91.28
each
Manuals and Documentation
| Catalog Number | HBL2446 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Insulgrip |
| Color | White |
| Connection | Screw Terminal |
| Material | Nylon |
| Mounting | Screw |
| Number of Poles | 4 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585038384 |
| GTIN | 00783585038384 |
| Item Type | Flanged Receptacle |
| Size | 3.06 in x 3.06 in x 2.27 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 3 Phase WYE 120/208 |
| Wattage | 4,160 W |
| Wire Size | #16 AWG to #8 AWG |
