SCHNEIDER ELECTRIC

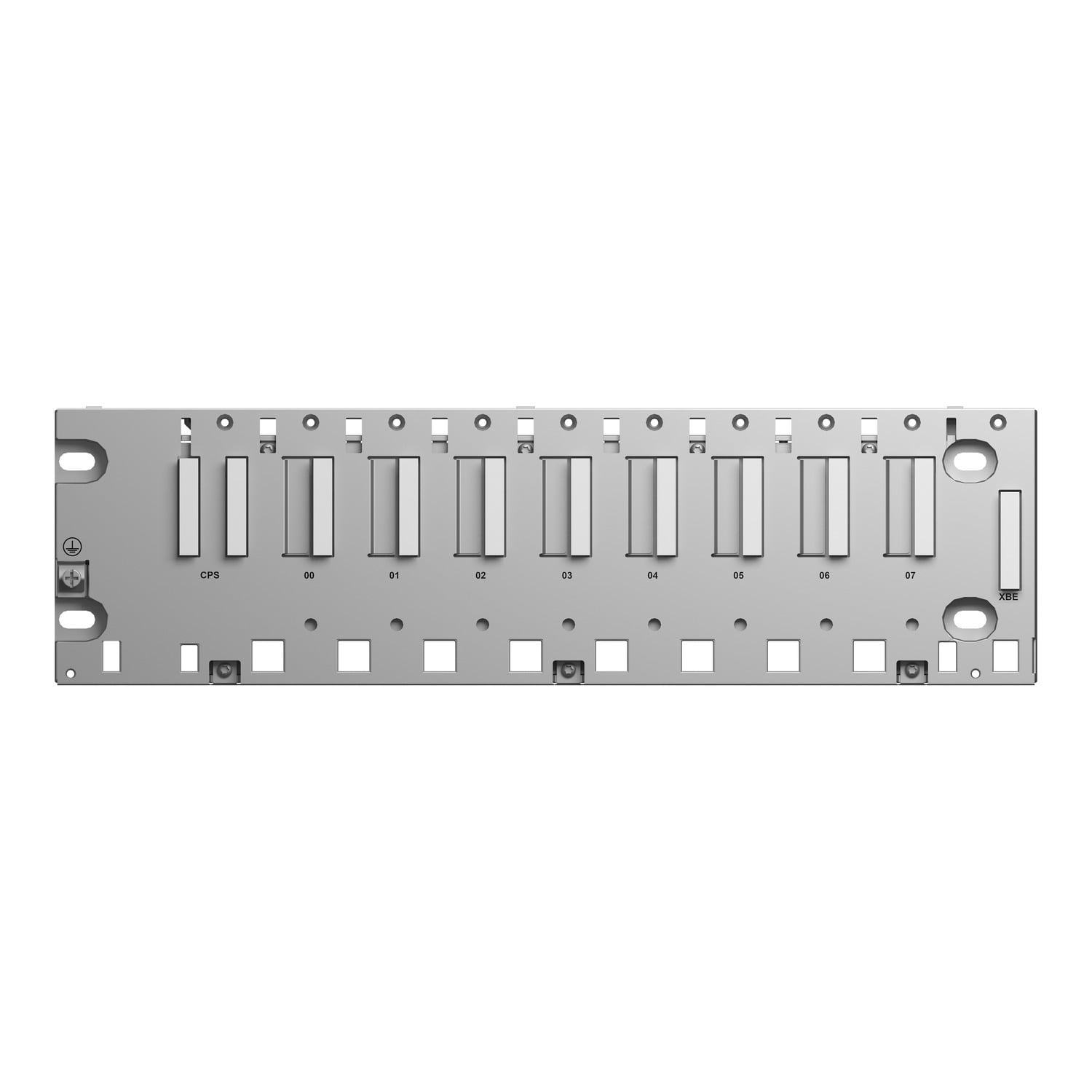

BMEXBP0800H Modicon 8-Slot Ruggedized Rack Backplane With Ethernet Backplane, For Use With Modicon M580 Automation/X80 I/O Platform BMXCPS Power Supply, I/O Module and BMEP58/BMEH58 Processor

MFR:
Schneider Electric
MFR #:
BMEXBP0800H
Item #:
203603

Availability

Location Available Qty
Available Available to Order
$726.06 each

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25C to +70C. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for severe environments, medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Manuals and Documentation
Catalog Number BMEXBP0800H
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=331582135&lang=en-us
GTIN 03595864174266
