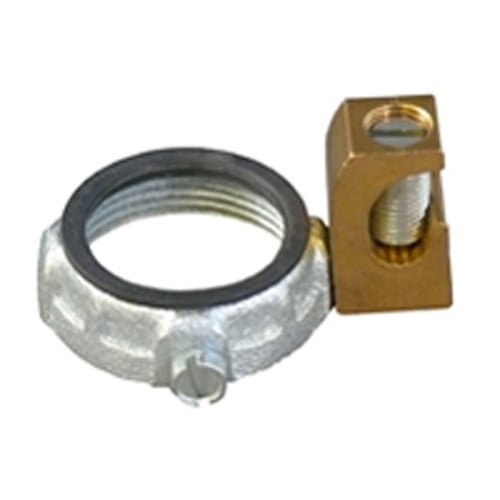

Grounding Bushing; 1 Inch, Threaded, Malleable Iron, Zinc-Electro Plated
- MFR:
- Appleton Electric
- MFR #:
- GIB-100L-4BC
- UPC:
- 781381091664
- Item #:
- 202878
Grounding Bushing; 1 Inch, Threaded, Malleable Iron, Zinc-Electro Plated
- MFR #:
- GIB-100L-4BC
- UPC:
- 781381091664
- Item #:
- 202878
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$30.67
each
Insulated Grounding Bushing With Bronze Lay-In-Lug, Size: 1 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Bright Dip Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 0.56 IN Height X 1-3/4 IN Dia
Manuals and Documentation
Features
- Zinc plated malleable iron body, zinc plated steel clamping and set screw, tin plated aluminum or bronze/bright dip grounding lug
- Insulating liner material is self-extinguishing
- Tough plastic liner won't chip, crack, swell or shrink; resists corrosion, chemicals and temperature extremes
- Gib-ls series is provided with a set-screw allowing fitting to lock bushing in any desired position
| Catalog Number | GIB-100L-4BC |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| Connection | Threaded |
| Finish | Zinc Electroplated Body, Bright Dip Lug |
| Material | Malleable Iron |
| Special Features | Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid metal conduit to an enclosure |
| Standard | UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381091664 |
| GTIN | 00781381091664 |
| Item Type | Insulated Grounding Bushing With Bronze Lay-In-Lug |
| Length | 7.0000 |
| Length UOM | Inch |
| Width | 5.0000 |
| Width UOM | Inch |
| Height | 0.1400 |
| Height UOM | Inch |
| Weight | 0.140 |
| Weight UOM | Pounds |
| Size | 1 |
| Temperature Rating | 150 DEG C |
