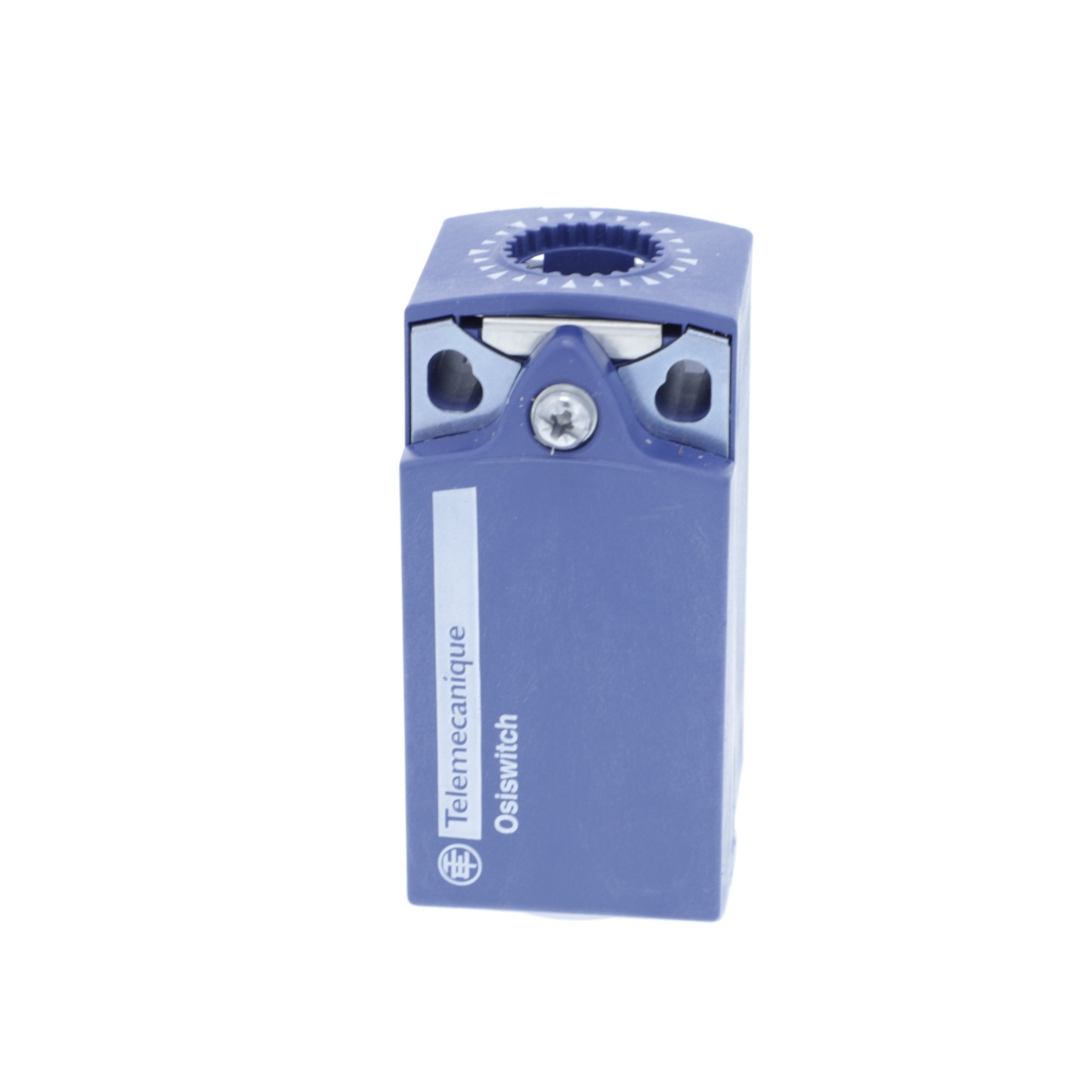

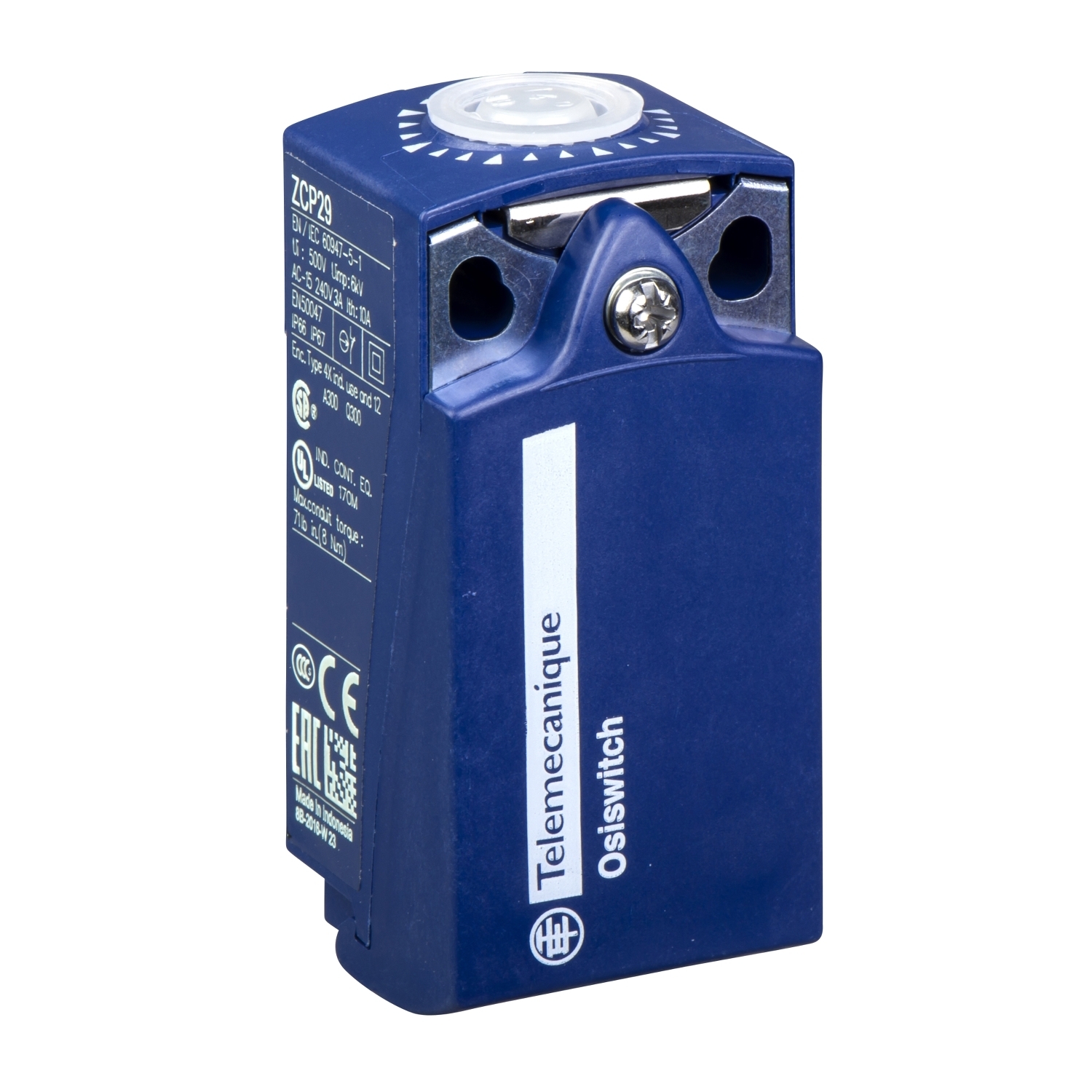

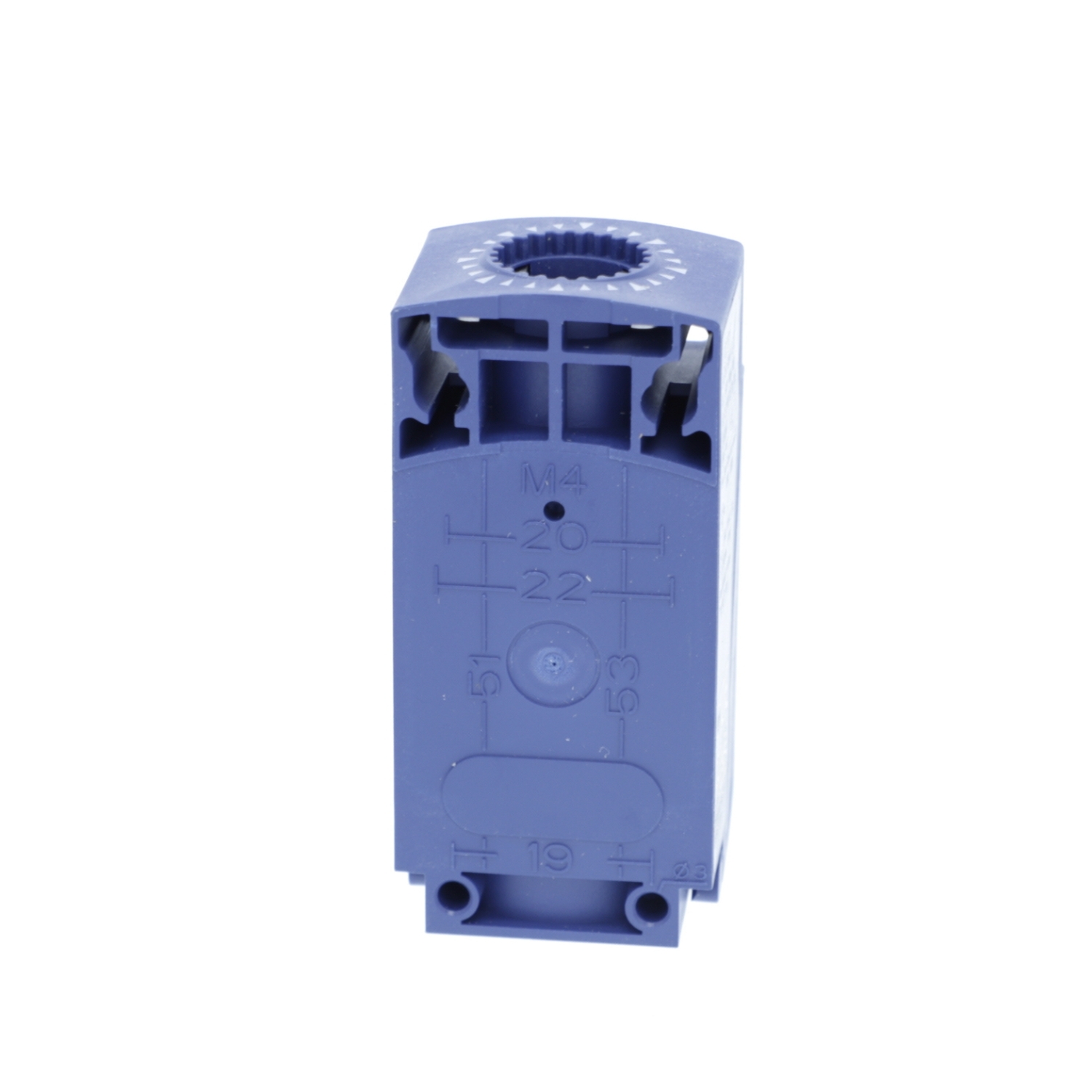

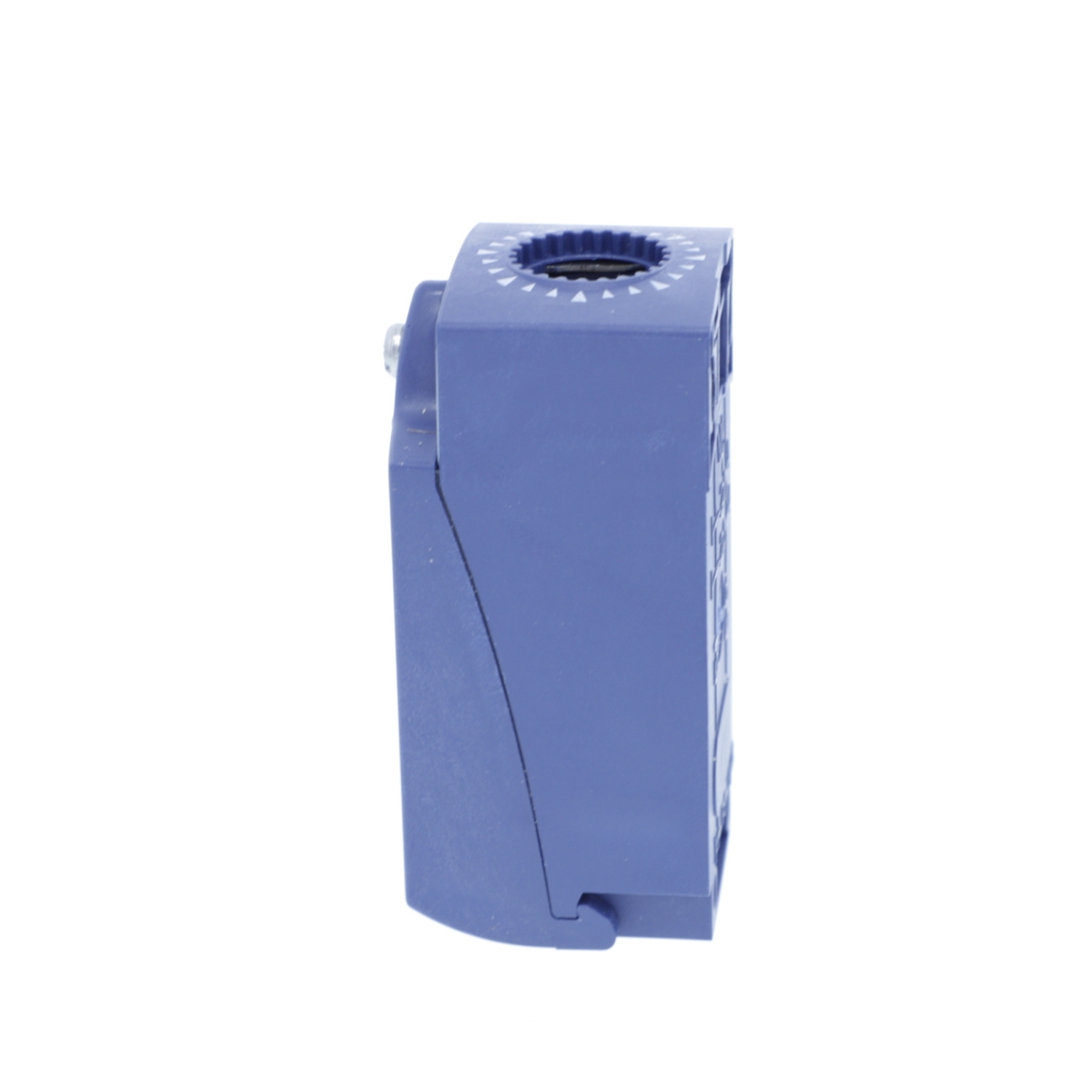

ZCP29 OsiSense XC ZCP Series Fixed Limit Switch Body, 2NC Contact, For Use With XCKP, ZCP and ZCP Series Standard Format Compact Limit Switch, 10 A at 240 V AC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCP29
- UPC:
- 785901662495
- Item #:
- 202848
ZCP29 OsiSense XC ZCP Series Fixed Limit Switch Body, 2NC Contact, For Use With XCKP, ZCP and ZCP Series Standard Format Compact Limit Switch, 10 A at 240 V AC Contact
- MFR #:
- ZCP29
- UPC:
- 785901662495
- Item #:
- 202848
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$67.78
each
This ZCP body/contact assembly has standard contacts and a plastic body. It has 2 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Manuals and Documentation
| Catalog Number | ZCP29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Snap action, simultaneous |
| Amperage Rating | 10 |
| Application | XCKP |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 2 NC |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IEC, UL LISTED, CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880404&lang=en-us |
| UPC | 785901662495 |
| GTIN | 03389110180336 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Operating Temperature | -25-70 A Degrees C |
