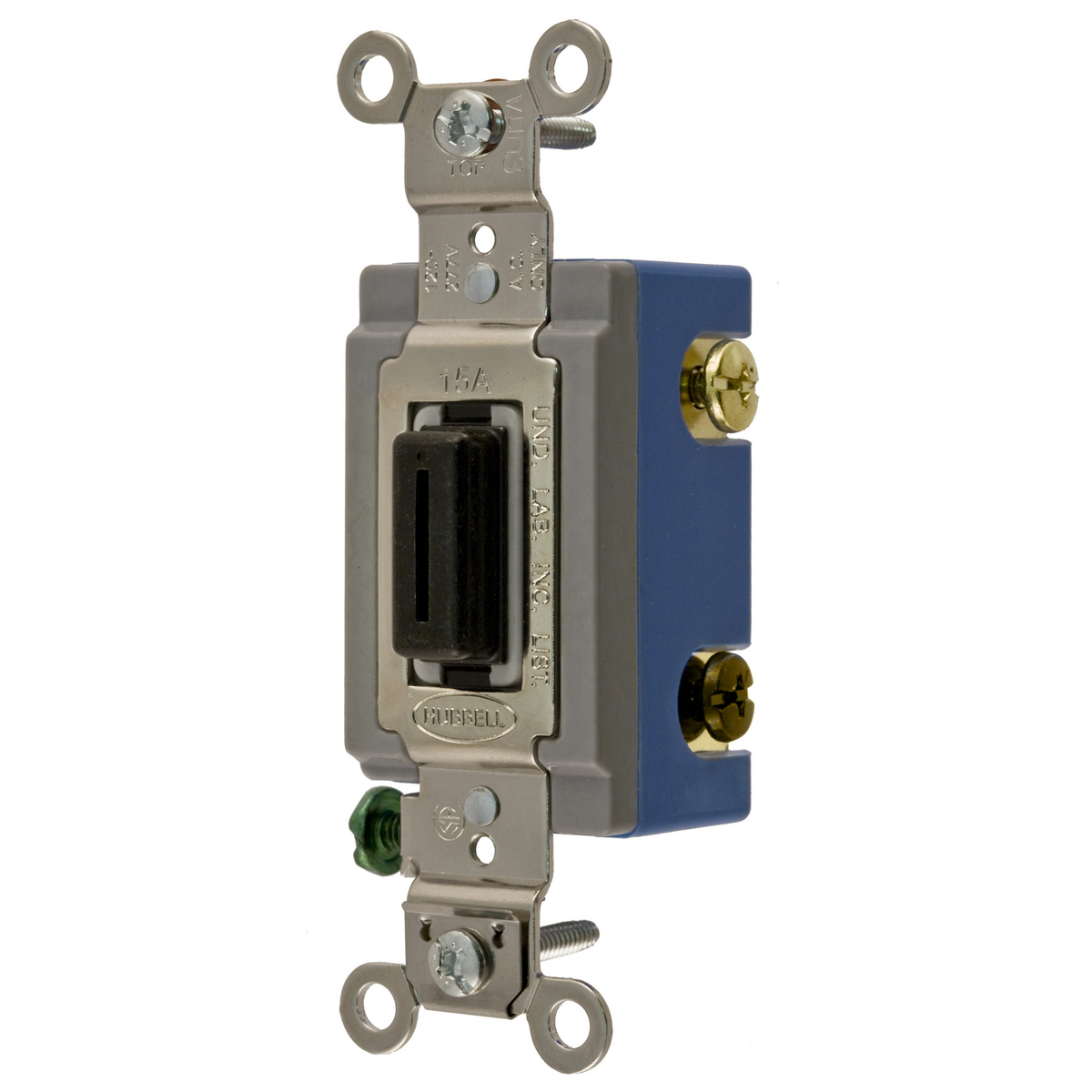

HBL1204L 4-Way Extra Heavy Duty General Purpose Standard Locking Switch With Key, 120 to 277 V AC, 15 A, 4155 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL1204L
- UPC:
- 783585430409
- Item #:
- 202296
HBL1204L 4-Way Extra Heavy Duty General Purpose Standard Locking Switch With Key, 120 to 277 V AC, 15 A, 4155 W Power Rating, 2-Position Contact
- MFR #:
- HBL1204L
- UPC:
- 783585430409
- Item #:
- 202296
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$114.22
each
Manuals and Documentation
| Catalog Number | HBL1204L |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Action | DPDT |
| Actuator | Double Ended Key |
| Amperage Rating | 15 |
| Application | Back and Side Wired |
| Color | Black |
| Connection | Terminal Screws |
| Contact Configuration | 2-Position |
| Contact Rating | Full Rated |
| Indicator | Dot Indicates On |
| Material | Composite |
| Mounting | Screw |
| Special Features | Standard Product |
| Standard | UL Listed |
| UPC | 783585430409 |
| GTIN | 00783585430409 |
| Item Type | Locking |
| Size | 4.06 in x 1.31 in x 1.13 in |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 120-277 |
| Wattage | 4155 W |
