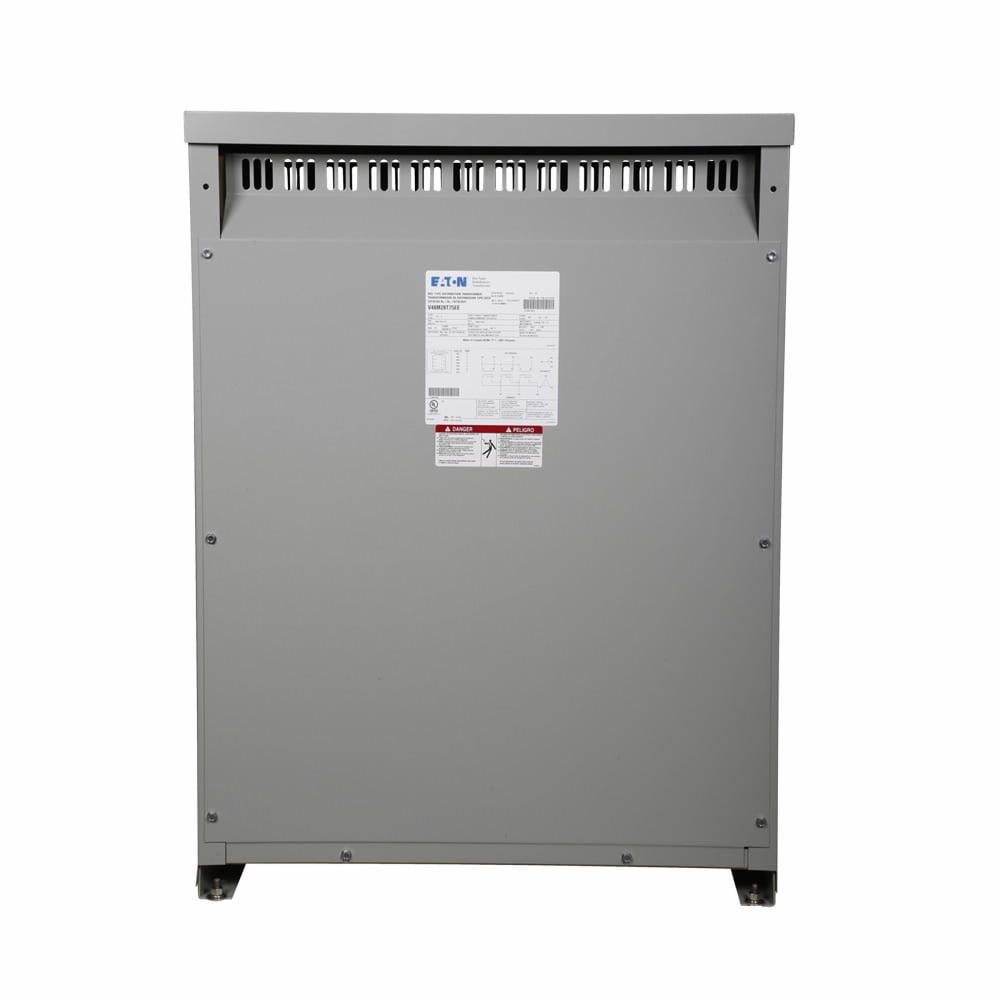

V48M47T15EE Type DT-3 Dry Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 480Y/277 V AC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- V48M47T15EE
- UPC:
- 786680031243
- Item #:
- 202178
V48M47T15EE Type DT-3 Dry Energy Efficient Ventilated Distribution Transformer, 480 VAC Primary, 480Y/277 V AC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- V48M47T15EE
- UPC:
- 786680031243
- Item #:
- 202178
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$5,026.03
each
Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
| Catalog Number | V48M47T15EE |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Primary Voltage | 480 V |
| Secondary Voltage | 480 Y/277 V |
| Standard | UL Listed,NEMA TP-1 Compliant |
| UPC | 786680031243 |
| GTIN | 00786680031243 |
| Item Type | Ventilated transformer |
| Temperature Rating | 150 Degrees C rise |
