Telemecanique

ZCP21M12 OsiSense 2-Pole Fixed Limit Switch Body With Positive Opening, 1NO-1NC Contact, For Use With XCKP Standard Compact Limit Switch, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP21M12
UPC:
785901516538
Item #:
202115

Availability

Location Available Qty
Available Available to Order
$81.99 each

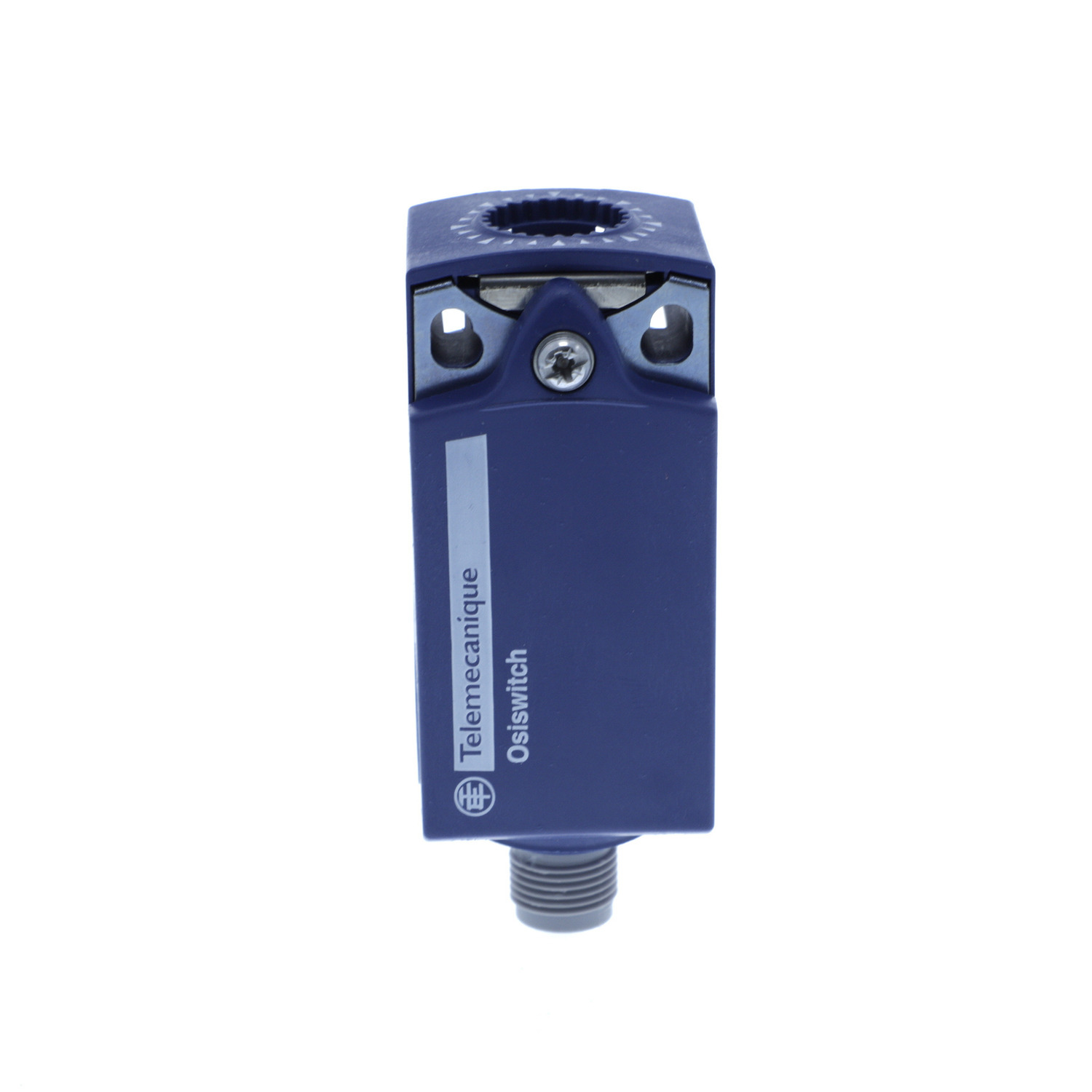

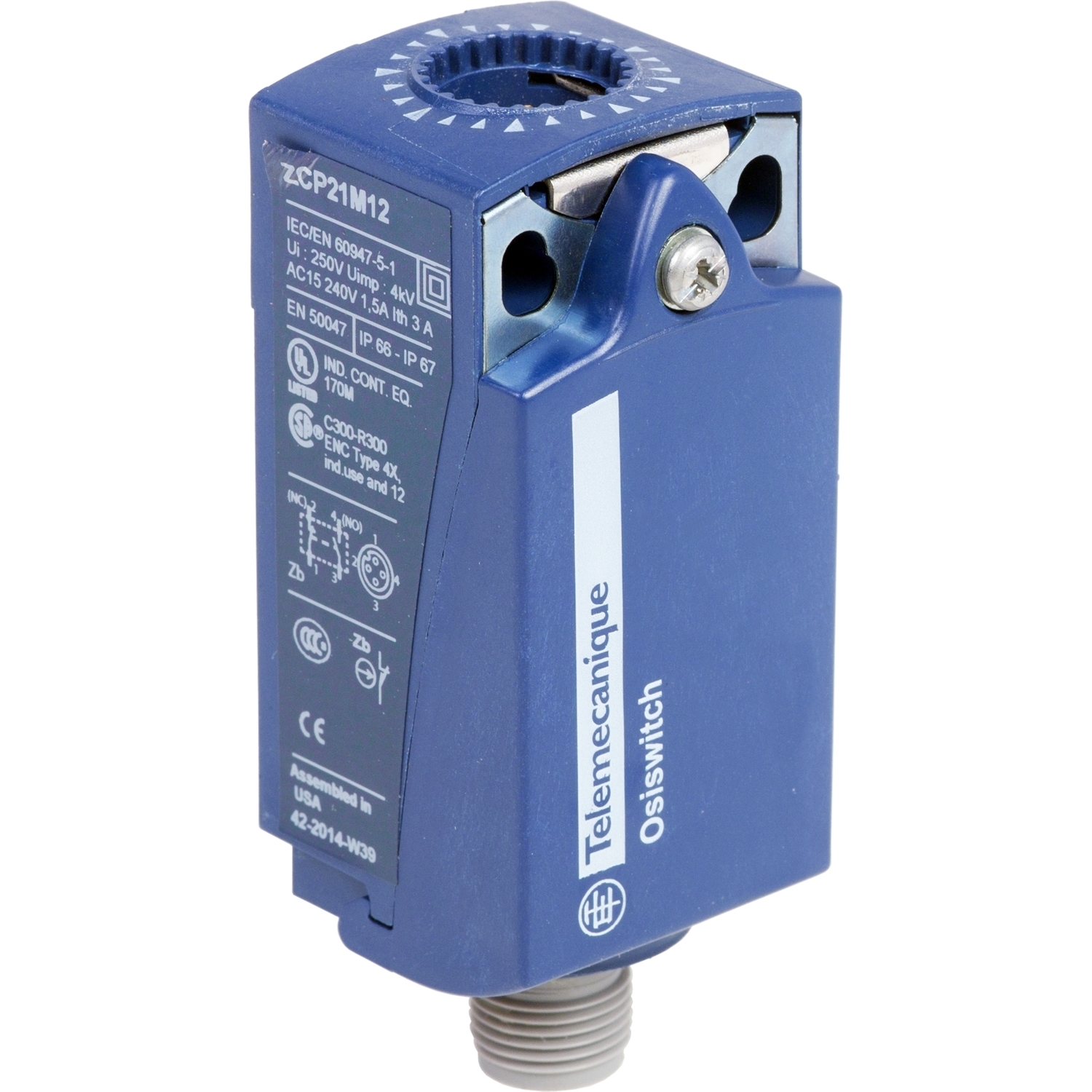

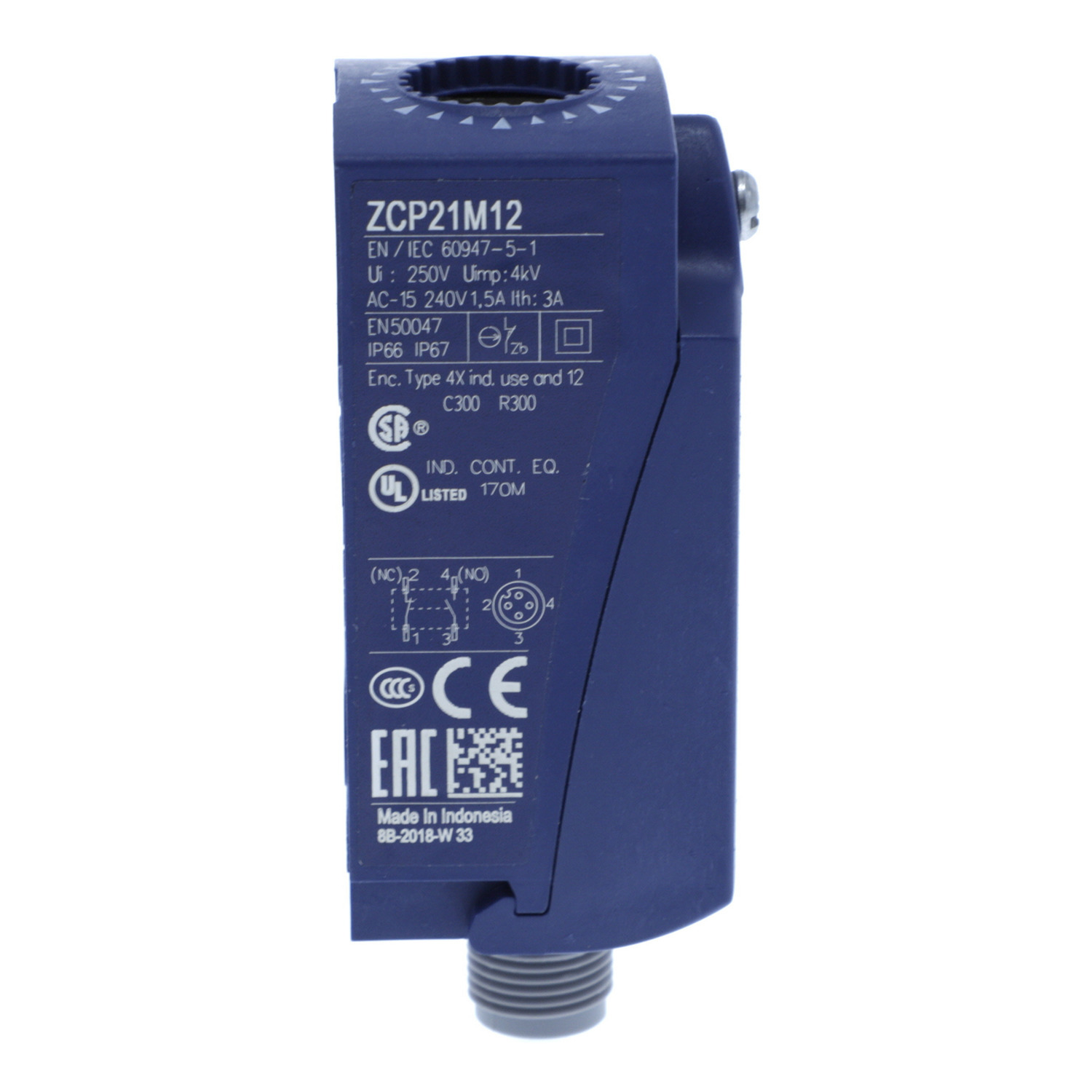

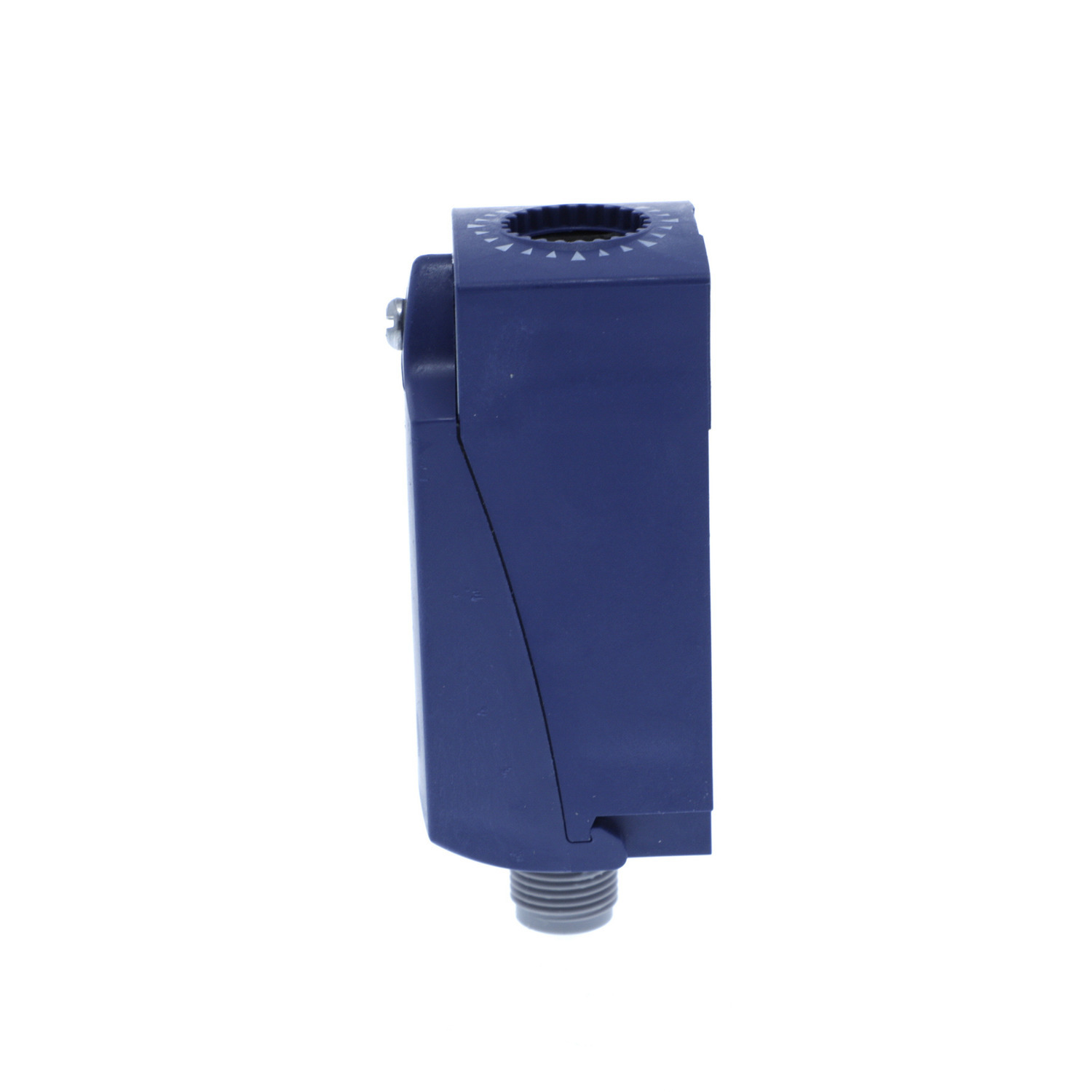

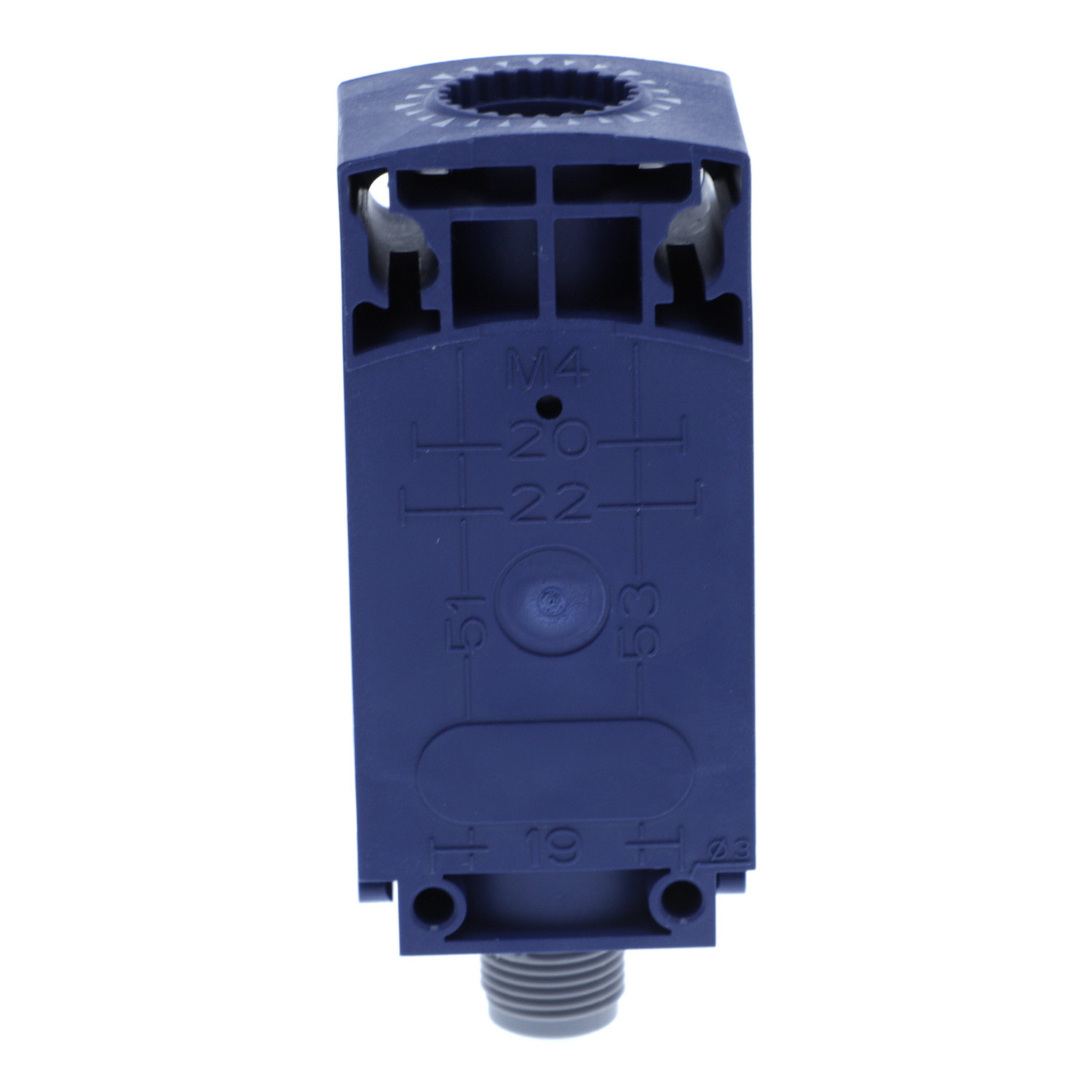

This ZCP body/contact assembly with connector has standard contacts and a plastic body. It has 1 x NO + 1 x NC snap action contacts and a M12 4-pin connector. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCP21M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Snap action
Amperage Rating 3
Application XCKP
Connection Male connector M12, 4 pins
Contact Configuration 1 NC + 1 NO
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880394&lang=en-us
UPC 785901516538
GTIN 03389110183962
Item Type Limit switch body
Size 30 MM,31 MM,65-65 MM
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A
