Hubbell Wiring Device - Kellems

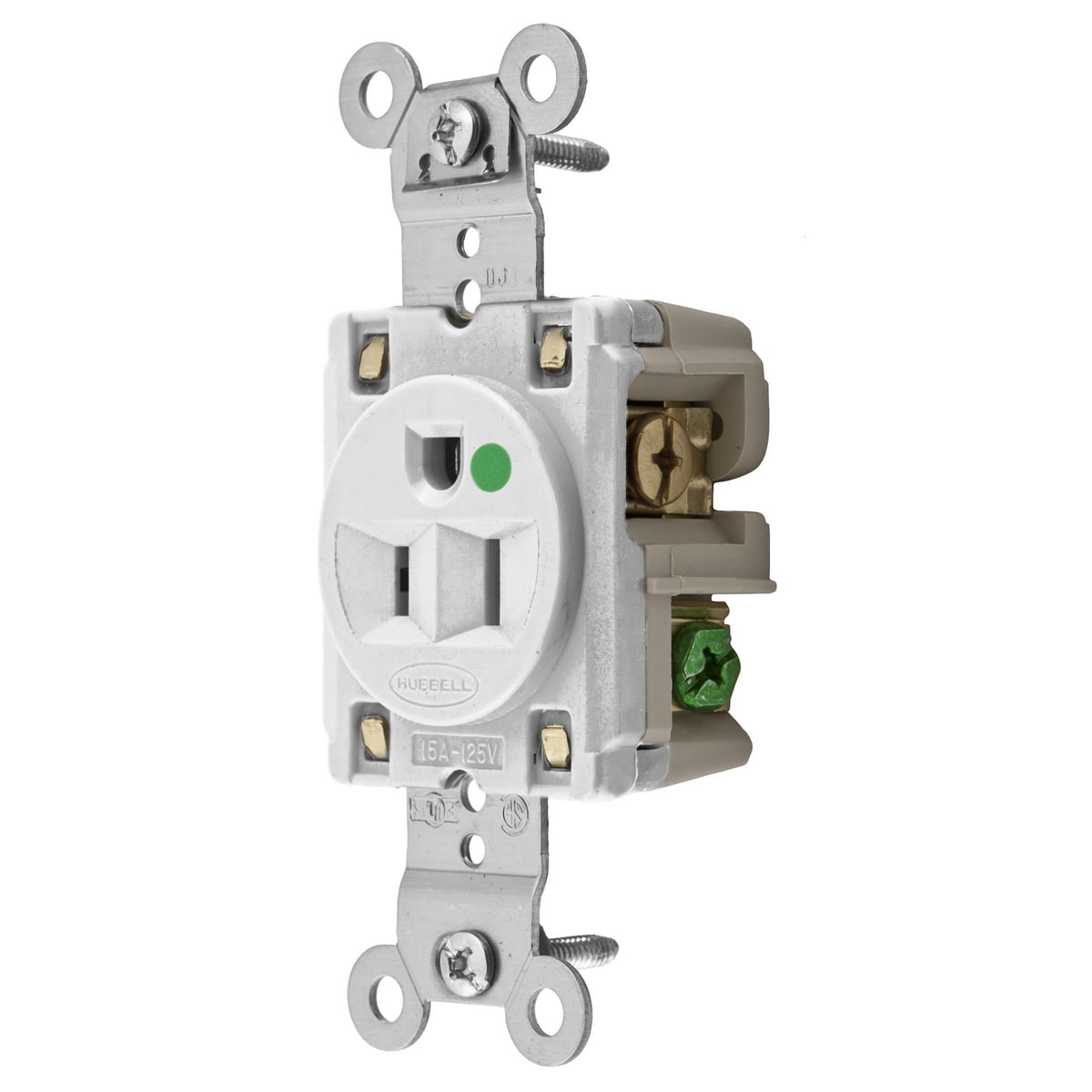

HBL8210W 1-Phase Extra Heavy Duty Single Self-Grounding Standard Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL8210W
UPC:
783585016252
Item #:
202048

Availability

Location Available Qty
Available Available to Order

HBL Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.

Manuals and Documentation
Catalog Number HBL8210W
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 15
Application Extra Heavy Duty Hospital Grade
Color White
Connection Back and Side Wired Screw Terminals
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Self Grounding
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585016252
GTIN 00783585016252
Item Type Single Receptacle
Size 3.28 in x 1.63 in x 1.19 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #14 AWG to #10 AWG
