Telemecanique

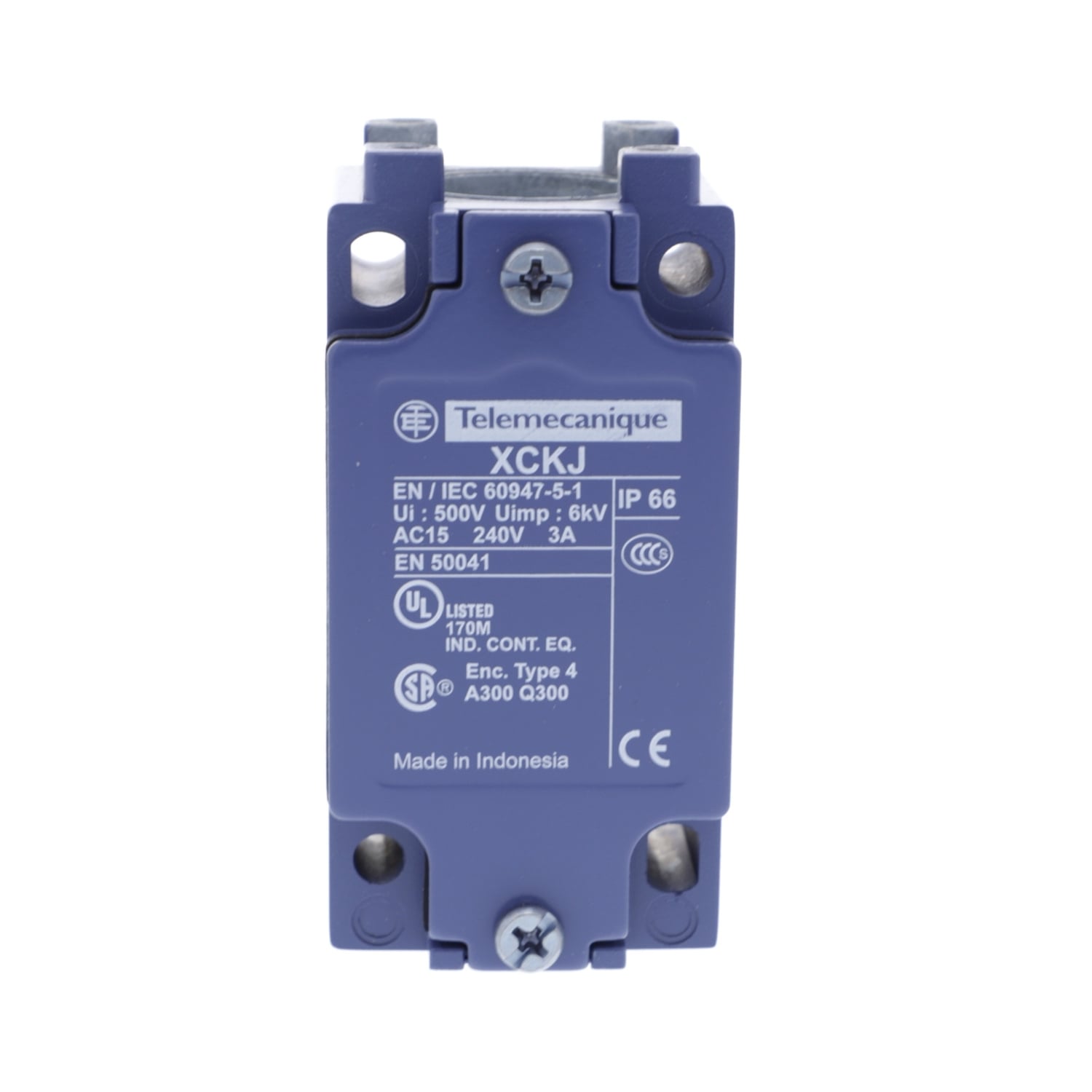

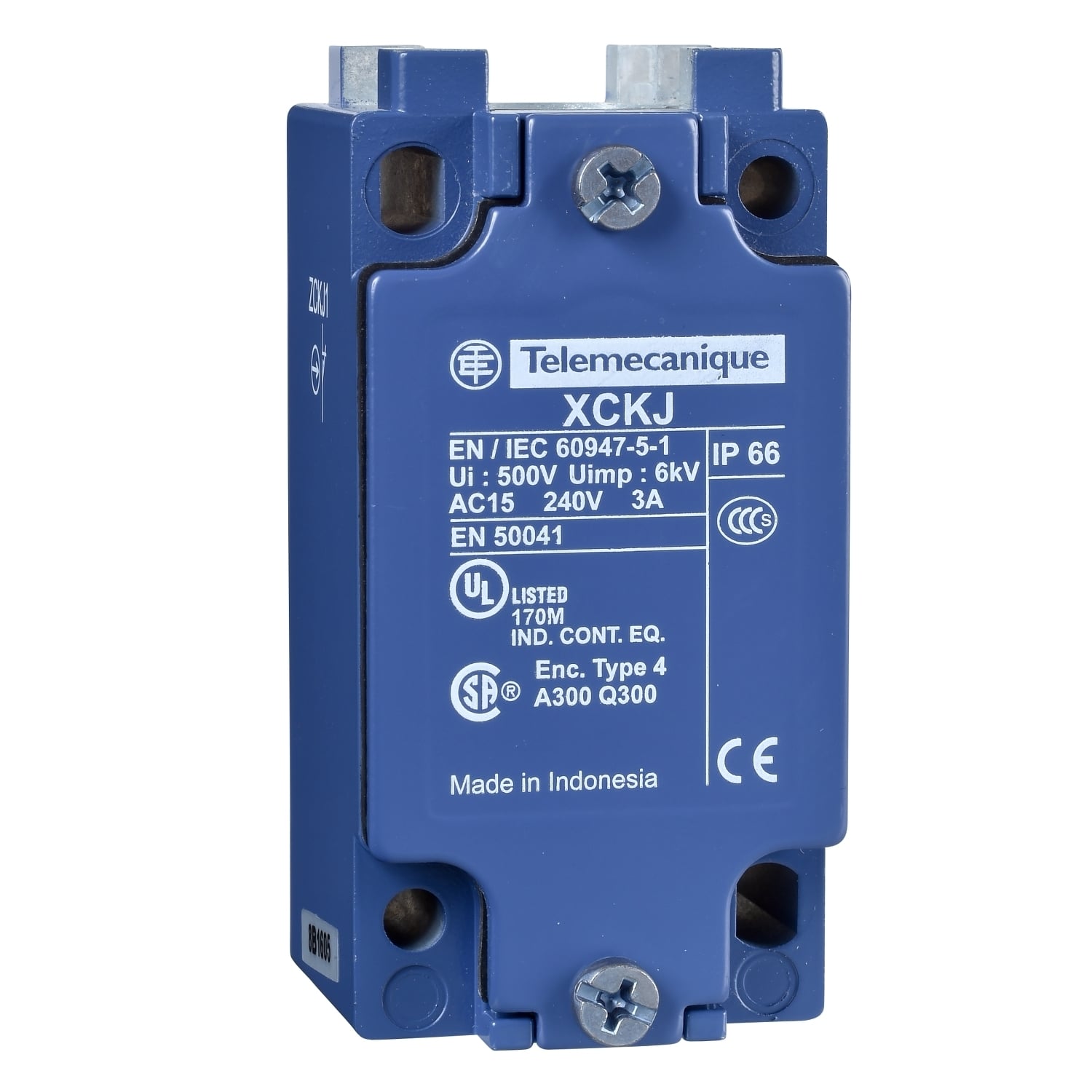

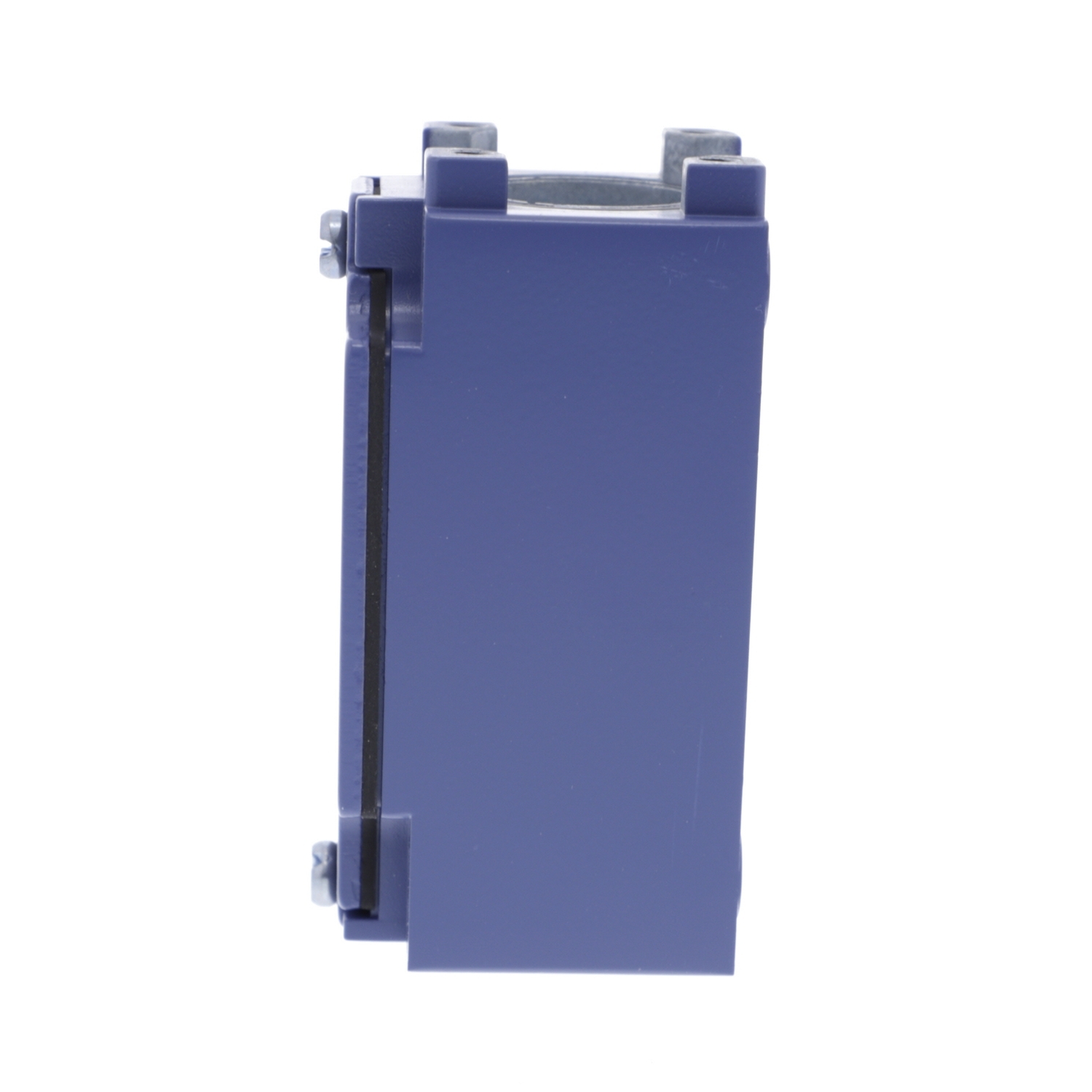

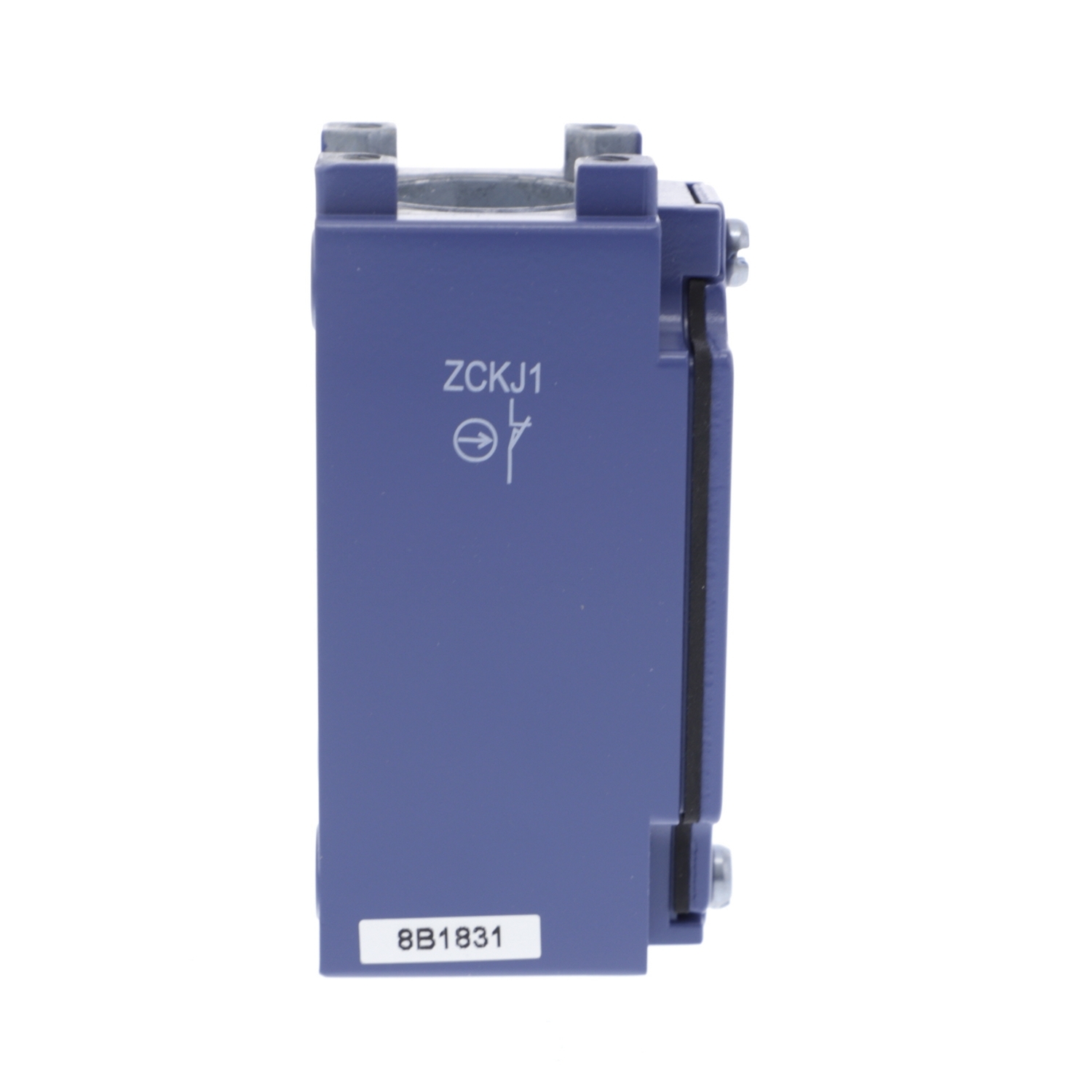

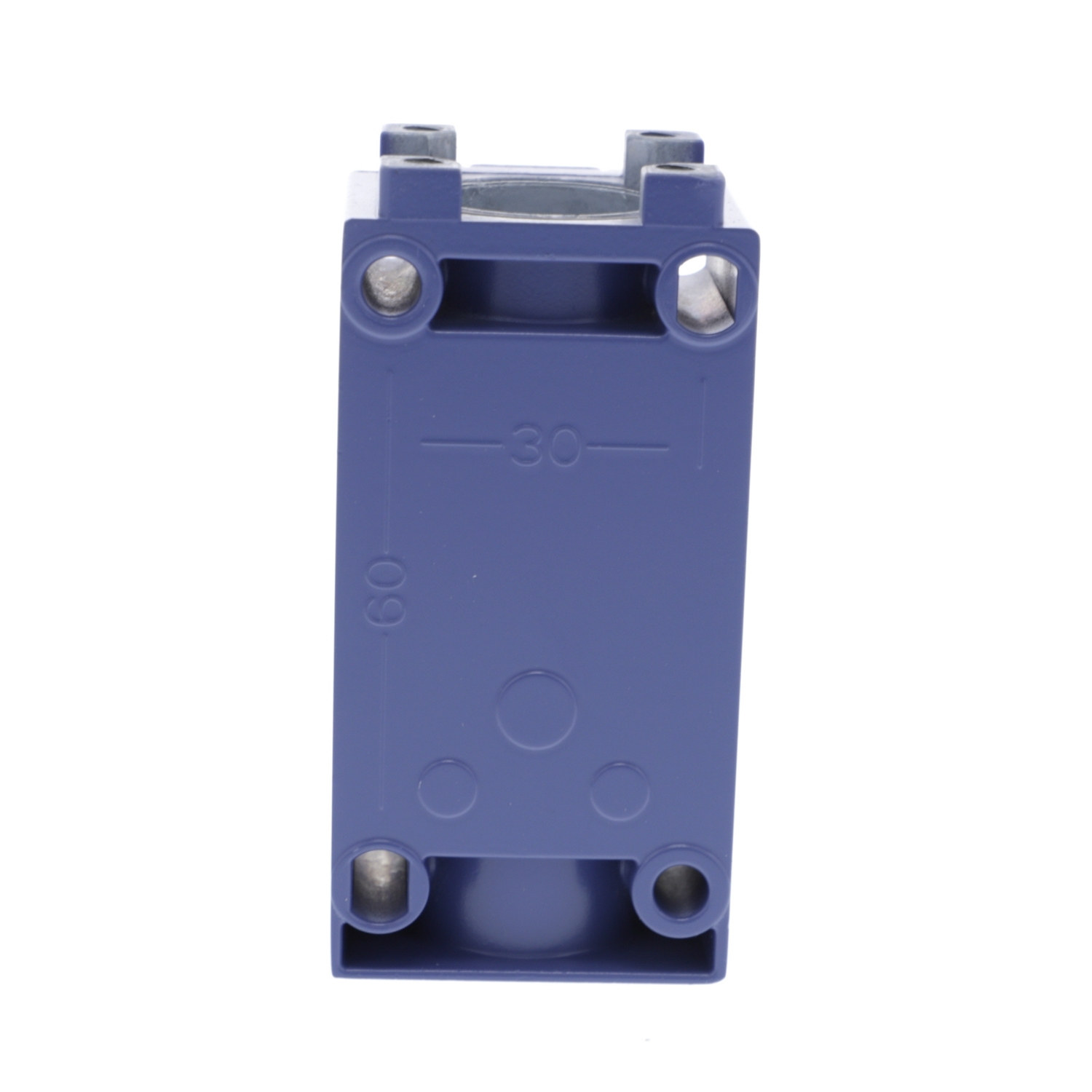

ZCKJ5 OsiSense XC 2-Pole Fixed Switch Body, 1NO-1NC Contact, For Use With XCKJ and ZCKJ Series Standard Format Limit Switch, 10 A Contact, IP65/IK07 Enclosure

MFR:
Telemecanique Sensors
MFR #:
ZCKJ5
UPC:
785901646136
Item #:
201917

Availability

Location Available Qty
Available Available to Order
$90.90 each

This ZCK body/contact assembly with connector has a fixed body and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and a Pg 13.5 cable entry. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCKJ5
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Amperage Rating 10
Application XCKJ
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure IP65
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IK07,IP66
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879706&lang=en-us
UPC 785901646136
GTIN 03389110646139
Item Type Limit switch body
Size 1.73
Environmental Conditions HIGH TEMPERATURELOW TEMPERATURESTANDARD ENVIRONMENT
Operating Temperature -25...70 A Degrees C FOR STANDARD ENVIRONMENT10...120 A Degrees C FOR HIGH TEMPERATURE-40...70 A Degrees C FOR LOW TEMPERATURE
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
