SQUARE D

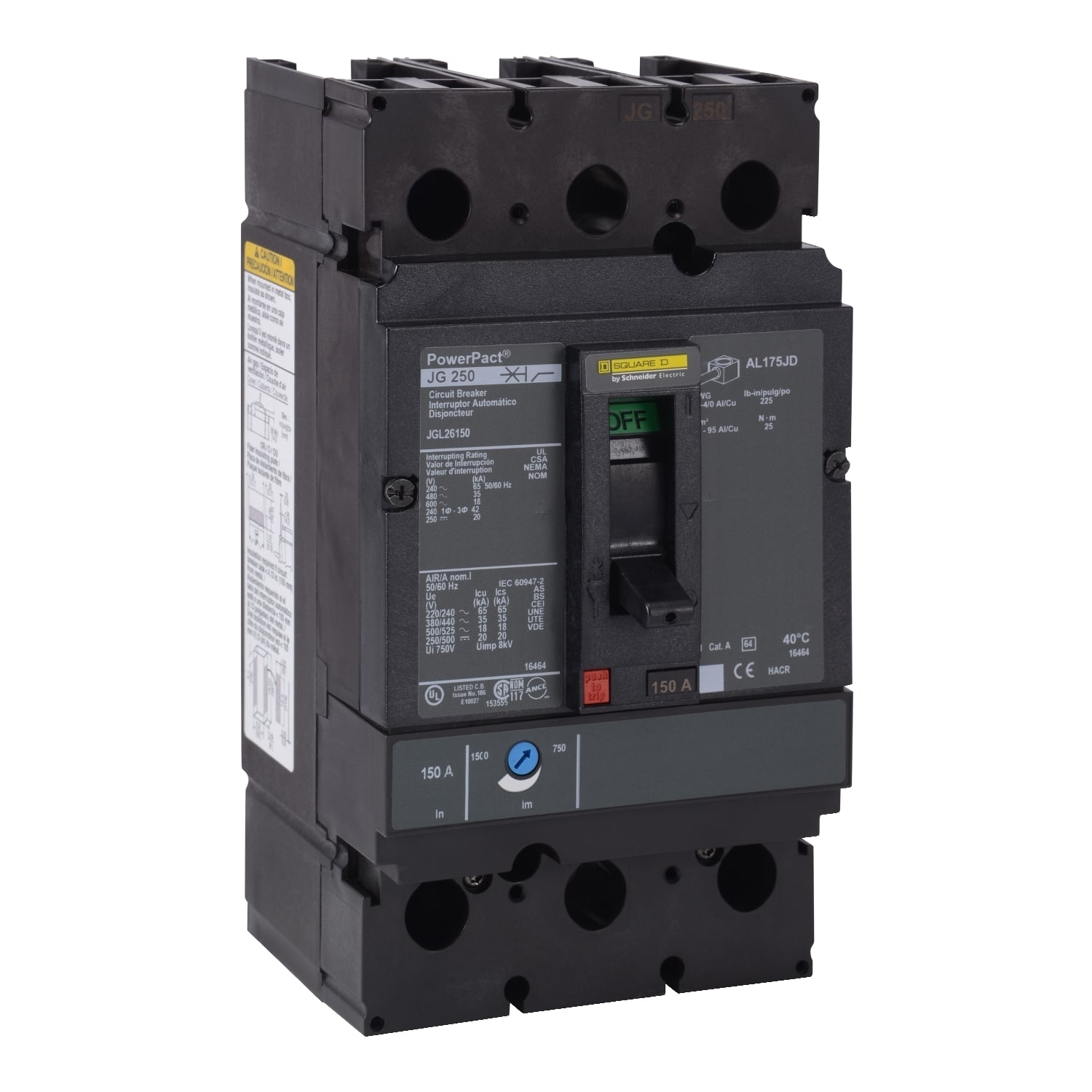

JGL26150 PowerPact Type JGL Molded Case Circuit Breaker, 600 V AC/250 V DC, 150 A, 18/20/35/65 kA Interrupt, 2 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
JGL26150
UPC:
785901883753
Item #:
201641

Availability

Location Available Qty
Available Available to Order
$5,219.50 each

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JGL26150
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Distribution
Connection Lugs, line;lugs, load; AWG 4...AWG 4/0 aluminium/copper terminal
Control Toggle
Number of Poles 2
Special Features Modbus;Ethernet
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425589&lang=en-us
UPC 785901883753
GTIN 00785901883753
Item Type Circuit breaker
Trip Type Thermal-magnetic
