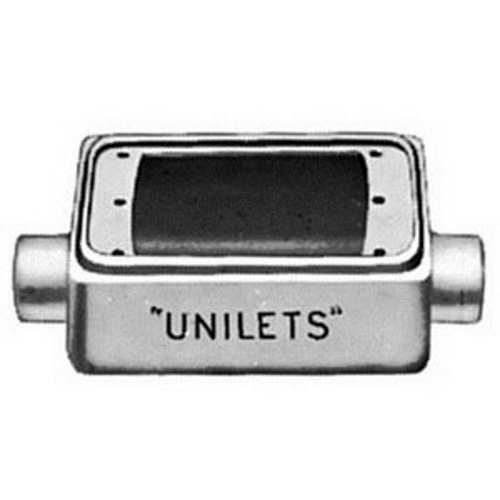

Unilet; FS Shallow Box; 2 Inch Depth, Copper-Free Aluminum, 18 Cubic-Inch, (2) 1/2 Inch Hub
- MFR:
- Appleton Electric
- MFR #:
- FSC150A
- UPC:
- 781381343503
- Item #:
- 201108
Unilet; FS Shallow Box; 2 Inch Depth, Copper-Free Aluminum, 18 Cubic-Inch, (2) 1/2 Inch Hub
- MFR #:
- FSC150A
- UPC:
- 781381343503
- Item #:
- 201108
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$82.25
each
UNILETS FSC Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 2, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 1/2 IN, Cable Entry: (2) 1/2 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81
Manuals and Documentation
Features
- Dimension: 2.810 Inch Width x 2 Inch Depth x 5.880 Inch Height
- Boxes have ridge top construction for positive cover, gasket, box
- Accurately tapped, tapered threads for tight, rigid joints, ground continuity; smooth, rounded integral bushing in each hub protects conductor insulation
- Serve as pull boxes for conductors
- Permit access to conductors for maintenance
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
| Catalog Number | FSC150A |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Cable Entry | (2) 1/2 IN Hub |
| Cubic Capacity | 25 CU IN |
| Knockouts | No |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381343503 |
| GTIN | 00781381343503 |
| Item Type | FSC Shallow Depth 1-Gang Cast Device Box |
| Length | 7.0000 |
| Length UOM | Inch |
| Width | 5.1000 |
| Width UOM | Inch |
| Height | 4.0000 |
| Height UOM | Inch |
| Weight | 0.690 |
| Weight UOM | Pounds |
| Size | 1/2 |
