Bussmann

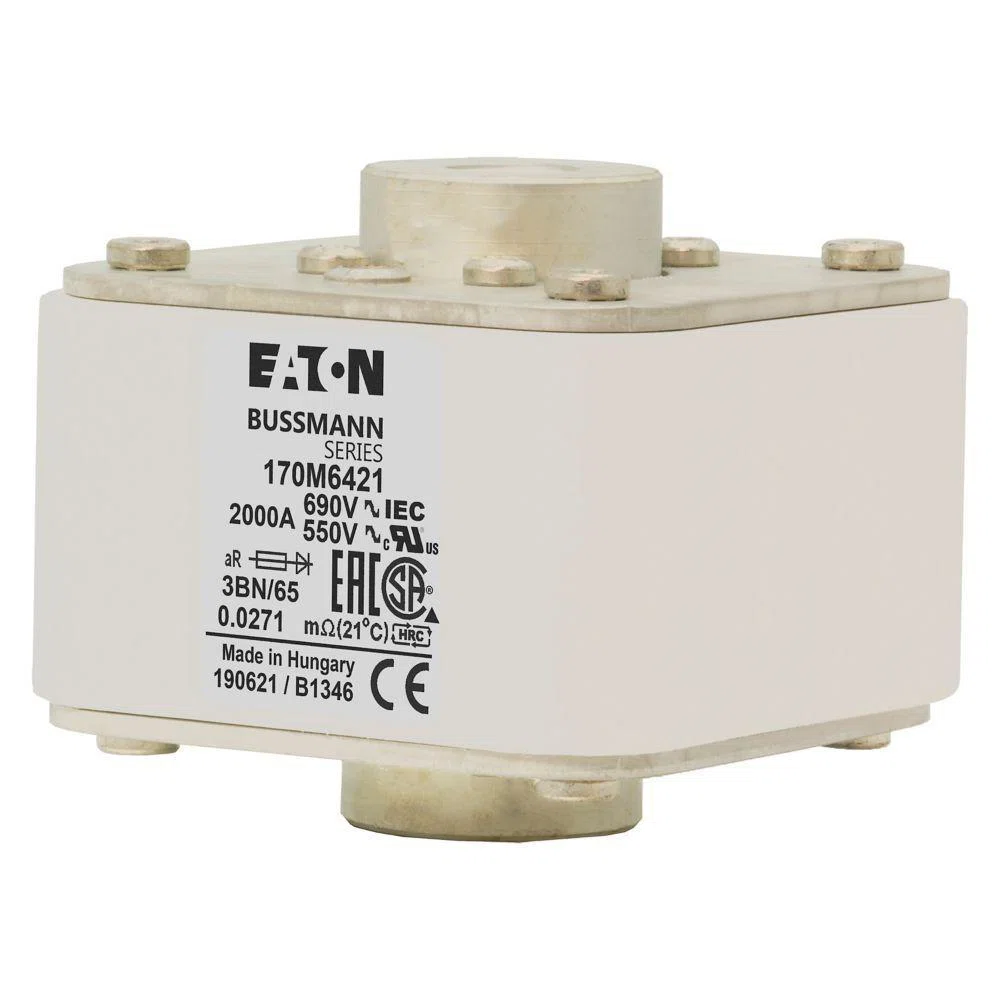

170M6421 Type B High Speed Fuse, 2000 A, 550 V, 200 kA Interrupt, Class: aR, Square Body

MFR:
Eaton
MFR #:
170M6421
UPC:
051712264198
Item #:
201028

Availability

Location Available Qty
Available 42 ea
$2,417.97 each

Eaton’s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.

Manuals and Documentation

Features

  • Excellent DC performance
  • Low arc voltage and low energy let-through
  • Low wattage loss
  • Superior cycling capability
  • Designated size 3
Manufacturer Part Number 170M6421
Brand Bussmann
Manufacturer Eaton
UPC 051712264198
Country Of Origin HU
Amperage Rating 2000 A
Material Ceramic
Mounting Type Flush
Series 170M
Type Type B
Voltage Rating 550 V
Alternative Part Number 10510340
Manufacturer Item Status Active
Country USA
Standards Approvals UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Marquage CE,Conformité RoHS
Application Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
Body Size 53 mm L x 76 mm W x 92 mm H
Body Type Square
Class aR
Frequency Rating 45 to 1000 Hz
Indicating Non Indicating Non-Indicating
Interrupt Rating 200 kA
Terminal Type Blade
