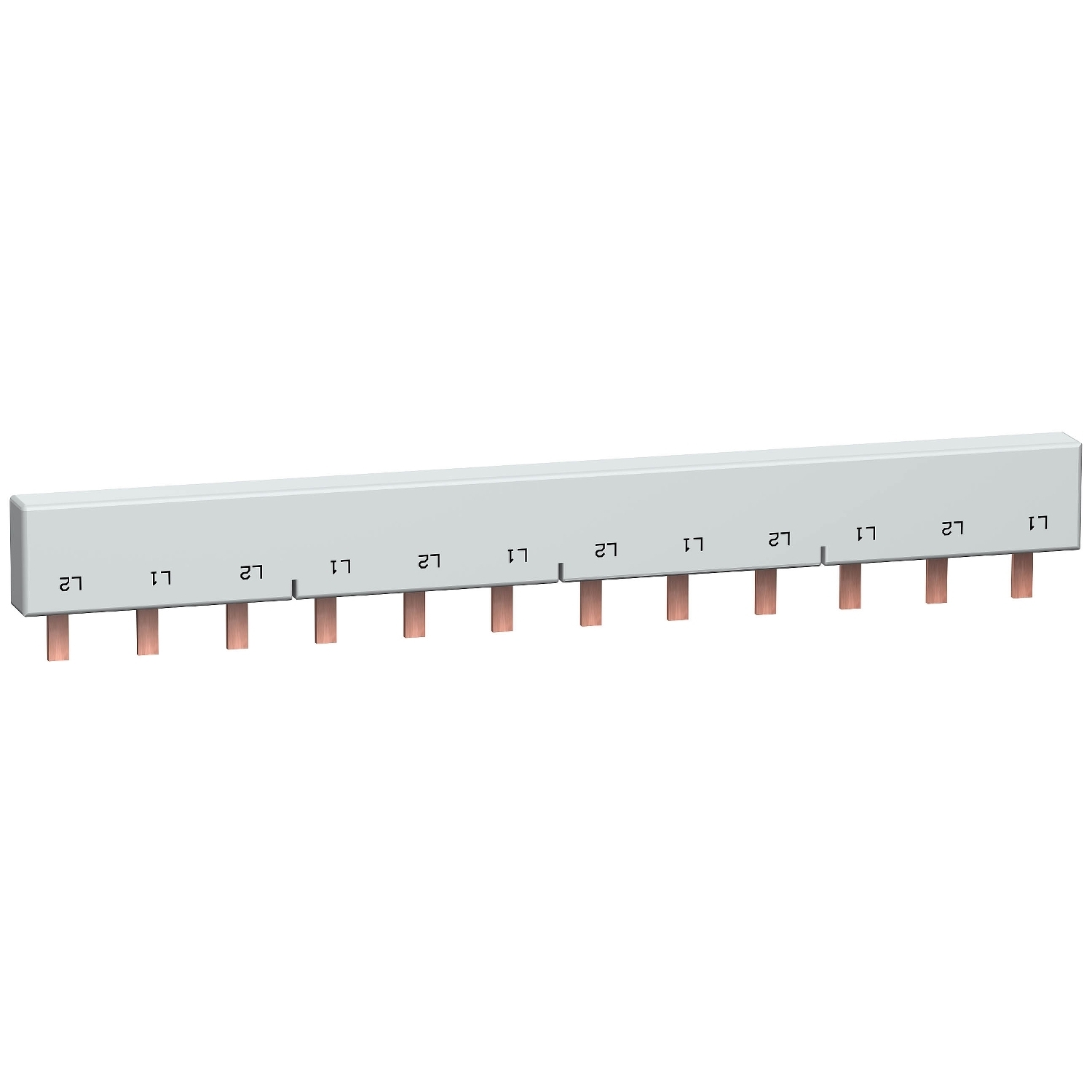

10285 Insulated Combination Busbar, For Use With Multi 9, Multi 9 C60 and C60SP Miniature Circuit Breaker, 12-Pole 1-Phase, 277/480 V AC, 100 A, Light Gray
- MFR:
- Schneider Electric
- MFR #:
- 10285
- Item #:
- 200387
10285 Insulated Combination Busbar, For Use With Multi 9, Multi 9 C60 and C60SP Miniature Circuit Breaker, 12-Pole 1-Phase, 277/480 V AC, 100 A, Light Gray
- MFR #:
- 10285
- Item #:
- 200387
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
$66.05
each
This Multi9 product is a comb busbar 12 modules. It is dedicated to (Line) installations. The distribution type is 1L. It is insulated and uncuttable. It is a set of 1 device. It is suitable for 12 devices (1P). This comb busbar is compatible with Multi9 C60SP devices. The total number of modules of 18mm is 12. The Ue rated operational voltage is 277VAC (phase to neutral) and 480VAC (phase to phase). The Ui rated insulation voltage is 690VAC. Its width is 216mm. The color is light grey (RAL 7035). The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960C within 30s.
Manuals and Documentation
| Catalog Number | 10285 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| Connector Type | tooth |
| Insulation | Insulated |
| Standard | EN/IEC 61439-1;UL 1077 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=813752&lang=en-us |
| GTIN | 03303430102854 |
| Item Type | Comb busbar |
| Width | 8.50390 |
| Width UOM | Inch |
| Voltage Rating | 277 V AC Ph/N;480 V AC Ph/Ph |
| Cross Reference Products | Merlin MG10285 |
